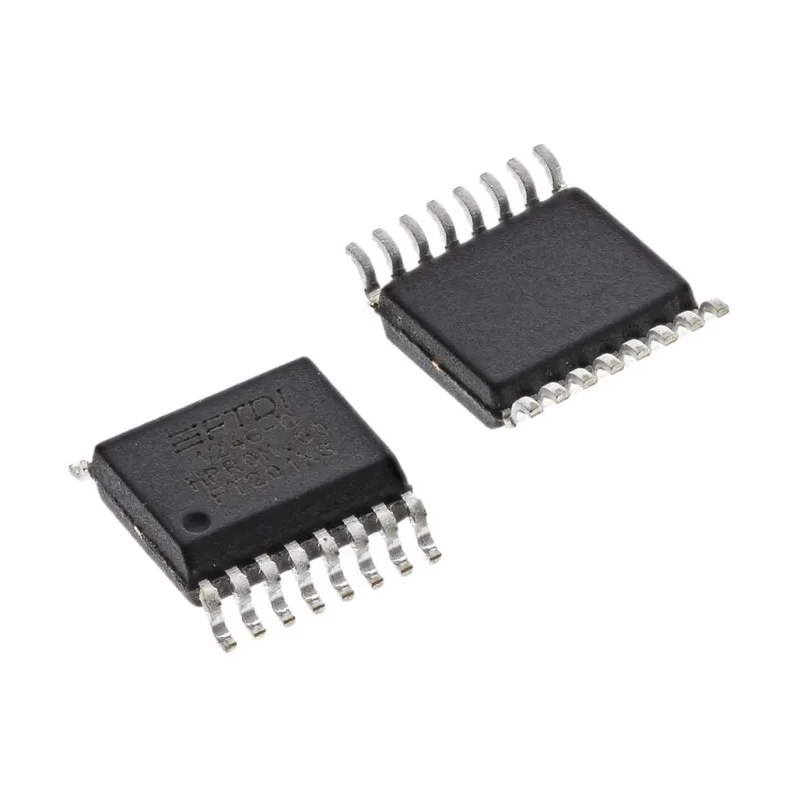

FTDI Chip UART SIE, UART 16-Pin SSOP FT201XS-R

FTDI Chip FT201XS-R UART 16-Pin SSOP is a specialized semiconductor interface IC designed for applications requiring efficient UART and SIE communication protocols. Featuring a single-channel UART interface with 512 bit FIFO buffers for both transmit and receive, it supports a maximum data rate of 3.4 Mbps ensuring high-speed serial data transfer.

The device is packaged in a compact 16-pin SSOP surface mount form factor with a length of 6.19 mm and height of 1.75 mm. It operates reliably in a wide temperature range from -40°C up to 85°C, making it suitable for industrial environments. Operating voltage ranges from 3.3 V minimum to 5 V maximum provide compatibility with various power management systems.

This IC plays a key role as a Full-Speed USB 2.0 to I²C bridge, facilitating rapid development and integration of USB interfaces into embedded systems through an I²C bus. The low power consumption of around 8 mA aids in energy-efficient designs, particularly important for portable or battery-powered industrial and laboratory equipment.

Applications for the FT201XS-R include industrial automation, production machinery, embedded controllers, and communication devices that require USB-enabled serial connectivity. Its robust operating parameters and standardized package ensure reliability in demanding environments.

Single channel UART interface for serial communication. 512 bit Transmit and Receive FIFO ensures smooth data handling. Surface mount 16-pin SSOP packaging for compact PCB designs. Reliable operation from -40°C to 85°C across industrial temperature range.

Low power consumption supports energy-efficient applications. Full-Speed USB 2.0 to I²C bridge functionality for easy integration. Supports maximum data rate up to 3.4 Mbps for high-speed communication. Flexible supply voltage range from 3.3 V to 5 V.

Compact dimensions enable space-saving designs.

This FTDI Chip product is ideal for laboratory instrumentation, embedded system design, industrial communications, and manufacturing automation requiring reliable UART to USB bridging. Explore further compatible products and technical resources on EnvMart for comprehensive solutions in semiconductor interface ICs.
