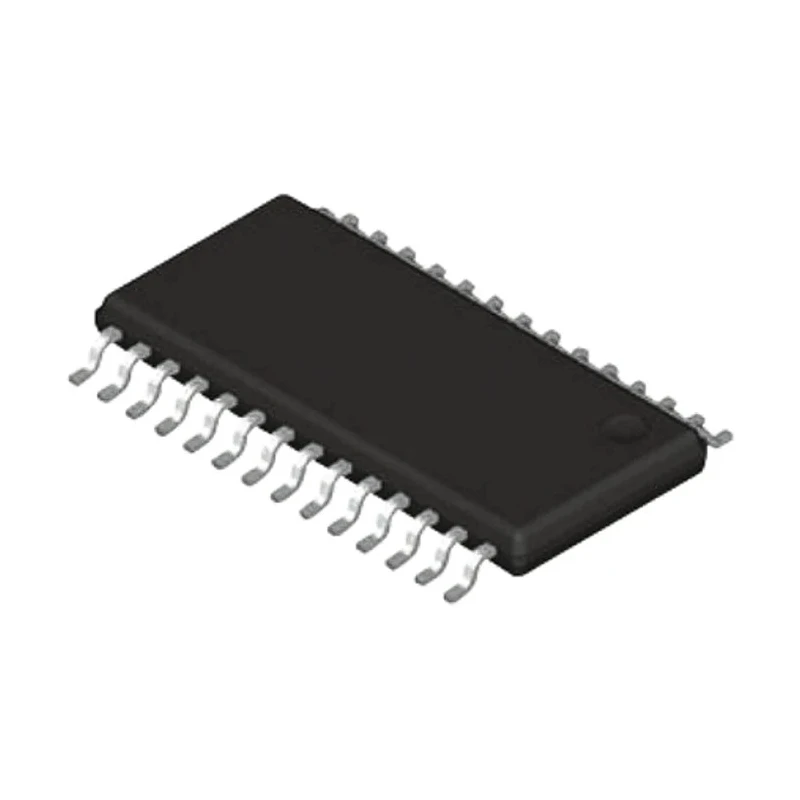

NXP 2-Channel UART, IrDA Interface IC, 28-Pin TSSOP SC16IS762IPW,112
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 1.1mm |
| Length | 9.8mm |
| Model | SC16IS762IPW,112 |
| Mount Type | Surface |
| Maximum Operating Temperature | 95°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 2.5V |
| Maximum Data Rate | 5Mbps |
| Standard Supported | UART, IrDA |
| Transmit FIFO | 64bit |
| Receive FIFO | 64bit |
Key Features
- Supports 2 independent UART channels for versatile communication.
- Transmit and receive FIFOs of 64-bit depth ensure efficient data buffering.
- Operates up to a maximum data rate of 5 Mbps for high-speed transmission.
- Designed for surface mount technology with 28-pin TSSOP packaging.
- Wide operating voltage range from 2.5V to 3.3V for flexible integration.
- Wide temperature range operation from -40°C to 95°C suitable for industrial environments.
- Compact dimensions with a length of 9.8mm and height of 1.1mm facilitate space-saving PCB designs.
- Universal Asynchronous Receiver/Transmitter compatible with UART and IrDA standards.
Product Description
NXP SC16IS762IPW,112 2-Channel UART Interface IC delivers dependable asynchronous and synchronous serial communication across UART and IrDA standards. This interface IC is packaged in a surface mount 28-pin TSSOP form factor, measuring 9.8mm in length and 1.1mm in height, suitable for compact electronic assemblies.
It supports two independent UART channels with 64-bit depth transmit and receive FIFOs, enabling efficient data handling and eliminating data loss during high-speed communication. The maximum data rate of 5 Mbps allows fast and reliable transmission suitable for a variety of applications.
Operating voltage ranges from 2.5V minimum to 3.3V maximum, allowing compatibility with a wide range of power supplies. The device functions reliably in harsh conditions with a temperature rating from -40°C to 95°C, making it suitable for industrial, embedded systems, and telecommunications applications.
This UART interface is commonly used for serial communication protocols including EIA, RS-232, RS-422, and RS-485, facilitating modem data transmission with modulation and demodulation functions.
Supports 2 UART channels to connect multiple serial devices simultaneously. 64-bit transmit and receive FIFO buffers enhance data integrity and throughput. Maximum data rate of 5 Mbps allows control of high-speed serial communications.
Surface-mount TSSOP packaging optimizes board space usage and improves mounting efficiency. Wide operating voltage range and temperature tolerances ensure robustness in varied environments. Compatible with universal asynchronous and synchronous communication standards.
The NXP SC16IS762IPW,112 is an essential semiconductor component for industrial, laboratory, and telecommunications equipment where reliable, fast UART communication is required. Its compact size and extended operating conditions make it suitable for embedded systems, networking hardware, and communication modules.
Explore NXP interface ICs and UART components on EnvMart for industrial and technical applications, choosing from a wide range of semiconductor devices designed for high performance and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of the SC16IS762IPW,112 is 5 Mbps, allowing for high-speed data transmission.
This model operates within a voltage range of 2.5V to 3.3V, providing flexibility for various power supply configurations.
It supports 2 independent UART channels, enabling simultaneous connections to multiple serial devices.
The SC16IS762IPW,112 has a length of 9.8mm and a height of 1.1mm, making it suitable for compact PCB designs.
This interface IC is packaged in a surface mount 28-pin TSSOP form factor, optimizing board space usage.
It operates reliably in a temperature range from -40°C to 95°C, suitable for industrial environments.
Both the transmit and receive FIFOs have a depth of 64 bits, enhancing data integrity and throughput during communication.
It is compatible with UART and IrDA standards, facilitating versatile communication protocols.
This model is suitable for industrial, laboratory, and telecommunications applications where reliable UART communication is required.
The SC16IS762IPW,112 features a pin count of 28, which is standard for its packaging type.
This interface IC is designed for surface mounting, which improves mounting efficiency on PCBs.
The country of origin for this model is India.
