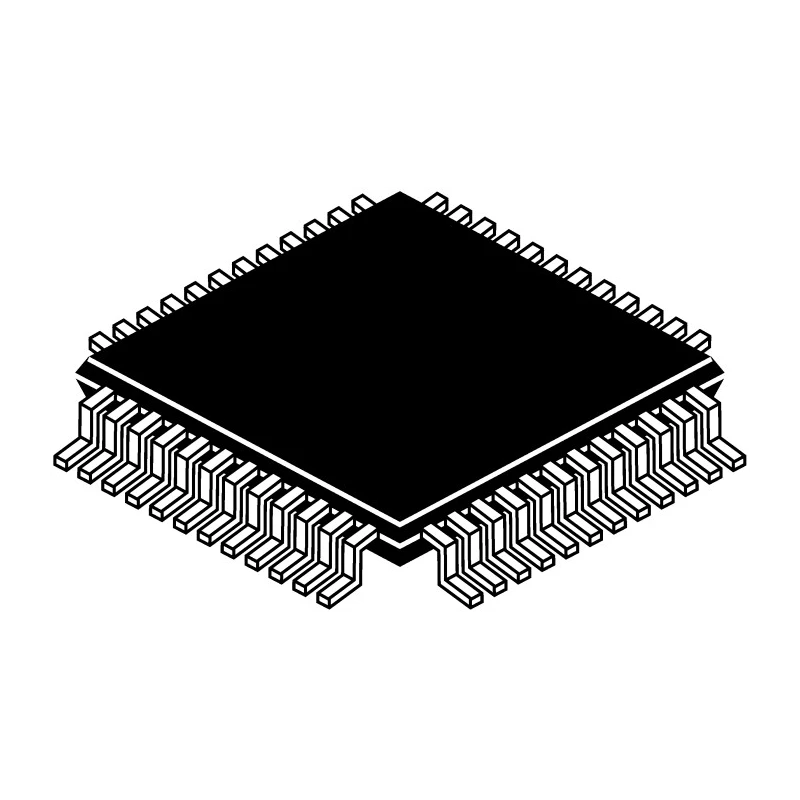

MaxLinear 2-Channel UART RS485, RS232 Interface IC 48-Pin TQFP ST16C2550IQ48-F

Free Delivery in India | Lowest Global Shipping Charges

MaxLinear 2-Channel UART RS485, RS232 Interface IC 48-Pin TQFP ST16C2550IQ48-F

Name: MaxLinear 2-Channel UART RS485, RS232 Interface IC 48-Pin TQFP ST16C2550IQ48-F
Brand: MaxLinear
SKU: 395492
Price: 10.55 USD
Availability: InStock



Category UART Brand MaxLinear Condition New

Specifications

Country of Origin	India
Brand	MaxLinear
Height	1.2mm
Length	9.2mm
Model	ST16C2550IQ48-F
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	TQFP
Minimum Operating Temperature	-40°C
Number Of Channels	2
Pin Count	48
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.97V
Maximum Data Rate	4Mbps
Standard Supported	RS485, RS232
Transmit FIFO	16bit
Receive FIFO	16bit

Key Features

Supports 2 UART channels for simultaneous communication.
Compatible with RS485 and RS232 communication standards.
16-bit transmit and receive FIFO buffers optimize data flow.
Maximum data rate of 4 Mbps for high-speed serial data transmission.
Surface mount package type TQFP with 48 pins for compact PCB integration.
Operating voltage range from 2.97 V to 5.5 V ensuring wide compatibility.
Wide operating temperature range from -40°C to 85°C for robustness in industrial environments.
Compact device length of 9.2 mm and height of 1.2 mm suitable for space-constrained designs.

Product Description

The MaxLinear ST16C2550IQ48-F is a Universal Asynchronous Receiver/Transmitter (UART) designed for robust serial communication applications supporting RS485 and RS232 protocols. This interface IC features two UART channels allowing concurrent data transmissions, enhancing communication efficiency in embedded systems and industrial automation.

Equipped with 16-bit FIFO buffers on both transmit and receive paths, it ensures optimized data flow and reduces processor overhead. The device achieves a maximum data rate of 4 Mbps, suitable for high-speed serial data exchange in communication networks.

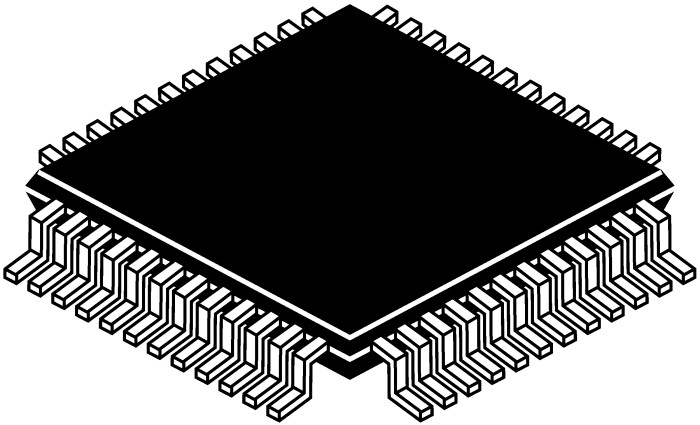

The ST16C2550IQ48-F uses a 48-pin TQFP surface mount package, providing a compact footprint ideal for modern PCB layouts. Its wide supply voltage range from 2.97 V to 5.5 V accommodates various power supply environments. The operational temperature range spanning from -40°C to 85°C makes it suitable for harsh industrial and manufacturing conditions.

This UART IC supports common communication standards including RS485 and RS232, widely used in industrial control systems, telecommunications equipment, and data acquisition systems. Its absence of specialized automotive or regulatory approvals indicates it targets general industrial and electronic applications.

Designed for developers and engineers working on embedded communication solutions, the ST16C2550IQ48-F contributes to reliable and efficient serial data transmission for industrial, laboratory, manufacturing, and commercial use cases.

Supports 2 UART channels with RS485 and RS232 standards. 16-bit FIFO transmit and receive buffers for optimized data handling. Operates up to 4 Mbps data rate suitable for high-speed communications. Compact 48-pin TQFP surface mount package for efficient PCB integration.

Wide supply voltage and temperature range for industrial applications. Explore additional MaxLinear semiconductor components and interface ICs at EnvMart for enhanced electronics and communication system designs.
