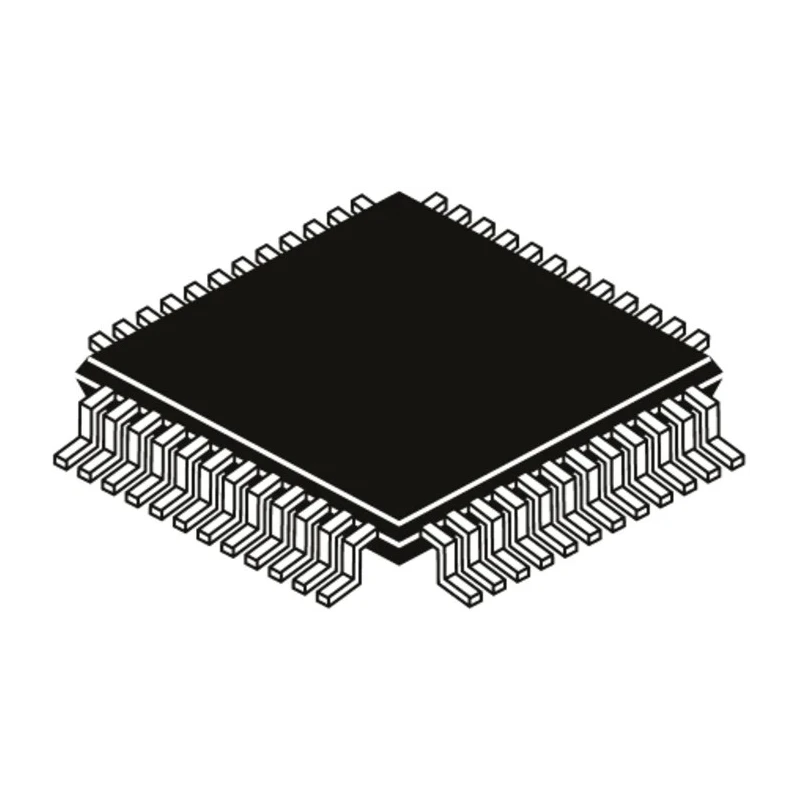

MaxLinear 2-Channel UART RS422, RS485, IrDA 48-Pin TQFP Interface IC XR16L2750CM-F
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | MaxLinear |
| Height | 1.2mm |
| Length | 9.2mm |
| Model | XR16L2750CM-F |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Package Type | TQFP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 48 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Maximum Data Rate | 6.25Mbps |
| Standard Supported | RS422, RS485, IrDA |
| Transmit FIFO | 64bit |
| Receive FIFO | 64bit |
Key Features
- Supports RS422, RS485, and IrDA communication standards.
- Features 64-bit Transmit and Receive FIFO buffers for efficient data handling.
- Maximum data rate of 6.25 Mbps enables high-speed serial communication.
- Operates within supply voltage range of 2.5V to 5.5V ensuring flexible power requirements.
- Designed for surface mount with TQFP package and 48 pins for compact PCB integration.
- Wide operating temperature range from 0°C to 70°C to suit diverse environments.
- Physical dimensions include a length of 9.2 mm and height of 1.2 mm.
- Universal Asynchronous Receiver/Transmitter functionality for serial data transmission.
Product Description
MaxLinear XR16L2750CM-F is a high-performance 2-Channel UART (Universal Asynchronous Receiver/Transmitter) Interface IC supporting RS422, RS485, and IrDA standards. Packaged in a compact 48-Pin TQFP surface mount format, it facilitates reliable and efficient serial communication for embedded and industrial electronic systems.
Featuring 64-bit FIFO buffers for both transmit and receive operations, the device efficiently manages data flow and minimizes CPU load. It supports maximum data rates up to 6.25 Mbps, enabling high-speed communication suitable for demanding applications.
The chip operates comfortably within a supply voltage range of 2.5V to 5.5V and functions reliably in ambient temperatures from 0°C to 70°C. Its length is 9.2 mm with a height of 1.2 mm, allowing for space-saving designs on printed circuit boards.
This interface IC is ideal for various use cases including industrial automation, embedded system communication, and serial interface expansion in networking or instrumentation equipment. It provides an effective solution for UART-based asynchronous serial communication tasks, supporting standards widely used in industry such as RS422 and RS485 for differential signaling, as well as IrDA for infrared data transfer.
Supports RS422, RS485, and IrDA communication protocols. 64-bit FIFO for transmit and receive buffers. Up to 6.25 Mbps maximum data rate. Surface mount TQFP package with 48 pins. Wide supply voltage range: 2.5V to 5.5V. Operating temperature range: 0°C to 70°C.
Compact size: 9.2 mm length by 1.2 mm height. Universal UART functionality for asynchronous data transmission. Manufactured in Indonesia, product condition new.
Choose this MaxLinear UART interface IC for robust, high-speed data communications in industrial and embedded electronic applications. Explore more high-quality Interface ICs within the semiconductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports RS422, RS485, and IrDA communication standards, making it versatile for various applications.
The maximum data rate is 6.25 Mbps, allowing for high-speed serial communication.
It operates within a supply voltage range of 2.5V to 5.5V, providing flexibility for different power requirements.
The dimensions of the XR16L2750CM-F are 9.2 mm in length and 1.2 mm in height, suitable for compact PCB designs.
It features 2 channels, enabling simultaneous communication for multiple data streams.
This model is designed for surface mounting, which is ideal for compact electronic assemblies.
It can operate in ambient temperatures ranging from 0°C to 70°C, making it suitable for diverse environments.
It includes 64-bit FIFO buffers for both transmit and receive operations, enhancing data handling efficiency.
The package type is TQFP, which consists of 48 pins for compact integration on printed circuit boards.
This interface IC is suitable for industrial automation, embedded system communication, and serial interface expansion in networking or instrumentation equipment.
It is manufactured in Indonesia, ensuring compliance with regional manufacturing standards.
Yes, it provides universal UART functionality for asynchronous data transmission, making it versatile for various serial communication tasks.
