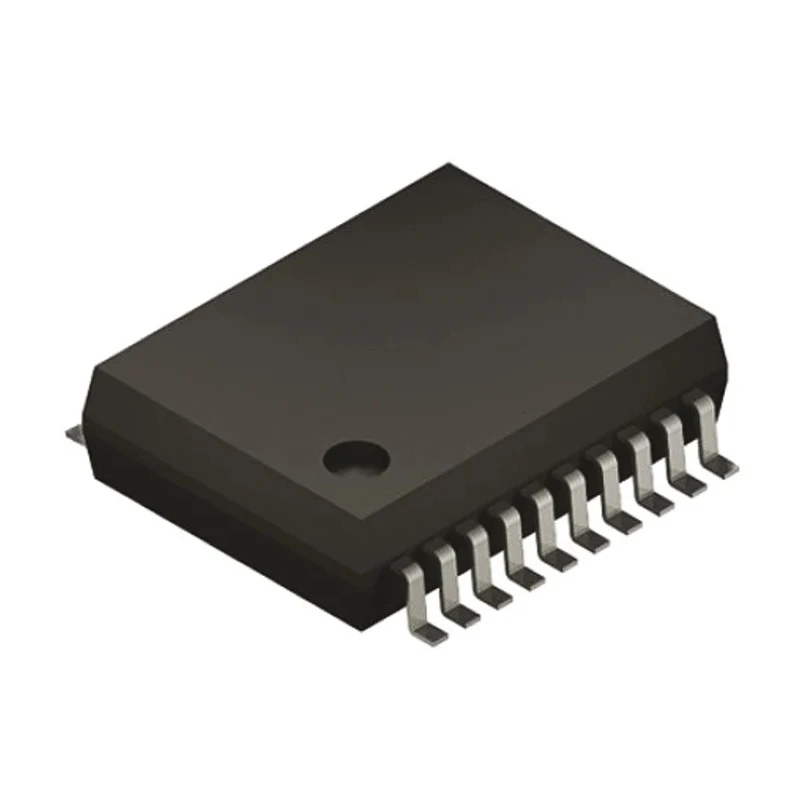

Microchip USB to SPI Bridge 20-Pin SSOP MCP2210-I/SS Surface Mount 3.3-5.5V Supply 12Mbps Data Rate MCP2210-I/SS

Free Delivery in India | Lowest Global Shipping Charges

Microchip USB to SPI Bridge 20-Pin SSOP MCP2210-I/SS Surface Mount 3.3-5.5V Supply 12Mbps Data Rate MCP2210-I/SS

Name: Microchip USB to SPI Bridge 20-Pin SSOP MCP2210-I/SS Surface Mount 3.3-5.5V Supply 12Mbps Data Rate MCP2210-I/SS
Brand: Microchip
SKU: 378178
Price: 3.83 USD
Availability: InStock



Category Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.85mm
Length	7.5mm
Model	MCP2210-I/SS
Width	5.6mm
Mount Type	Surface
Series	MCP2210
Maximum Operating Temperature	85°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Standards/Approvals	AEC-Q100, USB 2.0
Pin Count	20
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3.3V
Supply Current	13mA
Maximum Data Rate	12Mbps
Number of Transceivers	1
Number of Receivers	1
Number of Transmitters	1
Transmitter Signal Type	Single Ended
Interface Standards	USB 2.0

Key Features

Surface mount package designed as 20-pin SSOP for compact PCB integration.
Operates within a wide supply voltage range from 3.3V to 5.5V suitable for diverse applications.
Supports single-ended transmitter and receiver signals enabling efficient data communication.
Equipped with one transmitter, one receiver, and one transceiver for comprehensive functionality.
Certified under automotive standard AEC-Q100 ensuring robust automotive compatibility.
Designed for operation between -40°C and 85°C to withstand harsh industrial environments.
Low supply current consumption at 13mA aiding in power-sensitive system designs.
Package dimensions of 7.5mm length, 5.6mm width, and 1.85mm height optimize board space usage.

Product Description

Microchip MCP2210-I/SS is a USB to SPI bridge integrated circuit in a 20-pin SSOP surface mount package. It operates under USB 2.0 interface standards and supports a maximum data transfer rate of 12Mbps, making it suitable for efficient serial communication bridging in embedded systems.

This device features a single transmitter, receiver, and transceiver, all of which utilize single-ended signal types. It functions reliably over a supply voltage range from 3.3V minimum to 5.5V maximum, with a typical current consumption of 13mA. Its compact form factor measures 7.5mm in length, 5.6mm in width, and 1.85mm in height, facilitating easy incorporation into constrained PCB layouts.

Equipped with automotive grade AEC-Q100 certification, the MCP2210-I/SS is engineered for automotive and industrial applications requiring high reliability and robustness. Operating temperature ranges from -40°C up to 85°C, ensuring performance in harsh environmental conditions.

This USB to SPI bridge IC is widely utilized in industrial controls, data acquisition systems, automotive diagnostics, and embedded USB communication devices. Its surface mount package type and industry standards compliance make it a dependable option for modern electronics design.

Surface mount design optimized for automated PCB assembly. Supports USB 2.0 standard for broad compatibility and stable data transfer. Wide supply voltage and operating temperature ranges support diverse application needs.

Low power consumption suitable for battery-powered or energy-efficient devices. Automotive qualification ensures reliability in safety-critical systems. Compact SSOP package saves printed circuit board space and reduces footprint.

High data transfer rate supports rapid communication between USB hosts and SPI peripherals. Comprehensive functionality with single transmitter, receiver, and transceiver for versatile interface solutions. Explore more Interface ICs and semiconductors at EnvMart for industrial and embedded system design needs.
