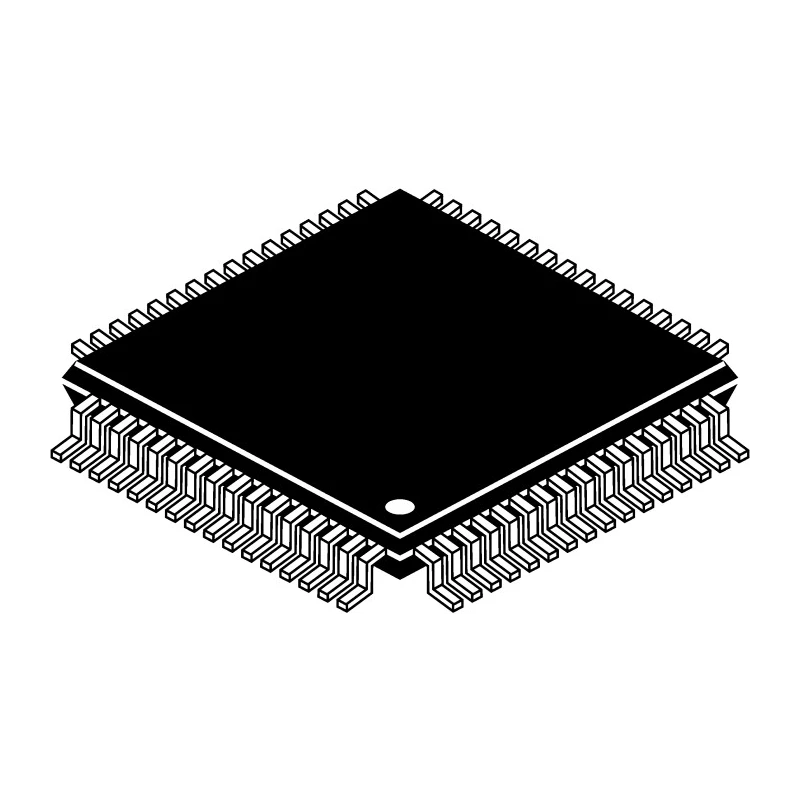

MaxLinear 4-Channel UART 64-Pin LQFP Serial Interface IC ST16C554DIQ64-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.6mm |
| Length | 12mm |
| Model | ST16C554DIQ64-F |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Pin Count | 64 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.97V |
| Maximum Data Rate | 1.5Mbps |
| Transmit FIFO | 16bit |
| Receive FIFO | 16bit |
Key Features
- Supports 4 independent UART channels for versatile communication interfaces.
- Includes 16-bit Transmit and Receive FIFOs to manage serial data buffering effectively.
- Operates at maximum data rate of 1.5 Mbps suitable for high-speed data transmission.
- Surface-mount LQFP package with 64 pins provides compact integration.
- Wide operating voltage range from 2.97V to 5.5V ensuring compatibility with various systems.
- Operating temperature range from -40°C to 85°C suitable for industrial environments.
- Compact dimensions with 12mm length and 1.6mm height enabling space-saving design.
- No automotive or industry-specific approvals, designed for general purpose UART use.
Product Description
MaxLinear ST16C554DIQ64-F is a 4-channel Universal Asynchronous Receiver/Transmitter (UART) integrated circuit designed for serial communication applications. This 64-pin LQFP package IC supports communication protocols commonly used in conjunction with standards such as EIA, RS-232, RS-422, and RS-485, enabling modulation and demodulation of serial data signals in various electronic designs.
The device features 16-bit Transmit and Receive FIFOs, which help efficiently manage serial data transfer and buffering. It supports a maximum data rate of 1.5 Mbps, allowing for fast and reliable data transmission. The surface mount LQFP package facilitates compact and repeatable mounting on printed circuit boards.
Powered by a supply voltage range of 2.97V to 5.5V, with an operating temperature range of -40°C to 85°C, this IC is suitable for use in extended temperature industrial and commercial environments. With physical dimensions of 12mm in length and 1.6mm in height, it is well-suited for space-constrained applications.
The ST16C554DIQ64-F is ideal for integrating asynchronous serial communication capabilities into embedded systems, interfaces for CPUs and microcontrollers, modems, and other industrial or telecommunications equipment requiring robust UART functionality.
Supports 4 independent UART channels for flexible serial communication. Includes 16-bit Transmit and Receive FIFOs for data buffering. Max data rate of 1.5 Mbps ensuring high-speed communication. Surface mount 64-pin LQFP package optimized for PCB integration.
Operates between 2.97V and 5.5V supply voltages. Wide operating temperature range from -40°C to 85°C suitable for industrial use. Compact dimensions: 12mm length and 1.6mm height. No specific automotive or industrial standards certifications.
This UART interface IC by MaxLinear is suitable for wide applications including embedded system communications, industrial automation, telecommunications, and data acquisition systems. It supports reliable and high-speed serial data transfer, improving overall system performance.
Discover quality communication ICs like the ST16C554DIQ64-F by browsing more Interface ICs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 1.5 Mbps, allowing for high-speed data transmission.
It supports 4 independent UART channels for versatile communication interfaces.
This unit operates within a supply voltage range of 2.97V to 5.5V, ensuring compatibility with various systems.
The dimensions of this model are 12mm in length and 1.6mm in height, making it suitable for space-constrained applications.
It comes in a surface-mount LQFP package with 64 pins, optimized for PCB integration.
The operating temperature range is from -40°C to 85°C, suitable for industrial environments.
Yes, it includes 16-bit Transmit and Receive FIFOs to manage serial data buffering effectively.
It is suitable for applications in embedded systems, industrial automation, telecommunications, and data acquisition systems.
It supports communication protocols commonly used with standards such as EIA, RS-232, RS-422, and RS-485.
The country of origin for this integrated circuit is India.
This model features a surface mount type, facilitating compact and repeatable mounting on printed circuit boards.
This integrated circuit does not have specific automotive or industry-specific approvals; it is designed for general-purpose UART use.
