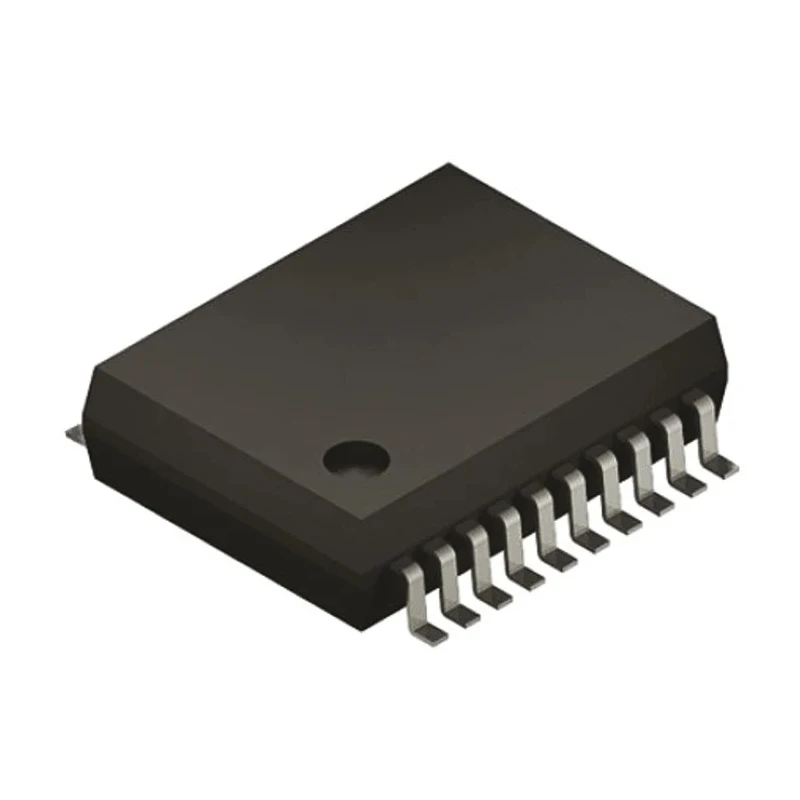

MaxLinear Multiprotocol Transceiver 20-Pin SSOP Surface Mount, 3-5.5V Supply, 2.5mA Current, XR3160EIU-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.85mm |
| Length | 7.5mm |
| Model | XR3160EIU-F |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | XR3160 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 2.5mA |
| Transmitter Signal Type | Differential |
| Interface Standards | EIA/TIA485 |
Key Features
- Supports RS-232, RS-422, and RS-485 serial communication protocols.
- Compact surface mount SSOP package with 20 pins for easy PCB integration.
- Operating temperature range from -40°C to +85°C suitable for industrial applications.
- Compliant with RoHS environmental standards for safe usage.
- Interface standard EIA/TIA485 ensuring compatibility with common serial standards.
- Low supply current consumption optimizes power efficiency in embedded systems.
- Designed without automotive standard compliance, ideal for industrial and process control equipment.
- Versatile use in industrial computers, building security, and automation systems.
Product Description
MaxLinear XR3160EIU-F is a multiprotocol transceiver designed for differential signal transmission conforming to RS-232, RS-422, and RS-485 standards. This component comes in a 20-pin SSOP surface mount package, featuring a supply voltage range of 3 to 5.5 volts and low supply current of 2.5 mA, making it highly efficient for embedded and industrial applications.
Operating reliably in temperature extremes from -40°C to +85°C, the XR3160EIU-F transceiver is RoHS compliant, ensuring it meets current environmental and safety standards. Its compact size of 7.5 mm by 5.6 mm by 1.85 mm enables integration in space-constrained designs.
Typical applications include industrial and single board computers, process control equipment, point-of-sale systems, and building security and automation, supporting multi-protocol serial communication across various industrial environments.
Supports RS-232, RS-422, and RS-485 protocols for flexible serial communication applications. Compact 20-pin SSOP package ensures easy PCB assembly and reliable surface mounting. Wide operating temperature range suitable for harsh industrial conditions.
Low supply current of 2.5 mA reduces power consumption in embedded systems. Complies with EIA/TIA485 interface standard for wide compatibility. RoHS certification guarantees adherence to environmental regulations. Dimensions allow efficient use of space in product design.
Designed for industrial equipment rather than automotive applications. Ideal for use in industrial computing, process control, and automation systems.
This transceiver offers robust performance for industrial-grade serial communication needs. Explore other semiconductor and interface ICs in the EnvMart catalog for complementary components.
Explore more products in our Multiprotocol Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The XR3160EIU-F operates within a temperature range of -40°C to +85°C, making it suitable for harsh industrial environments.
This model supports RS-232, RS-422, and RS-485 serial communication protocols, allowing for versatile applications in various systems.
It has a supply voltage range of 3 to 5.5 volts, which is suitable for a variety of embedded systems.
The supply current consumption is 2.5 mA, optimizing power efficiency in applications.
The dimensions of this component are 7.5 mm in length, 5.6 mm in width, and 1.85 mm in height, allowing for compact PCB integration.
It comes in a 20-pin SSOP surface mount package, facilitating easy assembly on PCBs.
Yes, this model is RoHS compliant, ensuring it meets current environmental and safety standards.
It transmits differential signals, which are essential for reliable communication in industrial applications.
It complies with the EIA/TIA485 interface standard, ensuring compatibility with common serial communication systems.
This transceiver is ideal for use in industrial computers, process control equipment, point-of-sale systems, and building security and automation systems.
The XR3160EIU-F is manufactured in India.
The maximum operating temperature for the XR3160EIU-F is 85°C, suitable for industrial applications.
