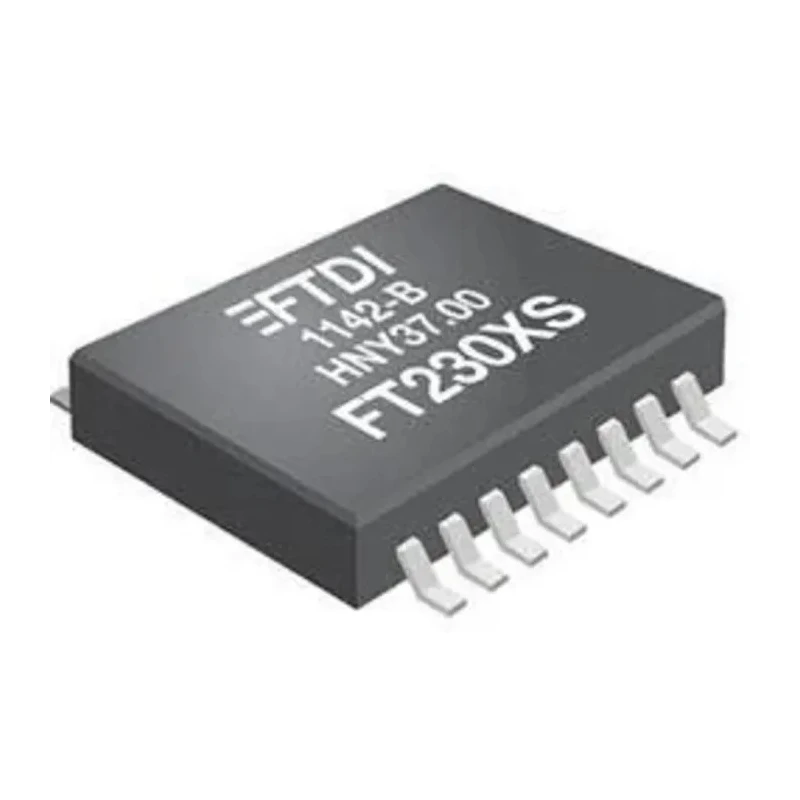

FTDI Chip Multiprotocol Transceiver 16-Pin SSOP USB 2.0 Interface 3.3-5.25V FT230XS-U
Specifications
| Country of Origin | India |
|---|---|
| Brand | FTDI Chip |
| Model | FT230XS-U |
| Mount Type | Surface |
| Series | FT230X |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 3.3V |
| Supply Current | 8mA |
| Maximum Data Rate | 3Mbps |
| Number of Transceivers | 1 |
| Number of Receivers | 1 |
| Number of Transmitters | 1 |
| Interface Standards | USB 2.0 |
| Receiver Signal Type | Ttl |
Key Features
- Supports maximum data rate of 3Mbps enabling fast data transfer.
- Operates over a supply voltage range of 3.3V to 5.25V for flexibility.
- Equipped with 1 transmitter and 1 receiver for full duplex communication.
- Compact 16-pin SSOP surface mount package for easy PCB integration.
- Wide operating temperature range from -40°C to 85°C suitable for industrial applications.
- Integrated MTP memory and clock circuit eliminate need for external crystal.
- Compliant with RoHS standards ensuring environmental safety.
- Supply current is nominally 8mA, supporting low power designs.
Product Description
FTDI Chip FT230XS-U is a multiprotocol transceiver presented in a 16-pin SSOP surface mount package, providing a reliable USB 2.0 interface for serial UART communication. Operating at a maximum data rate of 3Mbps, this device supports single transmitter and receiver channels enabling full-duplex communication.
Designed to operate within a 3.3V to 5.25V supply voltage range, it offers flexibility across various power environments. The integrated MTP memory and clock circuit remove the necessity for external crystal oscillators, reducing component count and simplifying PCB layout.
This transceiver features a transmitter output drive strength configurable between 4mA minimum and 16mA maximum, and the receiver signal type is TTL compatible, facilitating easy integration into embedded systems. It supports asynchronous and synchronous bit-bang modes to accommodate different communication methodologies.
With an operating temperature range spanning from -40°C to 85°C, the FT230XS-U is suitable for demanding industrial, laboratory, and commercial electronics applications. It fully complies with RoHS environmental standards.
Supports maximum data rate of 3Mbps enabling fast data transfer. Operates over flexible supply voltage range from 3.3V to 5.25V. Configured with 1 transmitter and 1 receiver for full-duplex operation. Compact 16-Pin SSOP surface mount package for PCB space efficiency.
Wide temperature range from −40°C to +85°C for industrial use. Integrated MTP memory and clock reduce external components. TTL compatible receiver signal type ensures logic compatibility. Low supply current of 8mA enables power efficient designs.
Compliant with RoHS directive ensuring environmental safety. Ideal for converting USB to basic serial UART interface.
This multiprotocol transceiver is best suited for applications in electronics manufacturing, embedded systems, industrial automation, and USB to UART bridging in commercial and laboratory devices. Its compact SSOP package makes it ideal for surface mount designs requiring efficient space utilization.
Explore additional electronic components and semiconductor solutions to complement your industrial projects on EnvMart.
Explore more products in our Multiprotocol Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FT230XS-U supports a maximum data rate of 3Mbps, enabling fast data transfer.
It operates over a supply voltage range of 3.3V to 5.25V, providing flexibility for various power environments.
This model is equipped with 1 transmitter and 1 receiver, allowing for full-duplex communication.
The operating temperature range for this transceiver spans from -40°C to 85°C, making it suitable for industrial applications.
It comes in a compact 16-pin SSOP surface mount package, which is designed for easy PCB integration.
The nominal supply current is 8mA, supporting low power designs.
Yes, the receiver signal type is TTL compatible, facilitating easy integration into embedded systems.
It is compliant with RoHS standards, ensuring environmental safety.
It supports asynchronous and synchronous bit-bang modes for different communication methodologies.
The country of origin for this transceiver is India.
The transmitter output drive strength is configurable between 4mA minimum and 16mA maximum.
This transceiver is suitable for applications in electronics manufacturing, embedded systems, industrial automation, and USB to UART bridging.
