| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.9mm |
| Length | 1.65mm |
| Model | BAS16TT1G |
| Width | 0.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SC-75 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 75V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 30μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500mA |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 6ns |

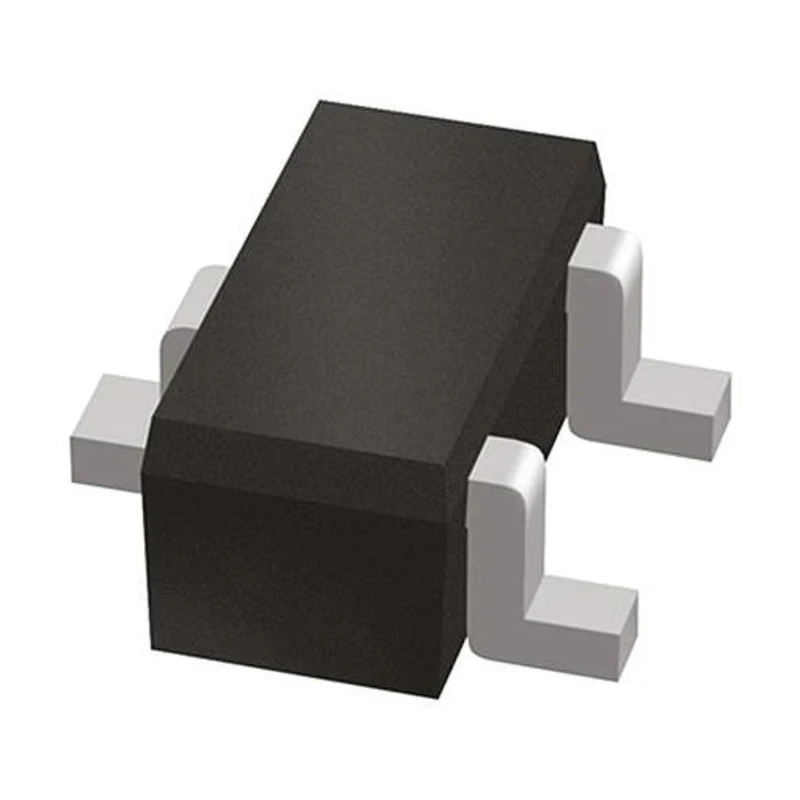

onsemi BAS16TT1G is a high-quality surface mount switching diode housed in a compact 3-pin SC-75 package. Engineered for small signal switching applications, this diode supports a maximum continuous forward current of 200 mA and a peak reverse voltage of 75 V, making it ideal for various electronic semiconductor circuits.
Its low forward voltage drop of 1.25 V and fast recovery time of 6 nanoseconds ensure efficient operation in fast switching environments. The diode operates reliably across a wide temperature range from -55°C up to 150°C, which allows usage in industrial, automotive (note: part is not automotive standard certified), and general electronic assembly applications.
Physical dimensions measuring 1.65 mm in length and 0.9 mm in both width and height contribute to its suitability for densely packed PCB layouts, supporting compact and space-efficient designs. The 3-pin, single diode configuration simplifies installation and integration into electronic assemblies requiring a robust switching diode.
This product is classified under Schottky Diodes & Rectifiers category and serves as a versatile component for semiconductor switching tasks within consumer electronics, industrial controls, and other electrical equipment applications.
Compact SC-75 package suitable for surface mounting applications. Supports maximum continuous forward current of 200 mA. Peak reverse voltage of 75 V ensures reliable blocking capability. Fast switching diode with recovery time of 6 ns.
Maximum forward voltage drop of 1.25 V at rated current. Operating temperature range from -55°C to 150°C for wide environmental suitability. Peak non-repetitive forward surge current rated at 500 mA. Dimensions: length 1.65 mm, width 0.9 mm, height 0.9 mm.
Single diode construction with 3-pin configuration for easy PCB integration. Designed for switching applications and small signal usage. Explore more components in the Schottky Diodes & Rectifiers category for your industrial, laboratory, and manufacturing Semiconductor needs on EnvMart.
