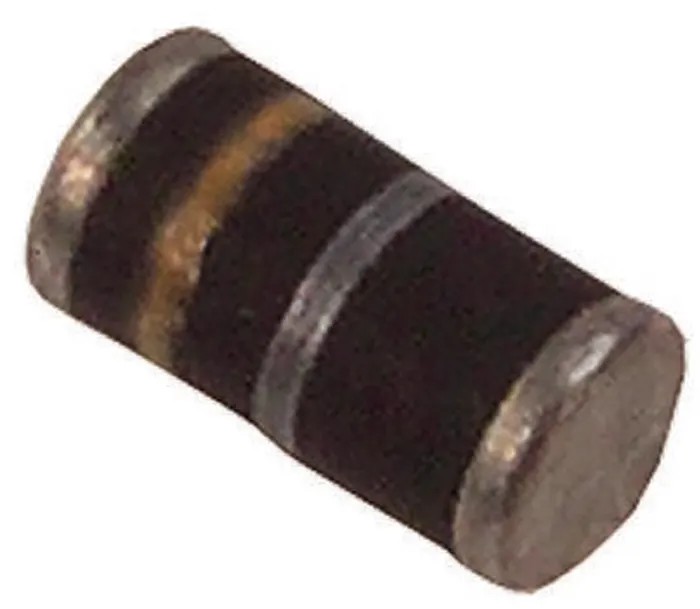

Vishay General Purpose 400 V 1 A Surface Mount Diode 2-Pin DO-213AB BYM10-400-E3/96
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.67mm |
| Brand | Vishay |
| Height | 2.67mm |
| Length | 5.2mm |
| Model | BYM10-400-E3/96 |
| Width | 2.67mm |
| Mount Type | Surface |
| Series | BYM10-xxx |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-213AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
Key Features
- Designed for general purpose power rectification applications.
- Surface mount type for compact PCB integration.
- Maximum continuous forward current rating of 1 ampere.
- Peak reverse repetitive voltage of 400 volts for reliable operation.
- Maximum forward voltage drop of 1.1 volts to enhance efficiency.
- Wide operating temperature range from -65°C to 175°C.
- High surge current capability up to 30 amperes.
- Industry standard 2-pin DO-213AB package with 2.67 mm diameter.
Product Description
Vishay BYM10-400-E3/96 is a standard recovery power diode designed for general purpose applications in power electronics. This diode supports a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 400 volts. It is packaged in the industry-standard DO-213AB 2-pin surface mount package, measuring approximately 5.2 mm in length and 2.67 mm in diameter and width.
The diode exhibits a maximum forward voltage drop of 1.1 volts, making it efficient for power rectification tasks. It also withstands high surge currents up to 30 amperes, ensuring robustness in transient conditions. The operating temperature range from -65°C up to 175°C supports usage in demanding thermal environments.
Typical applications include power supply rectification, electronic component assemblies, and industrial equipment requiring reliable diode performance. The compact surface mount package facilitates PCB space saving and integration into modern electronic devices.
Designed for general purpose power rectification applications. Surface mount type for compact PCB integration. Maximum continuous forward current rating of 1 ampere. Peak reverse repetitive voltage of 400 volts for reliable operation.
Maximum forward voltage drop of 1.1 volts to enhance efficiency. Wide operating temperature range from -65°C to 175°C. High surge current capability up to 30 amperes. Industry standard 2-pin DO-213AB package with 2.67 mm diameter.
No automotive standard approvals applicable. Suitable for industrial, electronic component manufacturing, and power supply applications. It is a new product suitable for replacement or inclusion in new designs requiring robust and efficient diodes.
Explore more Vishay Semiconductor components and other electronic parts at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 1 ampere.
This model has a peak reverse repetitive voltage of 400 volts.
The maximum forward voltage drop is 1.1 volts, which enhances its efficiency.
The diode operates within a wide temperature range from -65°C to 175°C.
It is packaged in the industry-standard DO-213AB 2-pin surface mount package.
It can withstand high surge currents up to 30 amperes.
This diode measures approximately 5.2 mm in length and has a diameter of 2.67 mm.
It is designed for general purpose power rectification applications, including power supply rectification and electronic component assemblies.
This model has a 2-pin configuration.
The peak reverse current is specified at 10 μA.
The diode configuration is single, suitable for various rectification tasks.
The country of origin for this diode is India.
