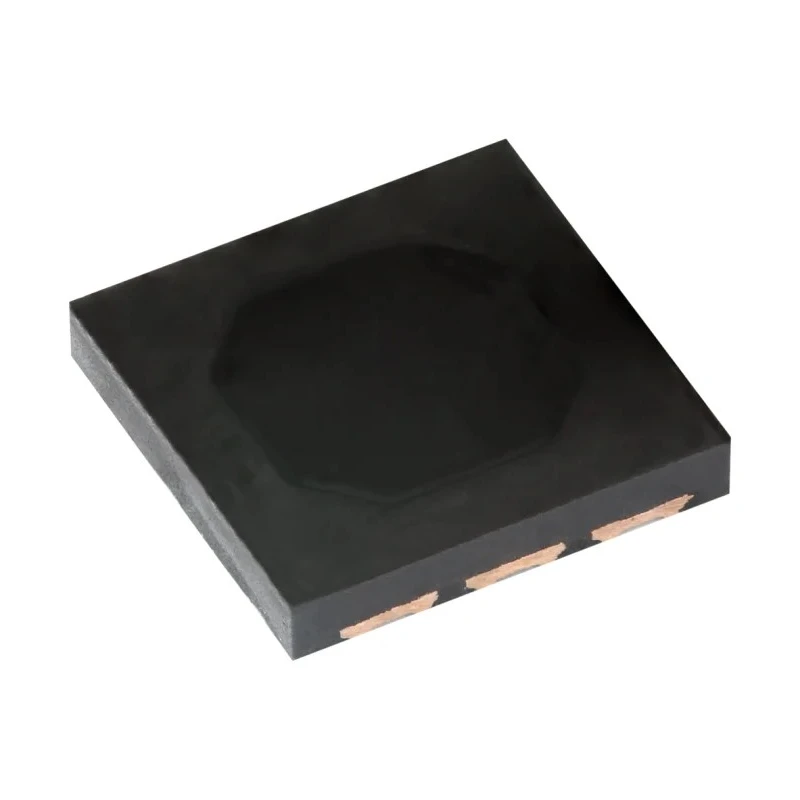

Vishay 710 to 1100 nm Silicon PIN Photodiode ±60 ° Angle, Surface Mount Device SMD K857PH

Free Delivery in India | Lowest Global Shipping Charges

Vishay 710 to 1100 nm Silicon PIN Photodiode ±60 ° Angle, Surface Mount Device SMD K857PH

Name: Vishay 710 to 1100 nm Silicon PIN Photodiode ±60 ° Angle, Surface Mount Device SMD K857PH
Brand: Vishay
SKU: 423930
Price: 1.87 USD
Availability: InStock



Category Photodiode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	0.75mm
Length	4.72mm
Model	K857PH
Packaging	Tape & Reel
Width	4.72mm
Mount Type	Surface
Series	K857PH
Maximum Operating Temperature	110°C
Package Type	SMD
Minimum Operating Temperature	-40°C
Dark Current	10nA
Standards/Approvals	AEC-Q101, JESD22-A114E (HBM ESD ±2000 V), MSL 3, RoHS
Typical Rise Time	3.9μs
Typical Fall Time	2.5μs
Automotive Standard	AEC-Q101
Wavelength of Peak Sensitivity	1100nm
Spectrums Detected	710 to 1100 nm
Breakdown Voltage	10V
Minimum Wavelength Detected	710nm
Maximum Wavelength Detected	1100nm
Angle of Half Sensitivity	±60 °

Key Features

Suitable for detecting light in the 710 to 1100 nm wavelength range.
Built with homogeneous silicon PIN technology for reliable photodetection.
Compact SMD package dimensions of 4.72 x 4.72 x 0.75 mm.
Features a surface mount design with tape and reel packaging for automated assembly.
Qualified to automotive AEC-Q101 standards ensuring high reliability.
Operates over a temperature range from -40°C to 110°C.
Has a breakdown voltage of 10 V and dark current of 10 nA.
Typical rise and fall times of 3.9 μs and 2.5 μs respectively for fast response.

Product Description

Vishay's K857PH is a silicon PIN photodiode that covers a wide spectral range from 710 to 1100 nm, ideal for optoelectronic applications requiring near-infrared detection. The device integrates four detection quadrants with active areas of 1.6 mm² each, packaged in a compact 4.72 x 4.72 x 0.75 mm surface-mount device (SMD) format. This configuration facilitates high-density mounting on PCBs and allows precise positioning in optical systems.

The photodiode exhibits a ±60 ° angle of half sensitivity and a peak sensitivity wavelength of 1100 nm, enabling efficient detection of light within the near-infrared spectrum. Its low dark current of 10 nA and fast rise/fall times (3.9 μs and 2.5 μs respectively) support high-speed optical sensing applications.

Notably, the K857PH is qualified to AEC-Q101 automotive standards, ensuring robustness in demanding environments. Its operating temperature range spans from -40°C to 110°C, making it suitable for industrial, automotive, laboratory, and manufacturing applications where temperature variations are common.

The device is supplied in tape and reel packaging, supporting automated pick-and-place assembly lines, and mounted on surfaces for reliable mechanical stability. Its breakdown voltage is rated at 10 V, providing appropriate protection against voltage spikes.

Vishay’s K857PH is an excellent choice for photodetection in optical sensors, communication equipment, and other electronic systems requiring compact, high-performance, and automotive-grade photodiodes.

Suitable for detecting light in the 710 to 1100 nm wavelength range. Built with homogeneous silicon PIN technology for reliable photodetection. Compact SMD package dimensions of 4.72 x 4.72 x 0.75 mm. Features a surface mount design with tape and reel packaging for automated assembly.

Qualified to automotive AEC-Q101 standards ensuring high reliability. Operates over a temperature range from -40°C to 110°C. Has a breakdown voltage of 10 V and dark current of 10 nA. Typical rise and fall times of 3.9 μs and 2.5 μs respectively for fast response.
