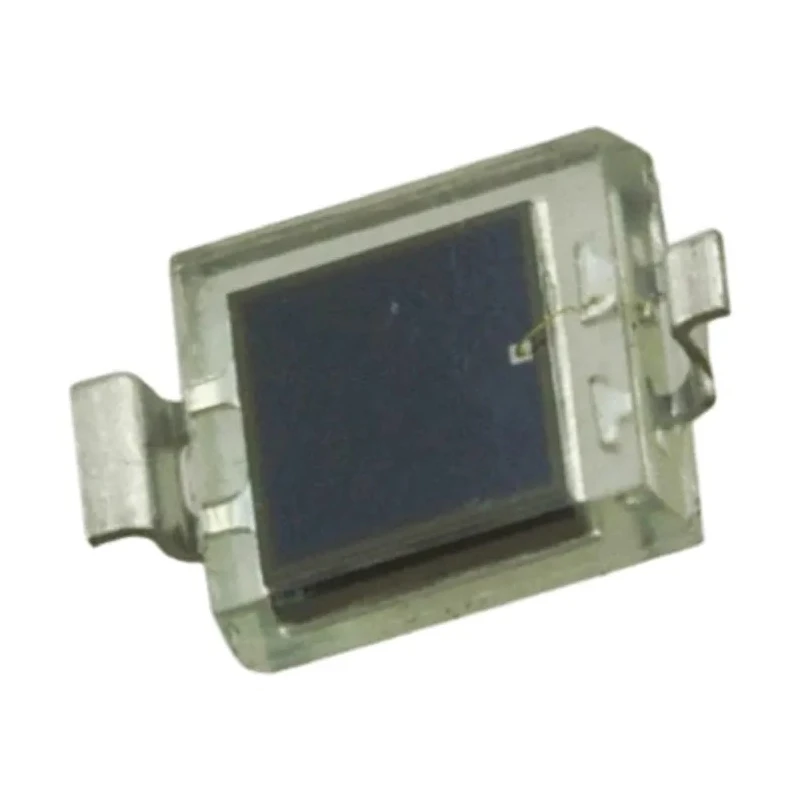

Vishay Infrared, Visible Light Photodiode, ± 65 ° Angle, Surface Mount, Reverse Gullwing VBPW34SR

Vishay VBPW34SR is a high-speed and high-sensitivity silicon PIN photodiode designed for reliable detection of infrared and visible light spectra. This device comes in a surface mount, reverse gullwing package optimized for automated PCB assembly and is intended for applications requiring fast and accurate light sensing.

With wavelength sensitivity ranging from 430 nm to 1100 nm and peak sensitivity at 940 nm, it effectively detects a broad range of IR and visible light signals. Its ± 65 ° angle of half sensitivity enables wide area detection for enhanced performance in sensing systems.

The photodiode features compact dimensions of 6.4 x 3.9 x 1.2 mm, suitable for space-constrained electronic designs. It offers a typical rise and fall time of 100 ns, ensuring rapid signal response for high-frequency applications.

Designed to operate in harsh environments, the device supports a broad temperature range from -40°C to 100°C, with compliance to automotive AEC-Q101 standards. The forward polarity configuration and a breakdown voltage of 60 V ensure robust operation in demanding circuit environments.

Supplied on tape and reel, the VBPW34SR is ideal for high-volume, automated manufacturing processes. It complies with WEEE 2002/96/EC, RoHS Directive 2002/95/EC, and IEC 61249-2-21 standards, assuring environmentally responsible manufacturing and disposal.

Detects spectrum in infrared and visible light for versatile sensor uses. High-speed PIN photodiode with fast rise and fall times of 100 ns. Compact surface mount package with reverse gullwing leads. Operational temperature range from -40°C to 100°C supports varied environments.

Compliant with automotive and environmental standards. Supplied in tape and reel for efficient automated mounting. Breakdown voltage of 60 V protects against voltage spikes. Angle of half sensitivity ± 65 ° enables wide detection area.

Short circuit current rating of 50 μA ensures performance reliability.

This Photodiode is suitable for applications in electronics, automotive, industrial sensing, and optical communication where reliable infrared and visible light detection is essential. It supports integration into systems that require fast, sensitive, and compact photodetection components.
