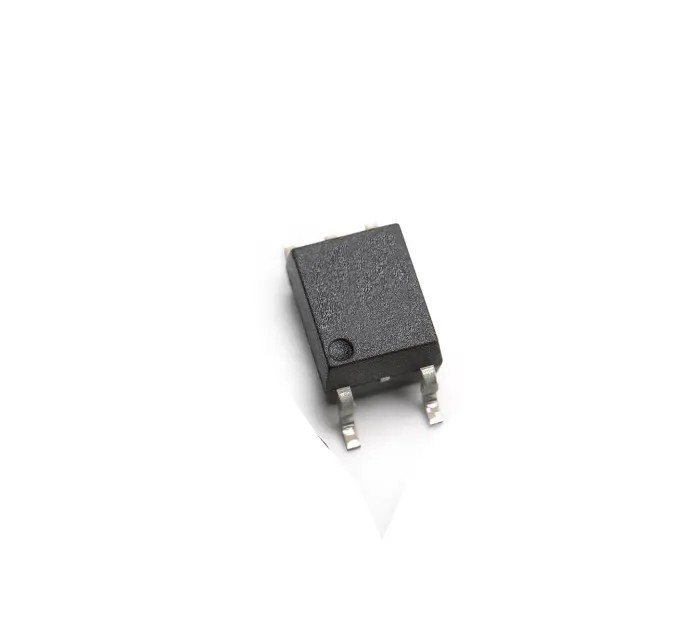

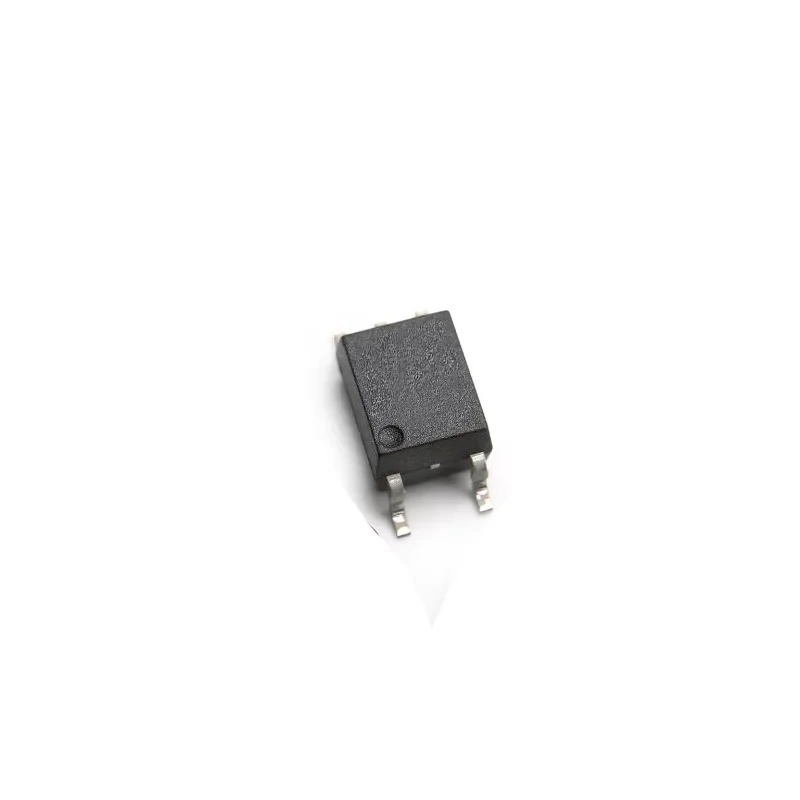

Broadcom AC/DC Input Transistor Output Surface Mount Optocoupler 5-Pin SO HCPL-M600-500E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-M600-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 15mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, IEC, EN, CSA |
| Maximum Forward Voltage | 1.85V |
| Number of Pins | 5 |
| Input Current Type | AC/DC |
| Typical Rise Time | 24ns |
| Typical Fall Time | 10ns |
| Low Input Current Capability | 5 mA |
| Guaranteed ac and dc Performance over Temperature | -40oC to 85oC |
Key Features
- This optocoupler provides high ac and dc circuit isolation with TTL compatibility.
- It integrates GaAsP LED and high gain photon detector for efficient optical coupling.
- Typical rise time is 24ns and fall time is 10ns, supporting high-speed signal transmission.
- Maximum input current rating is 15mA with low input current capability of 5mA.
- Operates reliably over a temperature range of -40°C to 85°C.
- Packaged in tape and reel for automated surface mount assembly processes.
- Complies with UL, IEC, EN, and CSA standards for safety and quality.
- Small outline, low profile JEDEC registered package compatible with infrared vapor phase reflow and wave soldering.
Product Description
Broadcom HCPL-M600-500E is an AC/DC input optocoupler designed for industrial and electronic component applications, providing reliable signal isolation and high-speed switching. This device features a small outline surface mount 5-pin SO package, making it suitable for compact PCBs and automated assembly lines.
The optocoupler combines a gallium arsenide phosphide (GaAsP) LED with an integrated photon detector and an open-collector Schottky-clamped transistor output, ensuring robust TTL level signal output with high common mode rejection (CMR). It supports both AC and DC input currents, enhancing its versatility in various power and signal isolation designs.
The HCPL-M600-500E supports an isolation voltage of 3750 Vrms and comes with guaranteed ac and dc performance from -40°C up to 85°C, allowing it to operate in harsh industrial environments with stable characteristics. Its typical rise and fall times of 24ns and 10ns respectively enable it to handle fast signal transmission up to 10 MBd.
Surface mountable with a low profile, the device is JEDEC registered and compatible with infrared vapor phase reflow and wave soldering processes. It is supplied in tape and reel packaging to facilitate large-scale manufacturing.
High-speed, low input current optocoupler with transistor output. TTL compatible signal levels with high common mode rejection. Isolation voltage rated at 3750 Vrms for enhanced safety. Wide operating temperature range from -40°C to 85°C.
Small outline 5-pin SO surface mount package. Compliant with UL, IEC, EN, and CSA industrial standards. Low input current capability down to 5mA for power savings. Designed for reliable operation in industrial and electronic equipment.
This optocoupler is commonly used in electronic circuits requiring electrical isolation between input and output, such as power supplies, industrial control systems, and signal processing units. Its packaging and performance characteristics make it ideal for automated assembly in commercial and industrial manufacturing.
Explore more products in the Optocoupler category for diverse applications across electronics and electrical engineering projects.
