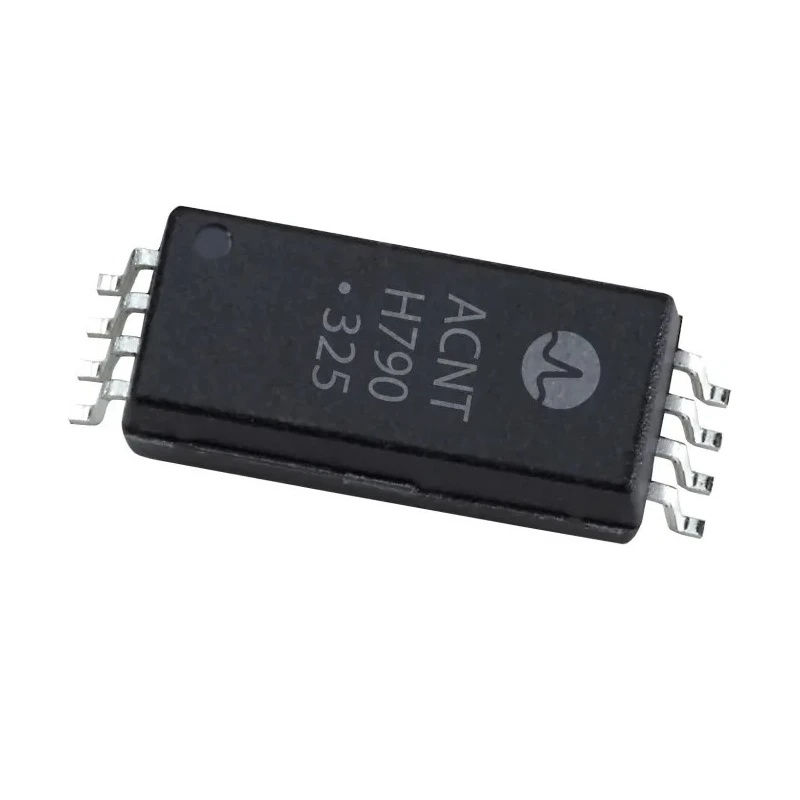

Broadcom Optocoupler Surface Mount 8-Pin, 1 Channel, 1.7μs Rise/Fall Time ACNT-H790-500E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Optocoupler Surface Mount 8-Pin, 1 Channel, 1.7μs Rise/Fall Time ACNT-H790-500E

Name: Broadcom Optocoupler Surface Mount 8-Pin, 1 Channel, 1.7μs Rise/Fall Time ACNT-H790-500E
Brand: Broadcom
SKU: 424143
Price: 15.51 USD
Availability: InStock



Category Optocoupler Brand Broadcom Condition New

Specifications

Country of Origin	Philippines
Brand	Broadcom
Model	ACNT-H790-500E
Mount Type	Surface
Series	ACNT-H790
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Maximum input current	230mA
Number Of Channels	1
Standards/Approvals	RoHS
Number of Pins	8
Typical Rise Time	1.7μs

Key Features

Surface mount package with 8 pins for reliable PCB integration.
Single channel optocoupler with 1.7μs typical rise and fall times.
Maximum input current capacity of 230 mA for robust signal isolation.
Operational temperature range from -40°C to 105°C.
Advanced Sigma-Delta A/D modulation technology for enhanced accuracy.
Designed for motor drives, renewable energy, and power converter applications.
Package includes 14.2 mm creepage, clearance, and 0.5 mm distance through insulation.
High common-mode transient immunity of 15 kV/μs ensures signal integrity.

Product Description

Broadcom ACNT-H790-500E is a high-performance optocoupler designed as an isolation amplifier for current and voltage sensing in electronic power converters. Its surface mount 8-pin SO-8 package facilitates easy integration on printed circuit boards, providing robust electrical isolation and precise signal transfer through optical means.

This product features a single channel with exceptionally fast typical rise and fall times of 1.7μs, enabling swift signal response essential for dynamic power electronic systems. Supporting a maximum input current of 230 mA, it ensures reliable performance in high-current sensing applications.

The operating temperature range from -40°C to 105°C allows usage in demanding industrial environments including motor drives and renewable energy systems. Incorporating advanced Sigma-Delta (S-D) analog-to-digital modulation technology, this optocoupler delivers excellent gain accuracy with ±3% and minimal low gain drift, ensuring stable and accurate signal conversion over temperature variations.

The package is engineered with a stretched SO-8 form factor featuring 14.2 mm creepage and clearance distances, along with a 0.5 mm distance through insulation (DTI), meeting stringent safety and performance standards. A common-mode transient immunity rating of 15 kV/μs protects the device against high voltage transients often encountered in industrial power electronics.

This device is RoHS compliant, ensuring environmentally responsible manufacturing. It excludes automotive standards, focusing on industrial and renewable energy system applications. Country of origin is Philippines.

Ideal for use in industrial, electrical, and renewable energy sectors, the Broadcom ACNT-H790-500E optocoupler enhances system reliability and efficiency by providing galvanic isolation and precise signal measurement.
