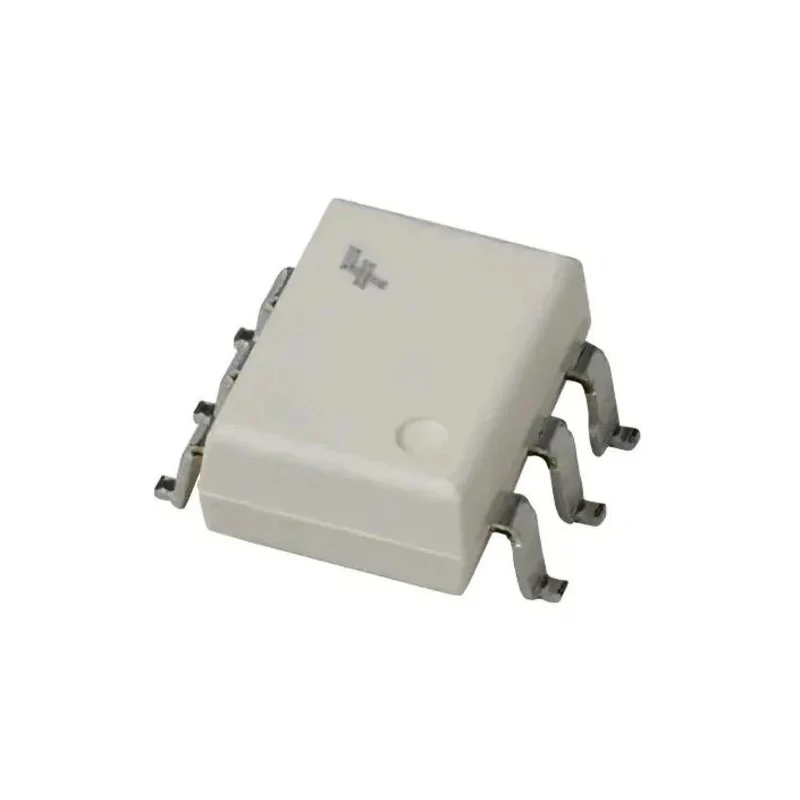

onsemi Optocoupler Surface Mount, 6-Pin SMT, 1 Channel, 60mA Input, 1.5V Forward Voltage MOC3053SM

onsemi MOC3053SM optocoupler is a high-performance surface mount device featuring a 6-pin SMT package. It combines a gallium arsenide (GaAs) infrared emitting diode optically coupled to a non-zero crossing silicon bilateral AC switch (triac). This construction ensures excellent isolation between input and output, enabling safe interfacing between low voltage logic circuits and AC power lines up to 115 VAC or 240 VAC.

The device supports a maximum forward voltage of 1.5 volts and a maximum input current of 60 mA. It is designed for stable operation across a wide temperature range from -40°C to 85°C, making it suitable for industrial and consumer appliance applications that require reliable switching control.

The MOC3053SM complies with rigorous standards such as UL1577 and DIN EN/IEC60747-5-5, ensuring safety and quality. It features enhanced static dv/dt capability that guarantees stable switching even under inductive load conditions, minimizing false triggering in motor or industrial load controls.

Available in tubes of 50 units, the device caters to high-volume surface mount technology (SMT) assembly lines. It isolates logic voltage from AC mains voltage and enables random phase control of high current triacs or thyristors in dimmers, motor controllers, and power supply circuits.

Applications include consumer appliances, industrial motor control, and general electronic switching tasks where isolation and control precision are critical. Originating from Thailand, this product maintains a new condition status and is consistent with industrial grade quality requirements.

Optical isolation of low voltage logic and AC lines. Surface mount 6-pin SMT package. Maximum forward voltage: 1.5V and input current: 60mA. Operating temperature range: -40°C to 85°C. UL1577 and DIN EN/IEC60747-5-5 approved.

Stable switching under inductive load with enhanced dv/dt. Manufactured in Thailand, provided in tubes of 50 units. Explore more onsemi Optocouplers and related electronic components in the Electronics & Electricals category on EnvMart for industrial and commercial applications.
