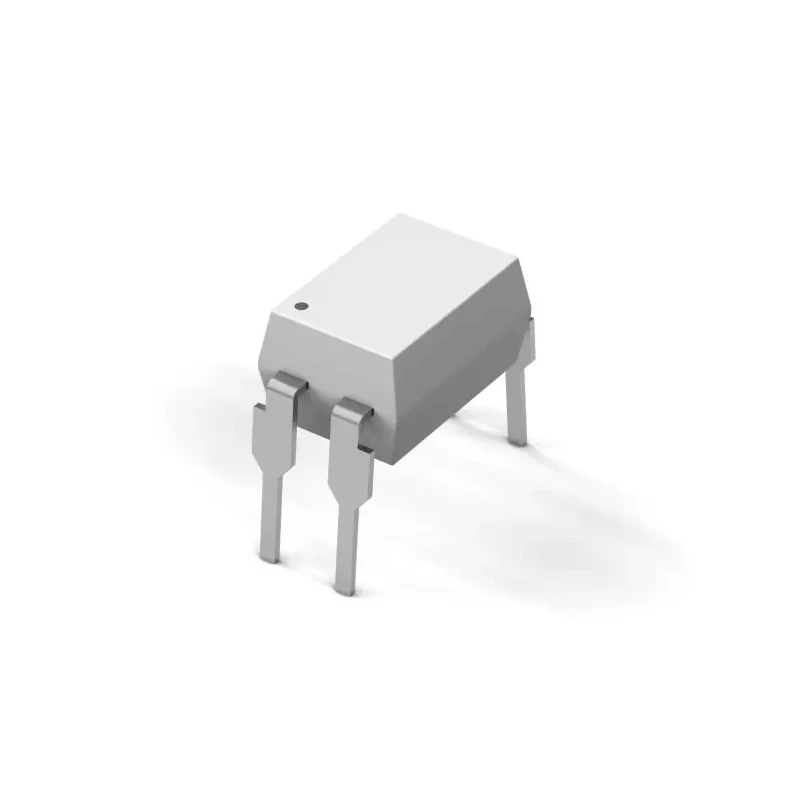

Wurth Elektronik DC Input 4-Channel Optocoupler Through Hole 4-Pin DIP 140816140010
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Packaging | Tube |
| Mount Type | Through Hole |
| Output type | Phototransistor |
| Series | WL-OCPT |
| Maximum Operating Temperature | 110°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 4 |
| Standards/Approvals | VDE, RoHS, REACH, JEDEC JS709B, IEC 61249-2-21, CoC |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 4μs |
| Minimum Current Transfer Ratio | 50% |
Key Features
- Features a typical rise time of 3 microseconds for fast switching.
- Maximum forward voltage is 1.4 volts ensuring efficient input operation.
- Supports a maximum input current of 60 milliamps for reliable performance.
- High isolation voltage of 5000 Vrms provides excellent electrical separation.
- Operates between temperatures -55°C to 110°C, suitable for harsh environments.
- Typical fall time is 4 microseconds allowing quick response.
- Contains 4 channels and comes in a DIP package with 4 pins.
- Complies with industry standards including VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21.
Product Description
Wurth Elektronik 140816140010 is a precision DC input optocoupler featuring 4 channels housed in a 4-pin DIP through-hole package with compact dimensions measuring 6.5mm x 4.58mm x 3.5mm (L x W x H). It employs a phototransistor output type with a maximum collector-emitter voltage of 80 volts and supports a maximum forward current of 60 milliamps with power dissipation up to 200 milliwatts. This optocoupler ensures high electrical isolation of 5000 Vrms, making it ideal for safety-critical isolation applications.
It offers excellent stability of inner isolation and a stable current transfer ratio (CTR) across full operation, available in different CTR binnings. The fast switching times with typical rise and fall times of 3 and 4 microseconds respectively, allow efficient control of various loads.
This product meets rigorous standards such as VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21. It operates reliably over a wide temperature range from -55°C to 110°C and is not automotive standard certified.
Typical applications include use within industrial test and measurement equipment, data communications hardware, power supply monitoring, and sensor isolation. The device is provided in a tube package containing multiple units to facilitate manufacturing environments.
Features a typical rise time of 3 microseconds for fast switching. Maximum forward voltage is 1.4 volts ensuring efficient input operation. Supports a maximum input current of 60 milliamps for reliable performance. High isolation voltage of 5000 Vrms provides excellent electrical separation.
Operates between temperatures -55°C to 110°C, suitable for harsh environments. Typical fall time is 4 microseconds allowing quick response. Contains 4 channels and comes in a DIP package with 4 pins. Meets industry standards including VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21.
Packaging provided in tube format for ease of handling and storage. Explore more from the Optocouplers category and Wurth Elektronik products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current supported by this model is 60 milliamps, ensuring reliable performance in various applications.
This optocoupler features a typical rise time of 3 microseconds, allowing for fast switching capabilities.
It has a high isolation voltage of 5000 Vrms, providing excellent electrical separation for safety-critical applications.
The device operates reliably over a wide temperature range from -55°C to 110°C, making it suitable for harsh environments.
This model contains 4 channels, allowing for multiple signal isolation in a single package.
It comes in a DIP (Dual In-line Package) format with 4 pins, suitable for through-hole mounting.
The typical fall time for this optocoupler is 4 microseconds, enabling quick response times in switching applications.
The maximum forward voltage is 1.4 volts, which ensures efficient input operation.
It employs a phototransistor output type, which is common for optocouplers used in signal isolation.
This optocoupler complies with several industry standards including VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21.
The product is packaged in a tube format, facilitating ease of handling and storage during manufacturing.
The maximum collector-emitter voltage for this device is 80 volts, suitable for various applications requiring voltage isolation.
