Toshiba DC Input Optocoupler Surface Mount 4-Pin SO-6 TLP2301(E(T

Free Delivery in India | Lowest Global Shipping Charges

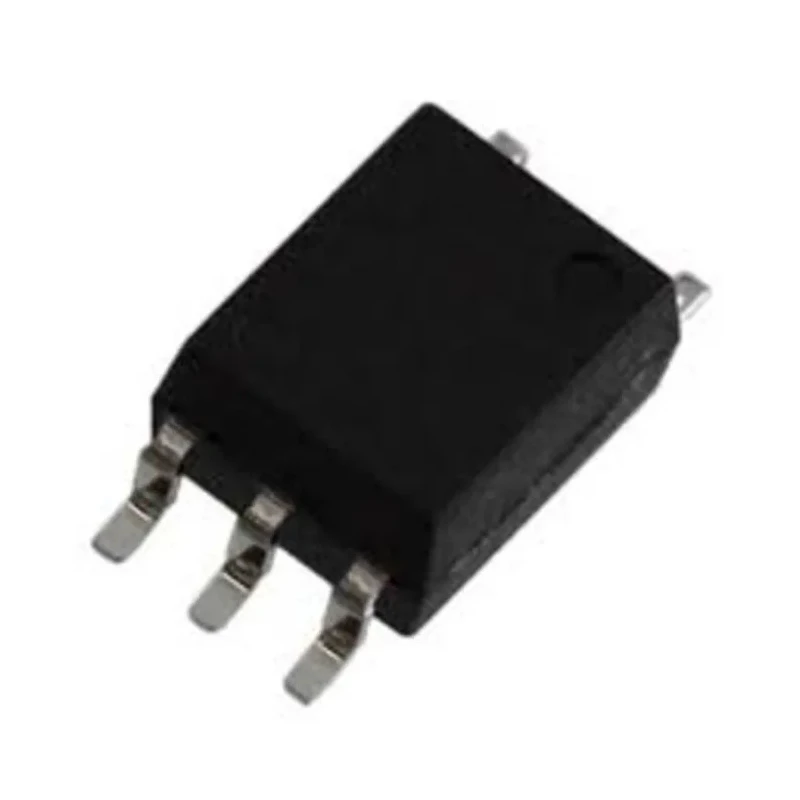

Toshiba DC Input Optocoupler Surface Mount 4-Pin SO-6 TLP2301(E(T

Name: Toshiba DC Input Optocoupler Surface Mount 4-Pin SO-6 TLP2301(E(T
Brand: Toshiba
SKU: 422341
Price: 0.58 USD
Availability: InStock



Category Optocoupler Brand Toshiba Condition New

Specifications

Country of Origin	India
Brand	Toshiba
Model	TLP2301(E(T
Mount Type	Surface
Output type	Open Collector
Series	TLP 2301
Maximum Operating Temperature	125°C
Package Type	SO-6
Minimum Operating Temperature	-55°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	CSA, UL 1557
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Maximum Current Transfer Ratio	600%

Key Features

Features high-speed photo transistor optocoupler with infrared LED coupling.
Open collector output type for versatile interfacing.
Maximum forward voltage of 1.4 V ensures low power loss.
Operates reliably from -55°C to 125°C temperature range.
Provides isolation voltage of 3750 Vrms for enhanced safety.
Supports up to 50 mA maximum input current.
Maximum current transfer ratio of 600% for efficient signal transmission.
Packaged in compact SO-6 surface mount package with 4 pins.

Product Description

Toshiba TLP2301(E(T DC Input Optocoupler is a high-speed optocoupler device featuring a surface mount 4-pin SO-6 package designed for DC input current applications. The device consists of a photo transistor optically coupled to an infrared LED, providing efficient signal isolation and transmission.

Its open collector output type is suited for interfacing with a wide variety of circuits, and it supports a maximum forward voltage of 1.4 V minimizing power losses. The device operates across a broad temperature range from -55°C to 125°C, ensuring stable performance in harsh industrial and communication environments.

The TLP2301(E(T supports a maximum input current of 50 mA and delivers a maximum current transfer ratio of 600%, allowing for effective amplification of input signals. With an isolation voltage rating of 3750 Vrms, it provides robust electrical isolation to protect sensitive components.

Certified by CSA and UL under standard 1557, this optocoupler meets stringent quality and safety norms. Its compact SO-6 package occupies minimal PCB area, making it suitable for space-constrained industrial, communication equipment, and inverter applications.

High-speed photocoupler with infrared LED and phototransistor combination. Surface mount technology (SMT) in a 4-pin SO-6 package. Open collector output for flexible interfacing. Low forward voltage of 1.4 V reduces power loss.

Wide operating temperature from -55 to 125°C for industrial use. Maximum input current rating of 50 mA for varied applications. High current transfer ratio of up to 600% for efficient signal transmission. Isolation voltage of 3750 Vrms ensures electrical safety.

Certified compliance with CSA and UL 1557 standards. Ideal for communication devices and industrial inverter systems.

This Toshiba optocoupler is a reliable choice for industrial automation, communication equipment, instrumentation, and other electronic systems requiring effective electrical isolation and signal transfer. For detailed technical documents, datasheets, and compliance certificates, reference the Toshiba TLP2301(E(T part number.

Explore similar advanced Optocoupler components and other electronics through EnvMart for your industrial and electrical system designs.
