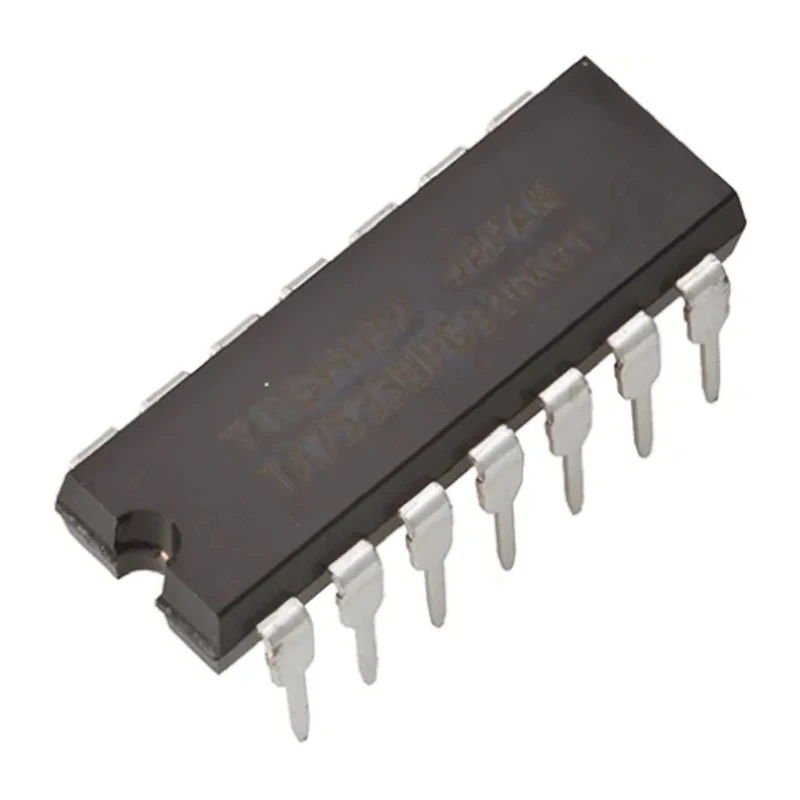

Toshiba Inverter Logic IC CMOS Digital 14-Pin PDIP 3-18V 110ns Propagation Delay TC4069UBP(N,F)

Toshiba TC4069UBP(N,F) is a reliable inverter logic IC featuring CMOS inputs and digital outputs contained in a 14-pin PDIP package. Designed in the TC4000 series logic family, this component contains six inverter elements per chip, allowing for versatile digital signal processing in electronic circuits.

Operating efficiently on supply voltages ranging from 3 volts minimum to 18 volts maximum, this IC is suitable for a broad range of low to medium voltage applications. It maintains a propagation delay time of 110 nanoseconds at specified capacitive loading, ensuring prompt signal inversion response.

Constructed for through-hole mounting, the 14-pin PDIP package measures 19.25 mm in length, 6.4 mm in width, and 3.5 mm in height, facilitating easy integration into PCB designs. The device functions effectively over a temperature spectrum from -40°C to 85°C, meeting requirements for industrial and commercial environments.

With a maximum high level output current of -4 mA and a low level output current of 4 mA, the IC can drive typical digital logic circuitry. Although there are no specific certifications or automotive standards associated with this model, its Japanese origin reflects quality manufacturing standards.

This inverter IC is ideal for use in various industrial, manufacturing, and electronics laboratory applications, including digital signal processing, logic circuit design, and educational experiments. The device can be employed in embedded systems, control circuits, and electronic prototype development.

Operates over a 3 to 18 volts supply voltage range. Comprises 6 inverter elements per chip for digital signal inversion. Through-hole mount PDIP package supports easy PCB integration. Temperature range from -40°C to 85°C is suitable for harsh environments.

Compact package dimensions enable efficient circuit design. Maximum propagation delay time of 110 ns ensures fast switching. Maximum output current levels support typical logic interfacing. Designed as part of the TC4000 logic IC family by Toshiba.
