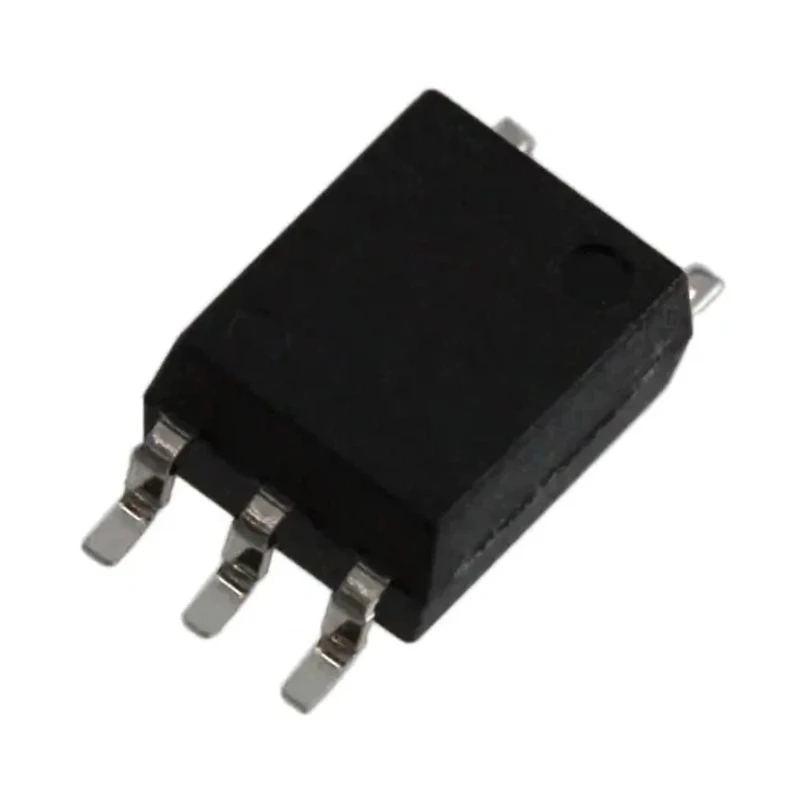

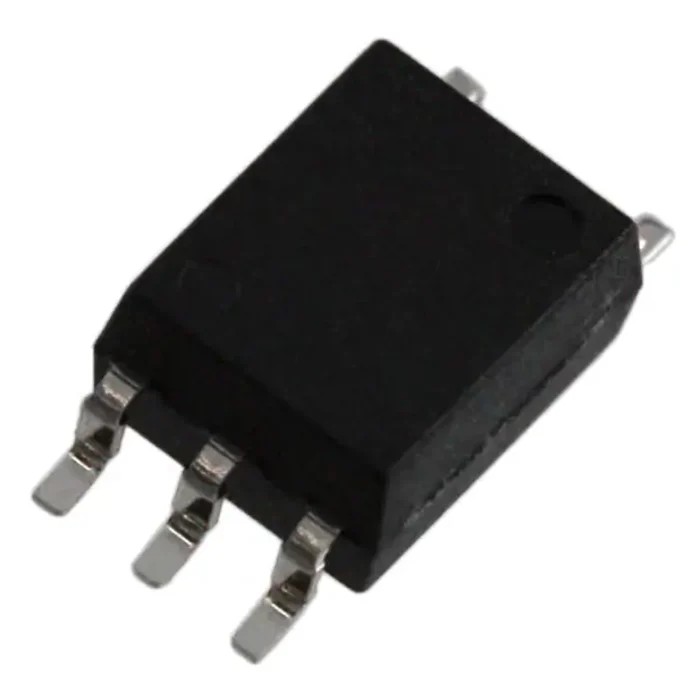

Toshiba Photocoupler Surface Mount 4-Pin SO MOSFET Output 1.4V Max Forward Voltage TLP172AM(TPR,E(O

Free Delivery in India | Lowest Global Shipping Charges

Toshiba Photocoupler Surface Mount 4-Pin SO MOSFET Output 1.4V Max Forward Voltage TLP172AM(TPR,E(O

Name: Toshiba Photocoupler Surface Mount 4-Pin SO MOSFET Output 1.4V Max Forward Voltage TLP172AM(TPR,E(O
Brand: Toshiba
SKU: 423545
Price: 1.92 USD
Availability: InStock



Category MOSFET Brand Toshiba Condition New

Specifications

Country of Origin	India
Brand	Toshiba
Model	TLP172AM(TPR,E(O
Packaging	SMD
Mount Type	Surface
Output type	MOSFET
Series	TLP
Maximum Operating Temperature	110°C
Package Type	SO
Minimum Operating Temperature	-40°C
Maximum input current	30mA
Number Of Channels	1
Standards/Approvals	UL1577, EN60747-5-5 (VDE), UL508, RoHS, CSA Component Acceptance Service No.5A
Maximum Forward Voltage	1.4V
Number of Pins	4
Typical Rise Time	0.6ms
Typical Fall Time	0.1ms

Key Features

Photorelay integrates a gallium arsenide infrared emitting diode with a photo MOSFET.
Mount type is surface, suitable for compact PCB designs.
Maximum forward voltage is 1.4 volts ensuring efficient switching.
Typical rise and fall times are 0.6 ms and 0.1 ms respectively for fast response.
Maximum input current rating is 30 mA for reliable operation.
Operating temperature range spans from -40°C to 110°C for diverse environments.
Compliance with UL1577, EN60747-5-5 (VDE), UL508, RoHS, and CSA ensures safety and quality.
Single channel configuration supports isolated switching applications.

Product Description

The Toshiba TLP172AM(TPR,E(O photocoupler is a high-performance surface mount photorelay featuring a gallium arsenide infrared emitting diode optically coupled to a photo MOSFET within a compact 4-pin SO package. This device excels in industrial control systems, factory automation, security systems, and mechanical relay replacement applications where reliable, quick switching and electrical isolation are essential.

Its surface mount package supports efficient circuit board layout and compact design. The maximum forward voltage of 1.4 V and maximum input current of 30 mA enable effective operation while minimizing power loss. Typical switching times of 0.6 ms rise time and 0.1 ms fall time allow fast response for dynamic control requirements.

Operating reliably in extreme temperature ranges from -40°C to 110°C, the photocoupler suits harsh industrial environments. It complies with key international safety standards including UL1577, EN60747-5-5 (VDE), UL508, RoHS, and CSA Component Acceptance Service No.5A, confirming its manufacture to high-quality and safety benchmarks.

The device is normally open and halogen free, supporting environmentally responsible applications. It is commonly used for isolation in factory automation machinery, security systems, and replacing mechanical relays to extend system lifespan and reduce maintenance.

In summary, the Toshiba TLP172AM(TPR,E(O photocoupler provides a robust, compact solution for industrial switching and isolation tasks requiring MOSFET output type in a surface mount format.

Photorelay integrates gallium arsenide infrared diode and photo MOSFET. Surface mount with 4-pin SO package. Maximum forward voltage 1.4 V for efficient switching. Typical rise time 0.6 ms and fall time 0.1 ms. Maximum input current 30 mA for reliability.

Operating temperature range -40°C to 110°C. Safety and environmental standards UL1577, EN60747-5-5 (VDE), UL508, RoHS compliant. Single channel, normally open functionality. Explore the Toshiba range and other optocouplers at EnvMart for industrial, automation, and electronic component solutions.
