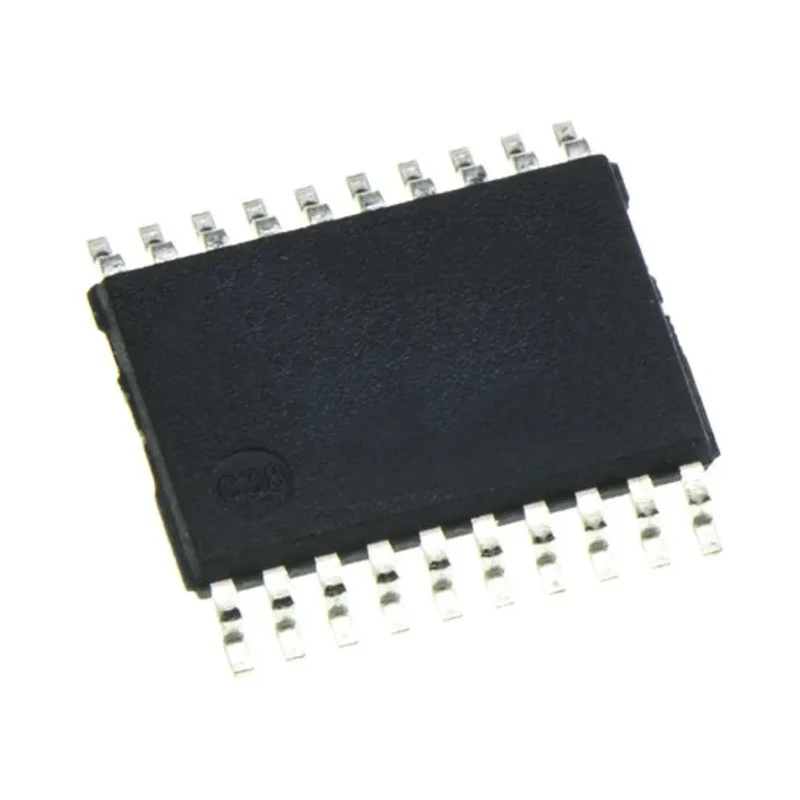

Toshiba 3 State Quad Bus Buffer, 20-Pin TSSOP, CMOS, 1.65V to 3.6V Supply, 20ns Propagation Delay 74LCX240FT

Toshiba 74LCX240FT 3 State Quad Bus Buffer is a high-performance CMOS device designed for 3.3V low-voltage systems. It delivers high-speed operation with a typical propagation delay of 20ns and supports a supply voltage range from 1.65V to 3.6V. The device is packaged in a compact 20-pin TSSOP surface mount format measuring 6.5mm in length and 1mm in height, making it suitable for space-constrained electronic designs.

This buffer IC features an inverting 3-state output with two active-low output enables, allowing effective bus interfacing and isolation. It can interface with both 3.3V logic devices and 5V systems for flexible design integration. The device outputs provide strong drive capability with minimum high- and low-level output currents of 24mA at a 3.0V supply voltage, ensuring reliable signal integrity.

The 74LCX240FT includes robust protection against static discharge on all inputs, enhancing its durability. Its operating temperature range from -40°C to 85°C and conformance to AEC-Q100 standard support automotive and harsh industrial environment use. With a typical supply current of only 500µA, it contributes to low overall power consumption in designs.

Low-voltage operation with supply range 1.65V to 3.6V. High-speed CMOS technology with 20ns max propagation delay. 3-state inverting buffer function with dual active-low enables. Surface mount TSSOP package, 20 pins, compact dimensions.

Robust output current drive capability of ±24mA. Wide operating temperature suitable for automotive applications. Static discharge protection on inputs. Complies with RoHS and automotive standard AEC-Q100. Low supply current of 500μA for efficient power use.

Compatible with 3.3V and can interface with 5V logic systems.

This 3-state quad bus buffer IC is ideal for industrial, automotive, electronic manufacturing, and laboratory semiconductor applications. It supports bus memory addressing and data buffering with efficient power and signal performance. Discover more semiconductor components and logic ICs under the Semiconductor category on EnvMart.
