Nexperia Non-Inverting Schmitt Trigger Input Single Ended Buffer 5-Pin TSSOP 1.65 to 5.5 V Supply Voltage 74LVC1G17GW,125

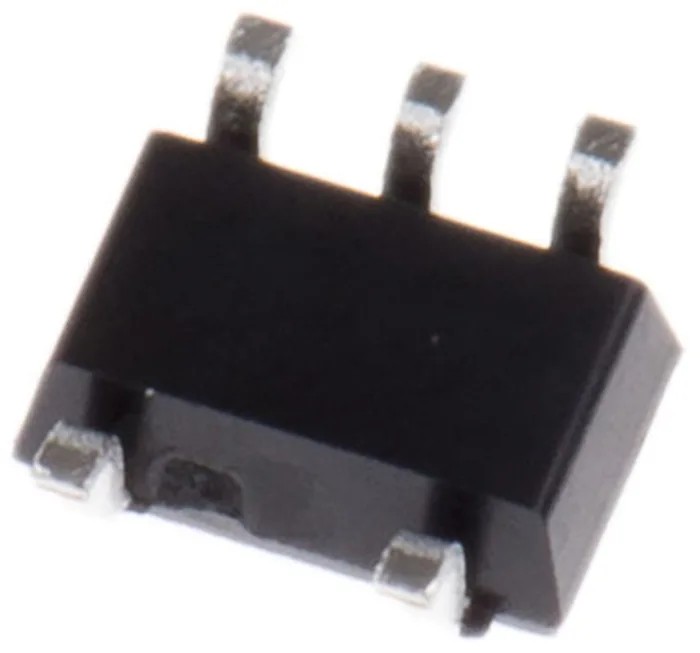

Nexperia 74LVC1G17GW,125 is a low-voltage CMOS logic buffer IC featuring a single non-inverting Schmitt trigger input designed for improving signal integrity with hysteresis on the input. It is supplied in a 5-pin TSSOP package that is surface mount compatible, making it ideal for compact PCB designs.

This buffer IC is suitable for industrial, electronics manufacturing, and embedded system applications where dependable logic level translation and signal conditioning are required. Its operating voltage range of 1.65 to 5.5 V allows flexible power supply options, while the robust operating temperature range from -40°C to 125°C makes it capable of use in harsh environments.

The device supports one logic channel and offers compatibility with LVTTL/TTL input standards with output levels adhering to LVCMOS specifications. The non-inverting output buffers the input signal with Schmitt trigger action to reduce noise and signal distortion.

The maximum output currents are -32 mA for high-level and 32 mA for low-level outputs, suitable for driving moderate loads without additional buffering. The package dimensions (length 2.25 mm, height 1 mm) provide a compact footprint for high-density PCB layouts.

This IC is widely used in electronics design, prototyping, industrial automation controls, and signal processing circuits. Its low power supply current (~100 mA) and robust specifications contribute to efficient operation in both commercial and industrial applications.

Operates at a wide supply voltage range from 1.65 V to 5.5 V to suit various applications. Single non-inverting Schmitt trigger input channel enhances signal quality and noise immunity. Compact 5-pin TSSOP surface mount package for space-saving PCB assembly.

Wide operating temperature range from -40°C up to 125°C ensures reliable performance in harsh conditions. Compatible with LVTTL and TTL input standards and provides LVCMOS output levels. Maximum output current of -32 mA (high) and 32 mA (low) suitable for moderate load driving.

Low typical supply current of 100 mA for energy-efficient operations. Compact device dimensions measuring 2.25 mm in length and 1 mm in height. Explore the wide range of semiconductor Buffers from Nexperia and other leading brands at EnvMart for your electronic design and manufacturing needs.
