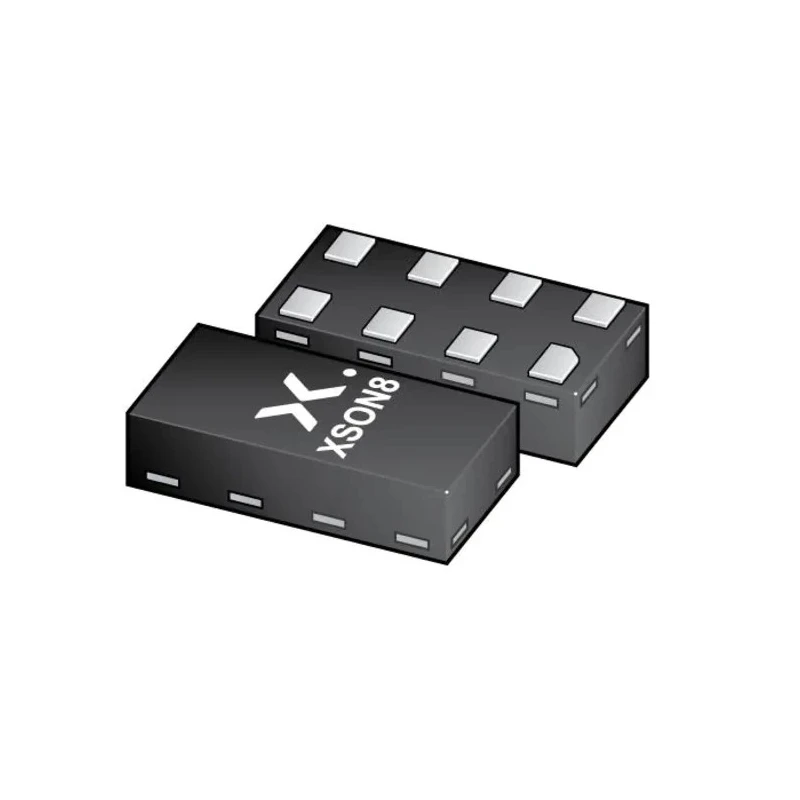

Nexperia Voltage Level Translator Dual Supply Bidirectional 2-Bit Logic CMOS XSON8 Package NXB0102GTX

Nexperia NXB0102GTX is a dual-supply voltage level translator IC designed for bidirectional voltage translation of logic signals with CMOS technology. The device integrates two 2-bit input-output ports (An and Bn), an output enable pin (OE), and dual supply pins (VCC(A), VCC(B)) allowing it to translate voltage levels between a wide range of low voltage nodes such as 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5.0 V. VCC(A) supports from 1.2 V to 3.6 V supply while VCC(B) supports from 1.65 V to 5.5 V.

Its auto direction sensing functionality simplifies integration, eliminating manual control for direction changes. The OE pin provides control over output states, driving outputs to a high-impedance state when set LOW. The IOFF circuitry enables partial power-down mode, preventing damaging current backflow when the device is powered down, making it robust for power-sensitive applications.

Encapsulated in a compact XSON8 package measuring 2.4 mm by 2.1 mm, this IC is suitable for space-constrained industrial and commercial embedded designs. It operates reliably across an industrial temperature range from -40°C to 125°C.

The maximum low-level output current is rated at 50 mA, supporting strong output drive. It meets IEC61000-4-2 electrostatic discharge standards and is RoHS compliant, ensuring environmental safety and durability.

This voltage level translator IC is ideal for industrial automation, consumer electronics, data communication interfaces, and embedded systems requiring reliable voltage level shifting between different logic voltages.

Supports a wide supply voltage range from 1.2 V to 5.5 V for versatile voltage translation. Auto direction sensing eliminates the need for manual direction control. Output enable pin offers control over output states with high impedance mode.

IOFF circuitry allows safe partial power-down operation protecting against backflow. Compact XSON8 package suitable for space-constrained applications. Industrial operating temperature range from -40°C to 125°C. Complies with IEC61000-4-2 and RoHS standards.

Maximum low-level output current of 50 mA ensures strong signal drive.
