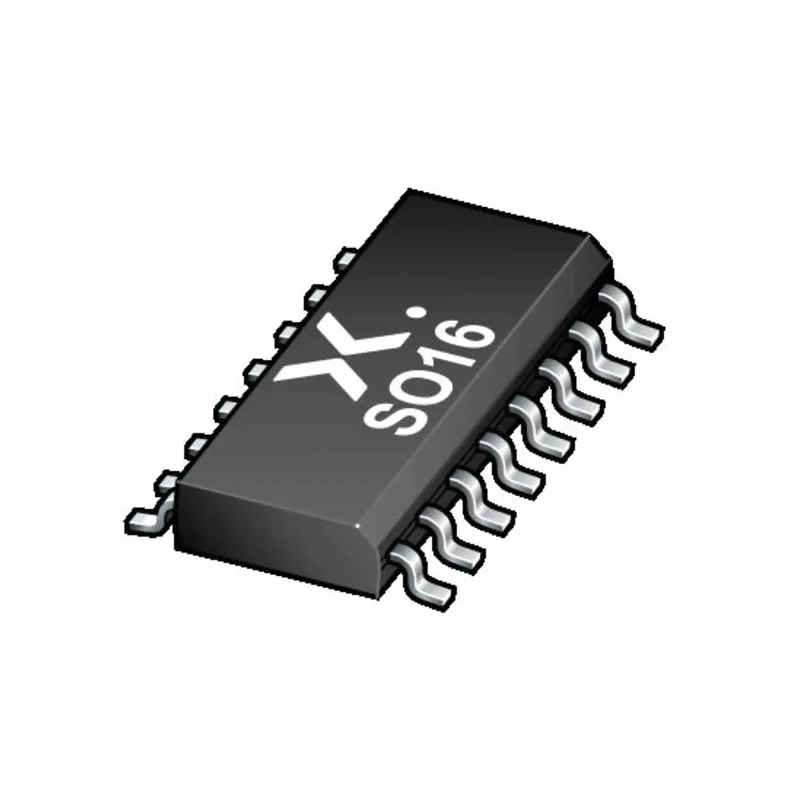

Nexperia CMOS Single 8:1 Non-Inverting Multiplexer Logic IC 16-Pin SO-16 74HC251D,653

Free Delivery in India | Lowest Global Shipping Charges

Nexperia CMOS Single 8:1 Non-Inverting Multiplexer Logic IC 16-Pin SO-16 74HC251D,653

Name: Nexperia CMOS Single 8:1 Non-Inverting Multiplexer Logic IC 16-Pin SO-16 74HC251D,653
Brand: Nexperia
SKU: 420893
Price: 0.35 USD
Availability: InStock



Category Logic IC Brand Nexperia Condition New

Specifications

Country of Origin	Thailand
Brand	Nexperia
Height	1.45mm
Length	10mm
Model	74HC251D,653
Width	4mm
Mount Type	Surface
Output type	CMOS/TTL
Series	74HC251
Configuration	Single 8:1
Maximum Operating Temperature	125°C
Package Type	SO-16
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Pin Count	16
Number of Elements per Chip	1
Maximum Supply Voltage	6V
Logic Family	CMOS
Minimum Supply Voltage	2V
Multiplexer/Demultiplexer	Multiplexer
ConfigurationSingle 8	1
Single 8	1
For 74HC251	CMOS level
For 74HCT251	TTL level
Nexperia 74HC251D,653 Multiplexer, 1 CMOS Single 8	1, Non-Inverting, Multiplexer, 16-Pin SO-16

Key Features

The device operates with a wide supply voltage range from 2V to 6V suitable for mixed 3.3V and 5V systems.
It provides high noise immunity and low propagation delay for reliable signal switching.
The output is CMOS/TTL compatible with complementary outputs and a high-impedance shutdown state via output enable.
It supports operation in temperatures ranging from -40°C to 125°C, making it robust for industrial environments.
The package type is SO-16 surface mount with a compact 10mm x 4mm x 1.45mm dimension footprint.
Includes clamp diodes allowing input voltage interface flexibility higher than VCC with current-limiting resistors.
The low power dissipation design and non-inverting data path optimize power efficiency.
Ideal for simplifying interface buses, input expansion, and bus width reduction in electronic design.

Product Description

Nexperia 74HC251D,653 is a CMOS logic single 8:1 non-inverting multiplexer multiplexing IC in a 16-Pin SO-16 surface mount package. It operates at supply voltages ranging from 2V to 6V and is designed for mixed 3.3V and 5V digital applications.

This multiplexer features one chip element with eight binary inputs, three select inputs, and output enable input. The output enable controls the high-impedance OFF state to reduce power consumption when not in use.

With dimensions measuring 10mm length, 4mm width, and 1.45mm height, it supports operation over an industrial temperature range from -40°C to 125°C, making it suitable for demanding environments.

The IC delivers minimized propagation delays and high noise immunity, essential for reliable digital switching and signal processing in industrial, electronic manufacturing, and embedded system applications.

Additional features like clamp diodes allow interfacing inputs to voltages exceeding Vcc, improving versatility in complex circuits. The device supports complementary outputs, facilitating flexible design options.

This device simplifies interface bus designs by enabling multiple input selection through a single output line. Low power consumption and high noise immunity suit it for portable and industrial electronic equipment. Its broad temperature operating range and surface mount package support use in various industrial and commercial electronic devices.

Compatible with CMOS/TTL output levels, it provides seamless integration with common logic families. Optimized for bus width reduction, enabling more compact circuit layouts. Robust device construction ensures reliable operation in harsh conditions.

This multiplexer IC is ideal for use in industrial control systems, telecommunications equipment, embedded computing, and signal routing applications. Explore our full range of multiplexer and demultiplexer ICs in the Electronics & Electricals category on EnvMart for comprehensive solutions.
