ROHM General Purpose CMOS Logic IC 2-Input OR Gate 5-Pin SSOP BU4S71G2-TR

Free Delivery in India | Lowest Global Shipping Charges

ROHM General Purpose CMOS Logic IC 2-Input OR Gate 5-Pin SSOP BU4S71G2-TR

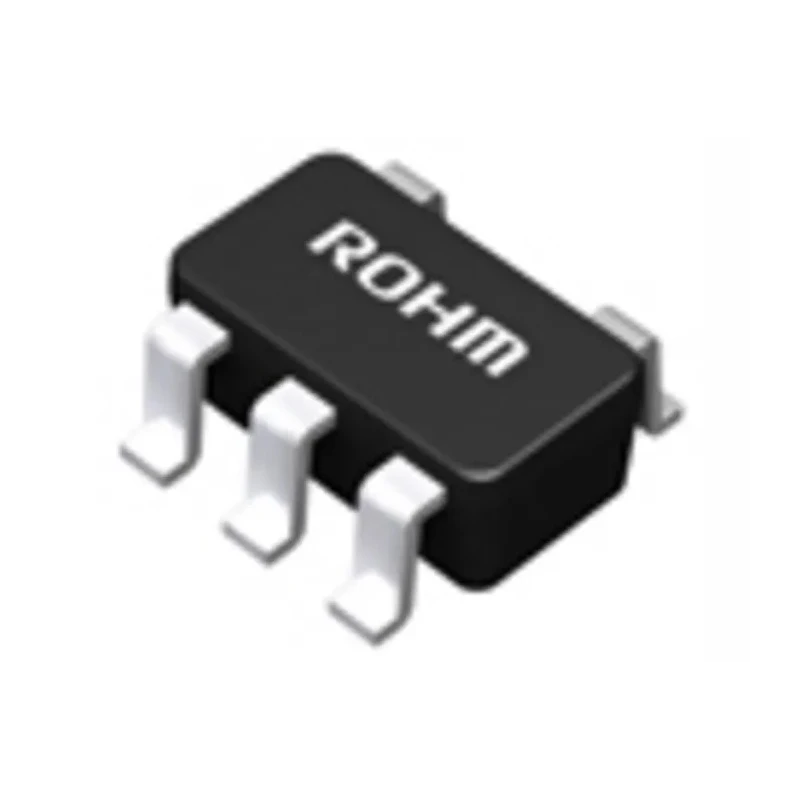

Name: ROHM General Purpose CMOS Logic IC 2-Input OR Gate 5-Pin SSOP BU4S71G2-TR
Brand: ROHM
SKU: 318527
Price: 0.84 USD
Availability: InStock



Category Logic IC Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	1.2mm
Length	2.9mm
Model	BU4S71G2-TR
Mount Type	Surface
Output type	Buffer
Series	BU4S71G2
Input Type	L-TTL, LS-TTL
Maximum Operating Temperature	85°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	5
Number of Elements	1
Maximum Supply Voltage	16V
Logic Family	CMOS
Logic Function	OR
Minimum Supply Voltage	3V
Maximum High Level Output Current	-3.4mA
Maximum Propagation Delay Time @ CL	90ns
Maximum Low Level Output Current	3.4mA
Number of Inputs per Gate	2

Key Features

Compatible with 4S, 4000B series logic gate functions.
Operates within wide supply voltage range of 3 to 16 volts.
Low power consumption ensures energy efficiency.
High input impedance and fan out capability.
Directly drives L-TTL and LS-TTL inputs.
Surface mount SSOP package with 5 pins for compact design.
Wide operating temperature range from -40°C to 85°C.
Maximum propagation delay time of 90 nanoseconds.

Product Description

ROHM BU4S71G2-TR is a general purpose CMOS logic IC configured as a 2-input OR gate, utilizing the BU4S71G2 series technology compatible with 4S and 4000B series. This device features low power consumption and supports a wide supply voltage range from 3V up to 16V, making it suitable for diverse industrial, electronic component manufacturing, and embedded system applications.

Its high input impedance and fan out capabilities guarantee efficient interfacing with other digital logic families such as L-TTL and LS-TTL. The IC is housed in a compact 5-pin SSOP surface mount package offering efficient PCB space utilization.

Operating temperature range from -40°C to 85°C ensures reliability in various environmental conditions. With a maximum propagation delay of 90 nanoseconds, it supports fast logic operations.

The buffered output type enhances signal robustness for downstream circuits. The device meets RoHS standards, assuring compliance with environmental regulations.

This CMOS logic IC series supports multiple functions compatible across a broad lineup of packages, facilitating versatile application in electronic designs including industrial automation, consumer electronics, and embedded systems.

Compatible with 4S, 4000B series logic gate functions. Operates within supply voltages from 3 to 16 volts. Low power consumption for efficient energy usage. High input impedance and fan out ability enable flexible interface.

Direct drive support for L-TTL and LS-TTL inputs. Compact 5-pin SSOP surface mount package. Wide operating temperature range from -40°C to 85°C. Maximum propagation delay of 90 ns improves speed. Buffered output ensures signal integrity.

This ROHM BU4S71G2-TR CMOS Logic IC is an ideal choice for semiconductor integration in industrial, electronic manufacturing, logic circuit design, and embedded control systems. Explore more in the Semiconductor > Logic Gates category at EnvMart for compatible and complementary electronic components.
