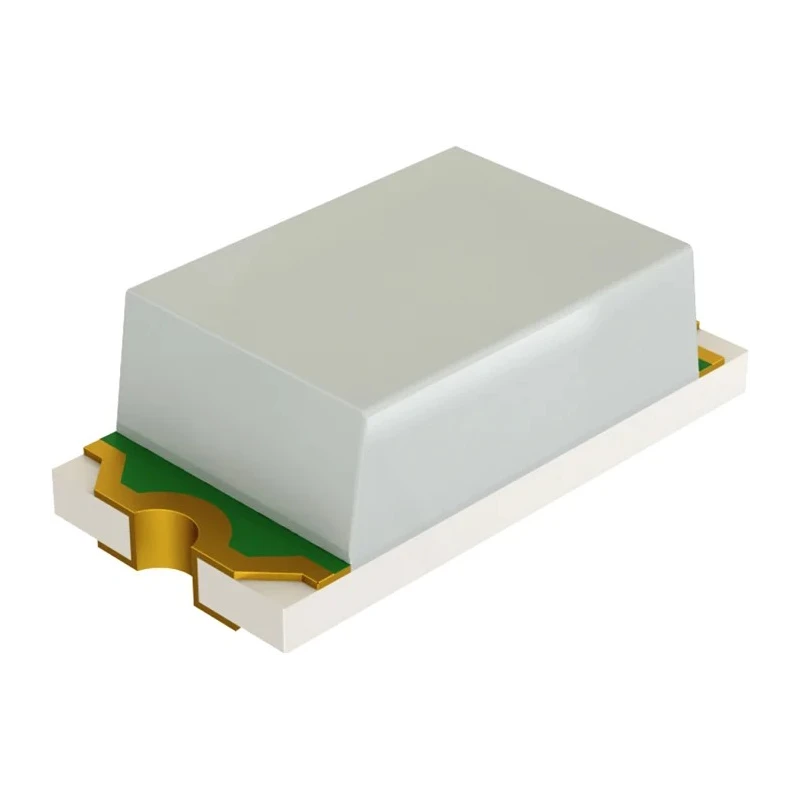

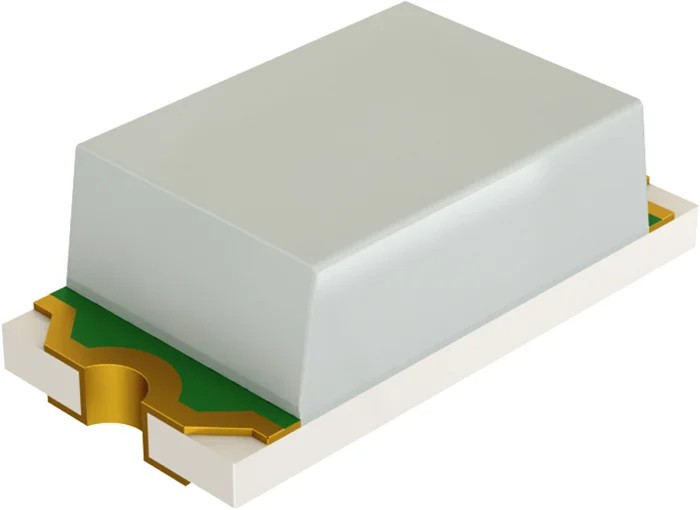

ROHM 2.9 V 66mW Blue LED 0603 Surface Mount SML Series SMLD12E3N1WT86

ROHM SMLD12E3N1WT86 is a high-performance 2.9 V blue LED designed for surface mounting in compact 0603 packages. It features efficient light emission with 85 mcd brightness and a low forward voltage of 2.9 V, making it suitable for various electronic display and indicator applications.

This LED’s compact size (1.6 x 0.8 x 0.55 mm lens dimensions) and milky white rectangular lens enhance its aesthetic and functional integration in modern electronic devices. The device supports a maximum forward current of 20mA and a power dissipation of 66mW, ensuring robust operation.

Being compliant with RoHS directives, this LED contributes to environmentally responsible designs. The SMLD12E3N1WT86 boasts a long operational life, retaining more than 90% luminous intensity after 1000 hours at high temperature and current conditions (85 °C, 20mA).

This product is ideal for industrial electronics, consumer devices, medical instruments, and display technologies requiring reliable and compact blue LED indicators. Maximum forward current: 20mA for reliable brightness.

Power dissipation of 66mW ensures stable operation. High luminosity of 85 mcd for vivid blue light output. Compact 0603 surface mount package with milky white rectangular lens. Long lifespan with over 90% residual brightness after 1,000 hours.

RoHS compliant for environmental safety. Dimensions: 1.6 x 0.8 x 0.55 mm lens size. Explore the extensive ROHM LED product range on EnvMart for additional components and lighting solutions.
