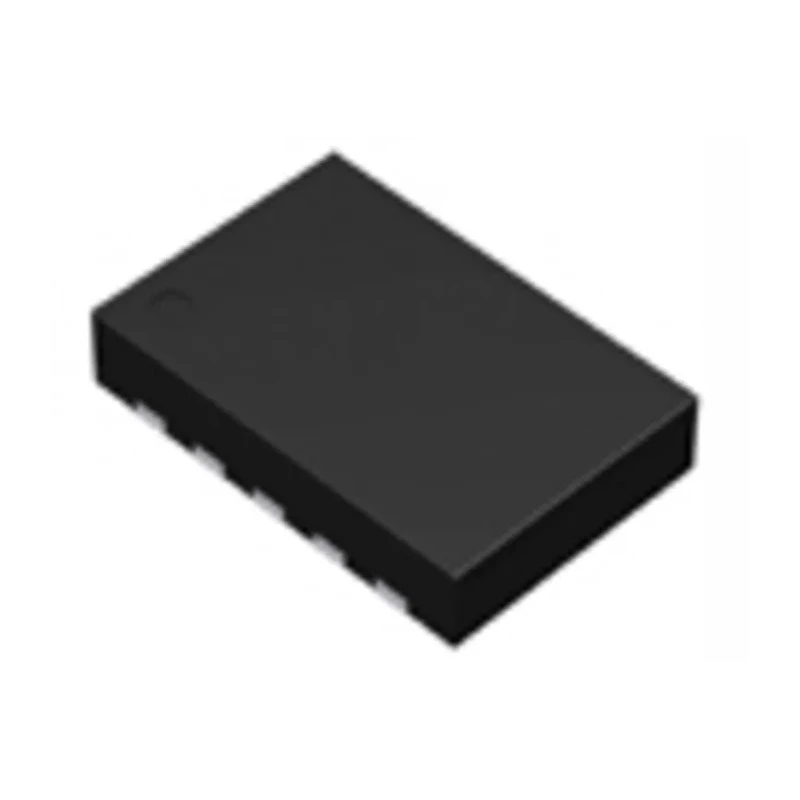

ROHM Low Power Synchronous Buck-Boost DC-DC Converter Evaluation Board BU33UV7NUX EVK-101
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | BU33UV7NUX |
| Output Voltage | 3.3 V |
| For Use With | BU33UV7NUX Converter |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
Key Features
- Supports output currents up to 500mA at 3.3V output voltage.
- Operates with input voltage from 1.8V to above 3.3V using two alkaline or one Li-ion/Li-polymer battery.
- Includes reset circuit with detection voltage at 1.5V and release at 1.9V.
- Features disconnect function during EN-OFF and UVLO for power saving.
- Offers Auto-PFM/PWM operation modes depending on input voltage level.
- Built-in thermal shutdown protects device from overheating.
- 10-pin VSON010X3020 package for compactness.
- Pass-through function connects Vout to Vin when input voltage exceeds 3.3V.
Product Description
ROHM BU33UV7NUX EVK-101 is a synchronous buck-boost DC-DC converter evaluation board designed for low power consumption and efficient power supply management, ideal for battery-powered applications. It supports powering devices using either two-cell alkaline/NiCd/NiMH batteries or a single Li-ion/Li-polymer battery.
This converter can deliver output currents up to 500mA at a fixed 3.3V output voltage, achieved via an internal resistor divider. When the input voltage (Vin) exceeds 3.3V, the output voltage (Vout) is connected directly to Vin via a pass-through function to maximize efficiency.
The BU33UV7NUX includes a reset circuit with detection voltage set at 1.5V and release voltage at 1.9V, ensuring reliable operation. It features a disconnect function that activates during EN-OFF and undervoltage lockout (UVLO) conditions to prevent unnecessary power drain.
Users can benefit from its auto PFM/PWM control modes, which automatically switch depending on mode selection and input voltage, optimizing the converter's efficiency under various loads. Additionally, the converter incorporates a thermal shutdown circuit to protect against overheating.
The evaluation board utilizes a compact 10-pin VSON010X3020 package, making it suitable for space-constrained designs and development environments. It complies with RoHS standards, ensuring environmentally responsible manufacturing.
Power Management Function: DC-DC converter with synchronous buck-boost operation. Output Current: Maximum 500mA at Ta=25°C, Vout=3.3V, Vin=1.8V. Reset Circuit: Detection voltage 1.5V, release voltage 1.9V. Operating Voltage: Supports two-cell alkaline/NiCd/NiMH or one Li-ion/Li-polymer battery.
Package Type: 10-pin VSON010X3020. Functions: Disconnect during EN-OFF/UVLO, Auto PFM/PWM modes, Pass-through, Thermal shutdown. Standards: RoHS compliant.
This evaluation board is suitable for industrial, laboratory, and development applications involving power management and battery-operated devices. It offers precise and reliable voltage regulation while optimizing power consumption.
Explore other power, motor, and robotics development tools in EnvMart’s comprehensive electronics category.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current is 500mA at a fixed output voltage of 3.3V.
It operates with an input voltage from 1.8V to above 3.3V.
It supports powering devices using either two-cell alkaline/NiCd/NiMH batteries or a single Li-ion/Li-polymer battery.
The evaluation board utilizes a compact 10-pin VSON010X3020 package.
Yes, it includes a thermal shutdown feature to protect against overheating and a disconnect function during EN-OFF and undervoltage lockout (UVLO) conditions.
The detection voltage for the reset circuit is set at 1.5V, with a release voltage of 1.9V.
Yes, it complies with RoHS standards, ensuring environmentally responsible manufacturing.
It serves as a DC-DC converter with synchronous buck-boost operation for efficient power management.
When the input voltage exceeds 3.3V, the output voltage is connected directly to the input voltage via a pass-through function to maximize efficiency.
It is suitable for industrial, laboratory, and development applications involving power management and battery-operated devices.
The country of origin for the BU33UV7NUX evaluation board is India.
