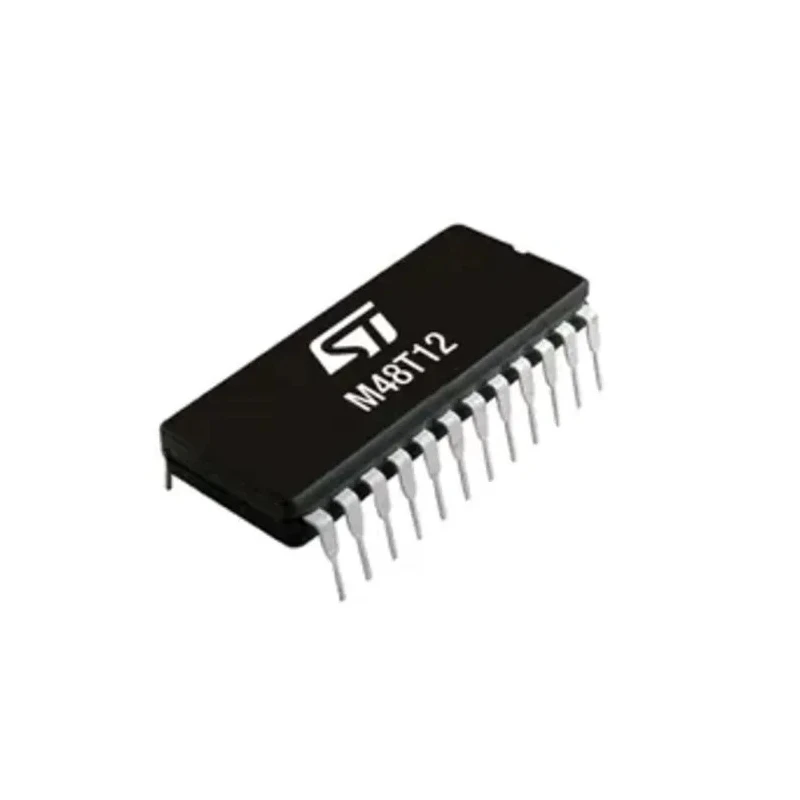

STMicroelectronics Timekeeper SRAM 16kbit Real Time Clock, Parallel Interface, 24-Pin PCDIP, Through Hole Mount M48T12-70PC1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 8.89mm |
| Length | 34.8mm |
| Model | M48T12-70PC1 |
| Width | 18.34mm |
| Mount Type | Through Hole |
| Series | M48T12 |
| Maximum Operating Temperature | 70°C |
| Package Type | PCDIP |
| Sub Type | Timekeeper SRAM |
| Minimum Operating Temperature | 0°C |
| Date Format | D:M:Y |
| Interface Type | Parallel |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Time Format | HH:MM:SS |
| RTC Memory Size | 16kbit |
| Time FormatHH | MM:SS |
| HH | MM:SS |
| Date FormatD | M:Y |
| STMicroelectronics M48T12-70PC1, Timekeeper SRAM 16 kbit Timekeeper SRAM D | M:Y, 24-Pin PCDIP Through Hole |
Key Features
- Designed for operation between 0°C and 70°C for reliability in various environments.
- Equipped with a quartz-based low-power oscillator and integrated battery.
- Compact package with dimensions 34.8mm length x 18.34mm width x 8.89mm height.
- Supports parallel interface communications for easy integration.
- Maximum supply voltage is 5.5V with a minimum of 4.5V ensuring stable operation.
- The 24-pin PCDIP package facilitates through-hole mounting on PCB assemblies.
Product Description
STMicroelectronics M48T12-70PC1 Timekeeper SRAM is a specialized 16kbit Real Time Clock (RTC) device with a parallel interface and a 24-pin PCDIP through-hole package. This product incorporates a very low power quartz oscillator combined with a clock and calendar circuit to provide precise real-time data output. It supports date formats in Day:Month:Year (D:M:Y) and time in hours, minutes, and seconds (HH:MM:SS), making it ideal for time-sensitive applications.
This RTC SRAM is engineered to operate reliably within a temperature range of 0°C to 70°C, supporting a maximum supply voltage of 5.5V and minimum supply voltage of 4.5V. The integrated design includes an onboard battery and crystal oscillator which facilitates uninterrupted clock function even during power loss.
The device's package dimensions are 34.8mm in length, 18.34mm in width, and 8.89mm in height, housed in a 24-pin PCDIP form factor. The through-hole mount type allows straightforward installation on printed circuit boards, suitable for industrial, laboratory, and embedded computing environments.
STMicroelectronics M48T12-70PC1 is well-suited for applications requiring real-time clock functionality combined with memory storage, such as industrial control systems, communication equipment, and embedded systems.
Operates with precise D:M:Y date format to maintain accurate calendar information. Timekeeping accuracy provided with HH:MM:SS format through low power quartz oscillator. Robust operating temperature range ensures durable performance in varying conditions.
Parallel interface simplifies connectivity in digital electronic circuits. Compact 24-pin PCDIP package for ease of PCB integration. Includes internal battery and crystal oscillator to maintain clock during power outages.
Suitable for industrial, laboratory, and embedded system applications requiring real-time data.
Explore more Real Time Clocks and Semiconductor products from EnvMart for trusted electronic components designed to operate reliably in diverse industrial and commercial use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5V.
It operates reliably within a temperature range of 0°C to 70°C.
The package dimensions are 34.8mm in length, 18.34mm in width, and 8.89mm in height.
This model supports a parallel interface for communication.
It has a memory size of 16kbit.
The integrated battery ensures uninterrupted clock function even during power outages.
It supports date formats in Day:Month:Year (D:M:Y).
The time format is in hours, minutes, and seconds (HH:MM:SS).
This model has a pin count of 24.
It features a through-hole mount type for easy installation on PCBs.
The country of origin for this product is India.
It is well-suited for applications requiring real-time clock functionality combined with memory storage, such as industrial control systems and embedded systems.
