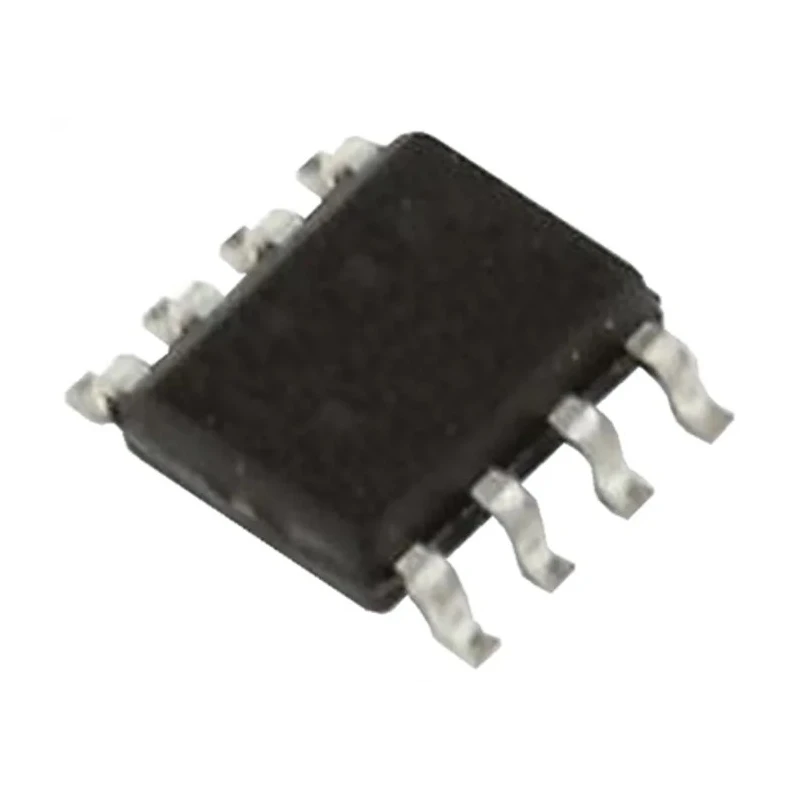

Texas Instruments 3-Channel Non-Inverting Schmitt Trigger Input CMOS Buffer 8-Pin SSOP SN74LVC3G17DCTR

Texas Instruments SN74LVC3G17DCTR is a 3-channel non-inverting Schmitt trigger input CMOS buffer housed in an 8-pin SSOP form factor. It operates at low voltages ranging from 1.65 V to 5.5 V, making it suitable for modern low-voltage digital circuits. The device features Schmitt trigger inputs that enhance noise immunity and signal integrity by converting slow or noisy input signals into clean digital outputs.

Each of the three channels has a single-ended non-inverting input compatible with LVTTL/TTL logic levels, while the output is a CMOS buffer delivering robust drive currents of up to 32 mA (low level) and -32 mA (high level). The typical maximum propagation delay time is 5.4 ns under standard load conditions, allowing for high-speed switching performance.

The compact 8-pin SSOP package measures 2.95 mm in length and 1.29 mm in height, making it suitable for space-constrained PCB layouts. Operating temperature range from -40°C to 85°C ensures reliable operation across a wide environmental range including industrial and commercial settings.

This buffer is ideal for signal conditioning, level shifting, and buffering signals in low voltage logic systems, industrial automation, communication devices, and embedded electronics. It complements the SN74LVC3G17 series by providing low power consumption and enhanced noise immunity.

The product does not carry specific automotive certifications but is broadly usable within general electronic design, prototyping, and production. The SSOP package enables easy surface mounting, supporting high-volume manufacturing and efficient PCB use.

Features three independent channels with Schmitt trigger inputs improving noise immunity. Supports low-voltage operation from 1.65 V to 5.5 V. Compact 8-pin SSOP package with small footprint. Non-inverting single-ended input compatible with LVTTL/TTL.

High switching speed with 5.4 ns maximum propagation delay at specified load. Wide operating temperature from -40°C to 85°C. Robust output current drive capacity of ±32 mA. Suitable for industrial, consumer electronics, and embedded applications.

Supports signal conditioning and buffering in low voltage digital systems.
