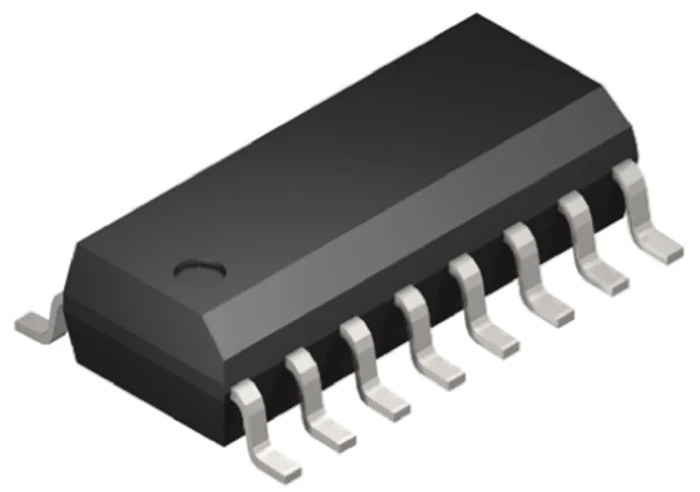

onsemi 6-Channel Non-Inverting 3 State Buffer, CMOS Logic, 16-Pin SOIC MC14503BDR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Length | 10mm |
| Model | MC14503BDR2G |
| Mount Type | Surface |
| Output type | 3 State |
| Series | MC14503B |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Polarity | Non-Inverting |
| Number Of Channels | 6 |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 18V |
| Logic Family | CMOS |
| Logic Function | Buffer |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | 19.2mA |
| Maximum Propagation Delay Time @ CL | 200ns |
| Supply Current | 15μA |
| Maximum Low Level Output Current | -8.2mA |
| Wide operating voltage range | 3 to 18V |
Key Features
- Features six non-inverting channels with 3-state output functionality.
- Operates within a wide voltage range of 3V to 18V.
- Provides maximum high level output current of 19.2mA and low level output current of -8.2mA.
- Supports surface mount technology with a compact SOIC package of 16 pins.
- Functions over a wide temperature range from -55°C to 125°C for robust industrial use.
- Maximum propagation delay time of 200ns ensuring fast switching performance.
- Extremely low supply current of 15μA for energy-efficient operation.
- Meets automotive standard AEC-Q100, suitable for automotive applications.
Product Description
onsemi MC14503BDR2G is a 6-channel non-inverting 3-state buffer logic IC from the CMOS family, housed in a 16-pin SOIC surface mount package. It supports a wide operating voltage range from 3V to 18V, with a supply current of just 15μA, making it highly energy efficient for various applications.
This buffer IC delivers a maximum high-level output current of 19.2mA and a low-level output current of -8.2mA. It operates reliably in harsh environments with a temperature range from -55°C to 125°C, ensuring long-term stability in industrial and automotive systems. The maximum propagation delay time of 200ns provides rapid signal processing.
Engineered to comply with the AEC-Q100 automotive standard, the MC14503BDR2G suits a variety of industrial, automotive, and electronic design applications requiring buffer and logic signal control. The device is designed for surface mount technology and is packaged in a convenient 16-pin SOIC for easy PCB integration.
Six non-inverting buffer channels with 3-state outputs enhance signal integrity and enable bus interface capability. Wide supply voltage range from 3V to 18V supports broad system compatibility. Low supply current of 15μA aids in reducing overall power consumption in circuits.
Meets automotive qualification AEC-Q100 for reliability in demanding environments. Compact SOIC-16 package facilitates efficient PCB layout and automated assembly. Temperature range of -55°C to 125°C ensures robust operation in industrial and automotive conditions.
Fast propagation delay of 200ns to maintain system responsiveness.
This buffer IC is widely used in Industrial Electronics, Automotive control systems, Consumer Electronics, and other semiconductor applications requiring compact and reliable logic buffering. It is suitable for designers looking for efficient signal buffering with stringent quality standards.
Explore a comprehensive range of Semiconductor Buffers and related electronic components on EnvMart for your next project or product design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 18V.
It operates over a temperature range from -55°C to 125°C.
This unit features six non-inverting channels.
The maximum high-level output current is 19.2mA.
It has a supply current of just 15μA, making it energy efficient.
This buffer IC is housed in a 16-pin SOIC surface mount package.
The maximum propagation delay time is 200ns.
Yes, it meets the AEC-Q100 automotive standard.
The minimum operating voltage is 3V.
It accepts single-ended input.
The output polarity is non-inverting.
The height of this model is 1.5mm.
