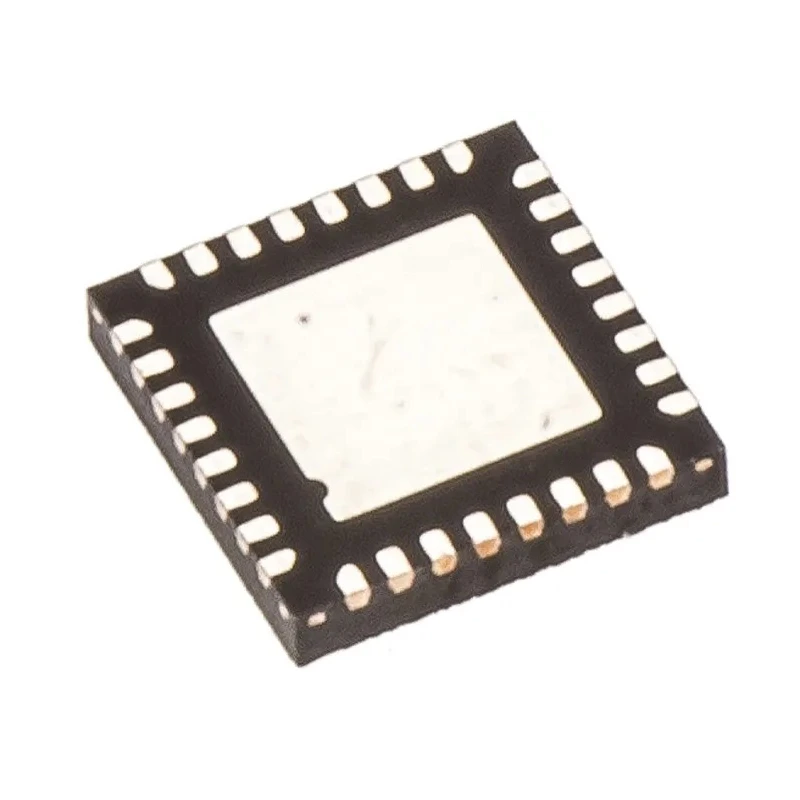

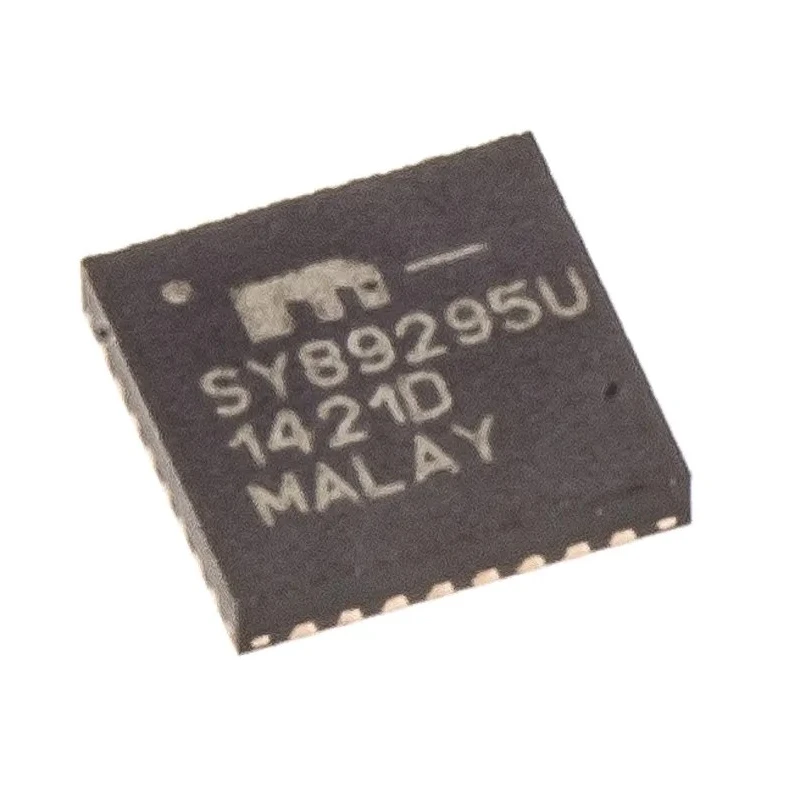

Microchip Programmable Delay Line 14.8 ns Total Delay 32-Pin MLF SY89295UMG

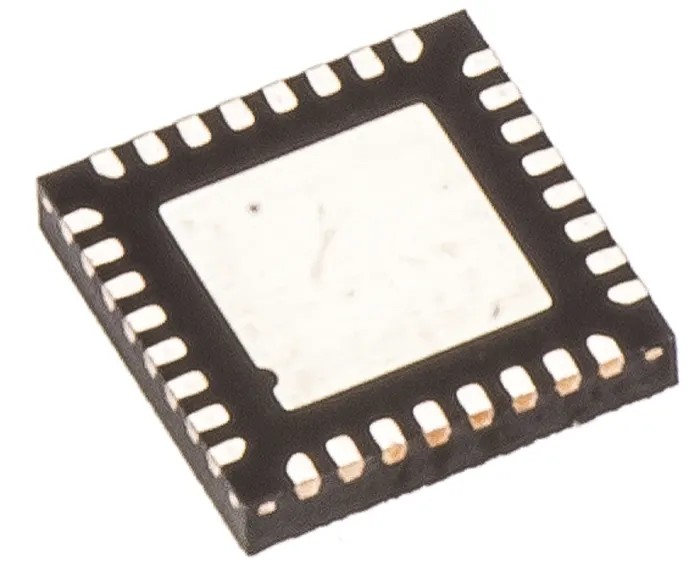

Microchip SY89295UMG is a high-precision programmable delay line designed to provide an exact total delay of 14.8 nanoseconds. It comes in a 32-pin MLF surface-mount package with dimensions of 5 mm length and 0.4 mm height, making it compact for dense PCB designs.

This semiconductor delay line operates reliably across a voltage supply range from 2.38 V minimum to 3.6 V maximum, supporting various power supply designs. It functions efficiently in industrial and electronic environments with an operating temperature range from -40°C to 85°C, ensuring robust operation under harsh conditions.

The device features one independent delay channel with 1024 taps or steps, enabling fine-tuning of signal timing with a delay to first tap of 3.2 ns. This precise timing control is ideal for clock distribution, timing synchronization, and frequency adjustment in complex electronic circuits.

With no automotive standard approval but robust specifications, this delay line is suited for a wide range of electronic component applications, including communications, industrial controls, and instrumentation. Its MLF package facilitates easy surface mounting and integration into modern PCB layouts.

The device supports 1024 taps or steps allowing fine delay control. Operates within a supply voltage range of 2.38 V to 3.6 V ensuring flexible integration. Meets a temperature operating range from -40°C to 85°C for reliable performance.

Designed for surface mounting with a compact 5 mm length and 0.4 mm height package dimensions. Features one independent delay channel with a first tap delay of 3.2 ns for timing precision. Suitable for clock, timing, and frequency IC applications in electronics systems.

This Microchip programmable delay line fits various industrial and electronic uses, including semiconductor device integration, precise delay timing circuits, and programmable logic systems. Its compact size and wide operating conditions make it advantageous for modern electronics design challenges.
