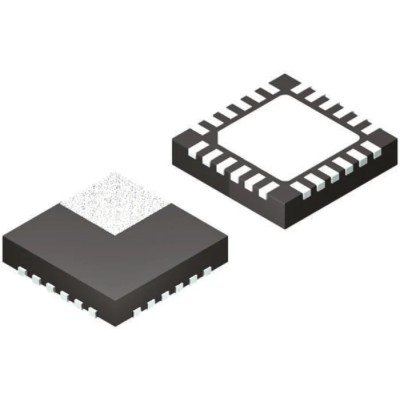

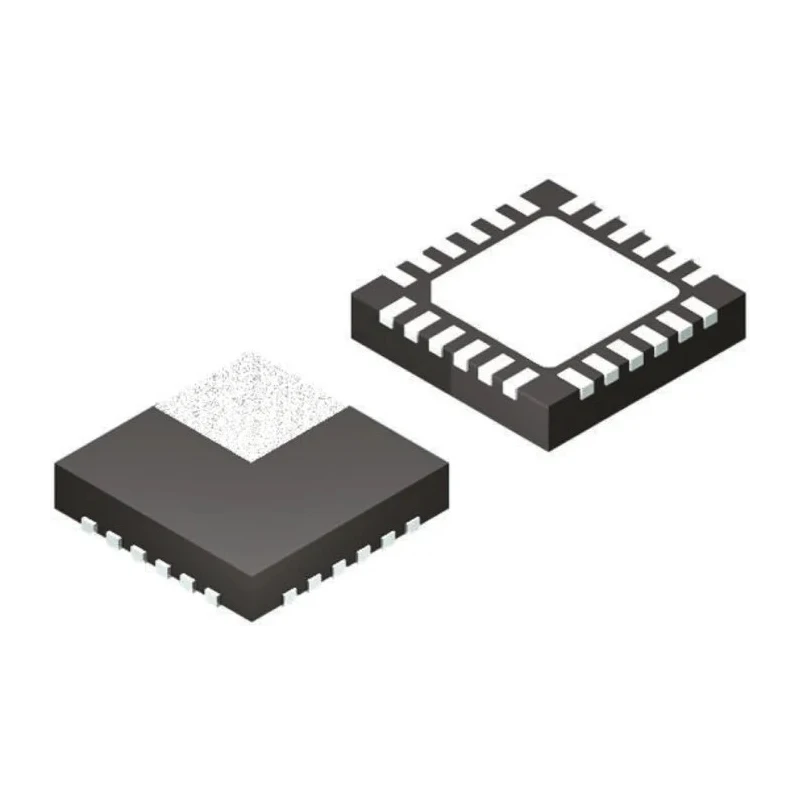

onsemi Programmable Delay Line 8.5 ns Total Delay 24-Pin QFN Surface Mount NB6L295MMNG

onsemi NB6L295MMNG is a high-performance programmable delay line ideal for applications requiring precise timing and delay control. Housed in a compact 24-pin QFN surface mount package, this device delivers a total delay time of 8.5 nanoseconds, enabling its use in advanced semiconductor, electronic measurement, and clock timing systems.

The delay line supports operation over a broad supply voltage range from 2.38V to 3.6V and withstands temperature extremes from -40°C to 85°C, making it suitable for both industrial and commercial electronics environments. Two independent delays and up to 256 taps or steps provide fine programmable timing resolution to meet complex timing sequences.

The device features a delay to first tap/step of 3.14 ns and maintains a low profile height of 0.95 mm, which is advantageous for space-constrained PCB layouts. This product belongs to the NB6L295M series and measures 4 mm in length, adhering to common industry packaging specifications.

Typical applications include semiconductor clock timing, frequency synthesis, telecommunications delay lines, and timing calibration in instrumentation and control systems. The programmable nature allows designers to customize timing delays precisely to enhance signal integrity and system synchronization.

Programmable delay line offering 8.5 ns total delay time. Compact 24-pin QFN surface mount package for efficient PCB integration. Wide supply voltage operation from 2.38V to 3.6V. Operating temperature range from -40°C to 85°C for robust performance.

Two independent delays with 256 taps/steps enable high resolution delay control. Low profile height of 0.95 mm suits space-constrained applications. Series NB6L295M with 4 mm package length standardizes device selection.

This onsemi programmable delay line NB6L295MMNG is engineered for electronics design projects requiring ultra-fast and precise delay applications. Its versatility and robust specifications make it a reliable choice for semiconductor and timing IC solutions.
