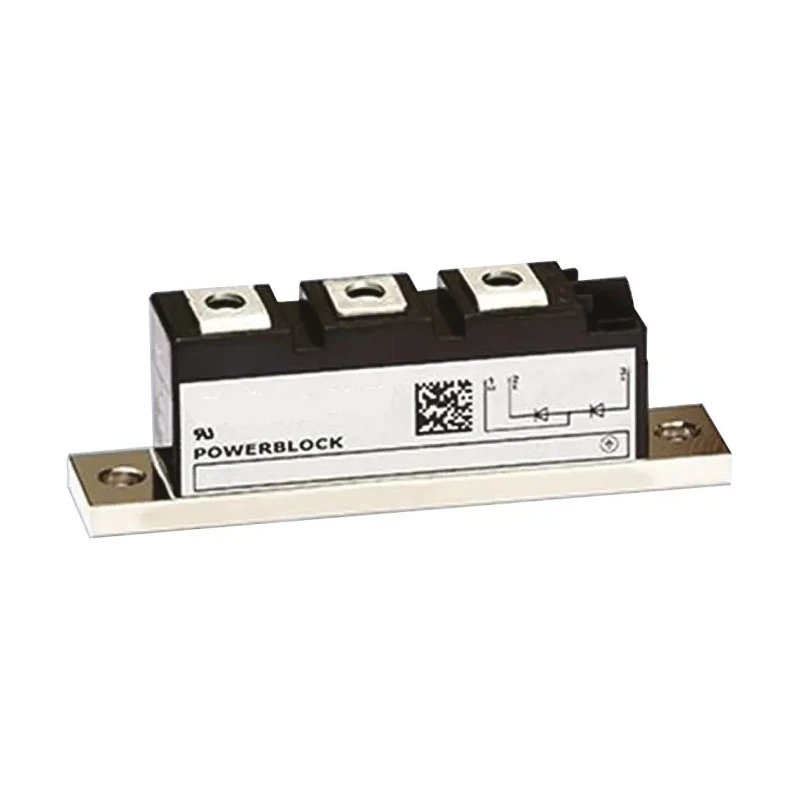

Infineon 1600 V 89 A General Purpose Rectifier Diode Module Panel Mount 3-Pin ND89N16KHPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 30mm |
| Length | 92mm |
| Model | ND89N16KHPSA1 |
| Width | 20mm |
| Mount Type | Panel |
| Series | DD89N |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | E83336 |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 89A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Series |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2800A |
| Maximum Forward Voltage Vf | 1.5V |
Key Features
- Supports a maximum continuous forward current of 89 amperes.
- Features a peak reverse repetitive voltage rating of 1600 volts.
- Constructed with pressure contact technology and a copper insulated baseplate for effective thermal management.
- Operates reliably within a temperature range of -40°C to 150°C.
- 3-pin configuration facilitates easy mounting and electrical connections.
- Maximum forward voltage drop is 1.5 volts ensuring efficient conduction.
- Peak non-repetitive forward surge current capacity of 2800 amperes for transient conditions.
- Compact dimensions measuring 92 mm length, 30 mm height, and 20 mm width for space-constrained applications.
Product Description
Infineon ND89N16KHPSA1 Rectifier Diode Module is an industrial-grade semiconductor component engineered for demanding electrical and power electronics applications. This general purpose rectifier diode features a 3-pin panel mount design and operates with a maximum continuous forward current rating of 89 amperes and a peak reverse repetitive voltage of 1600 volts.
The module utilizes advanced pressure contact technology (PCT), incorporating a copper insulated baseplate that provides excellent thermal dissipation and reliable operation under rigorous conditions. Its robust construction supports operation across a wide temperature range from -40°C up to 150°C, making it suitable for harsh industrial environments.
Designed for efficient current conduction, the diode has a maximum forward voltage drop of 1.5 volts and can withstand peak non-repetitive forward surge currents up to 2800 amperes. The compact physical footprint, measuring 92 mm in length, 30 mm in height, and 20 mm in width, facilitates easy integration into power modules and electrical drives.
This module complies with the E83336 standard, assuring performance consistency and reliability. Typical applications include electrical drives, low voltage soft starters, and a variety of power electronic circuits requiring sturdy and reliable rectifier diodes.
Supports a maximum continuous forward current of 89 amperes. Features a peak reverse repetitive voltage rating of 1600 volts. Pressure contact technology with copper insulated baseplate. Operates within -40°C to 150°C temperature range.
3-pin panel mount configuration. Maximum forward voltage drop of 1.5 volts. Peak non-repetitive forward surge current of 2800 amperes. Compact dimensions: 92 mm x 30 mm x 20 mm (LxHxW). Complies with E83336 standards. Suitable for electrical drives and soft starter applications.
Explore a wide range of semiconductor devices and power modules on EnvMart, designed to meet the needs of industrial, manufacturing, and electrical engineering applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 89 amperes.
It features a peak reverse repetitive voltage rating of 1600 volts.
This model operates reliably within a temperature range of -40°C to 150°C.
The maximum forward voltage drop is 1.5 volts, ensuring efficient conduction.
It can withstand a peak non-repetitive forward surge current of 2800 amperes.
The compact dimensions are 92 mm in length, 30 mm in height, and 20 mm in width.
This rectifier diode module features a 3-pin configuration for easy mounting and electrical connections.
It is designed for panel mounting.
It complies with the E83336 standard, assuring performance consistency and reliability.
Typical applications include electrical drives and low voltage soft starters, among other power electronic circuits.
It utilizes pressure contact technology along with a copper insulated baseplate for effective thermal management.
The peak reverse current is rated at 20 mA.
