Renesas Electronics Clock Buffer 8-Pin SOIC 3.3-5V 0-70°C 50MHz 501MILF

Renesas Electronics 501MILF Clock Buffer 8-Pin SOIC is a new, surface mount semiconductor device designed to provide low jitter, high quality clock buffering for frequencies up to 50 MHz. Operating at a supply voltage range of 3.3 to 5 volts and temperature range from 0 to 70 degrees Celsius, the device suits numerous industrial and electronic applications requiring stable clock generation.

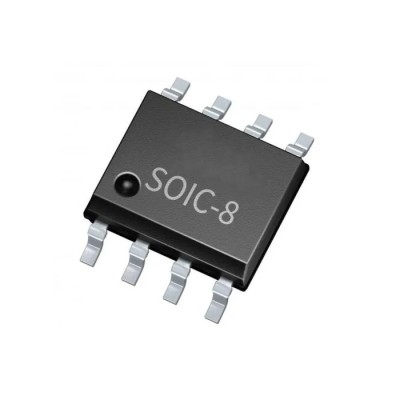

The compact SOIC 8-pin package measuring 5mm in length and 1.75mm in height ensures easy assembly on printed circuit boards using surface mount technology. Its design targets replacement of crystal oscillators in electronic designs by employing phase-locked loop (PLL) techniques for frequency multiplication and clock distribution.

This clock buffer offers a low cost and reliable solution for electronic timing needs without automotive standards or approvals, best suited for general semiconductor clock buffering applications. It supports a maximum input frequency of 50 MHz and is compatible with most popular CPUs and timing circuits.

Key technical parameters include operating voltage from 3.3V to 5V, temperature tolerance from 0 to 70 Celsius, and low jitter clock outputs enabling precise timing control. The device is part of the 501MILF series by Renesas Electronics, known for quality and performance.

Operates over a 3.3 to 5 volt supply voltage range providing flexibility. Compact 8-pin SOIC package ensures easy PCB layout integration. Maximum input frequency of 50 MHz supports common clocking needs. Low jitter improves system timing accuracy.

Surface mount technology compatible for automated assembly. Maintains stable performance between 0 and 70°C operating temperature. No automotive grade certifications; intended for industrial/general use. Widely compatible with clock generation and CPU timing systems.

Cost-effective PLL-based clock buffer for frequency multiplication.

This product is ideal for industrial, electronics manufacturing, communications, and embedded system design applications requiring stable clock distribution and propagation. For more advanced integration and design tools, refer to Renesas technical documents and design resources.
