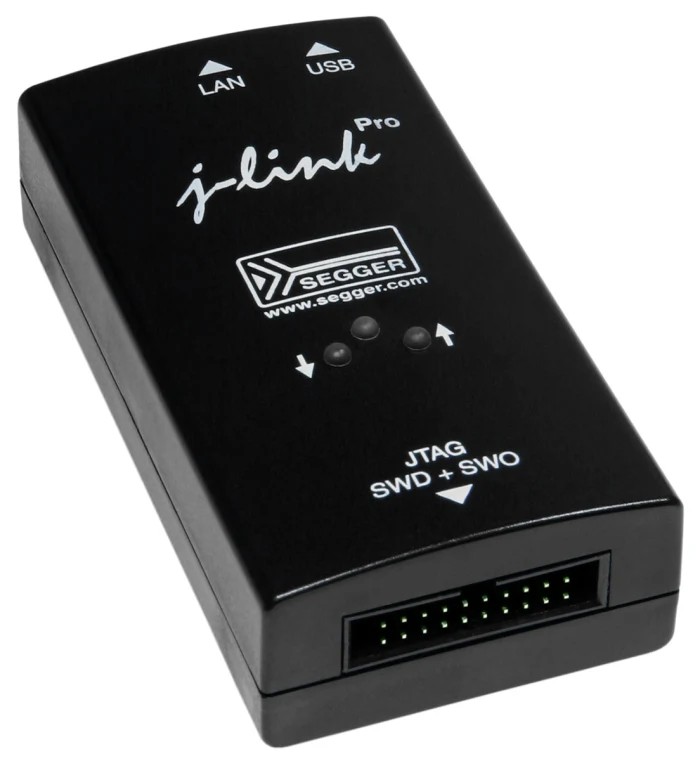

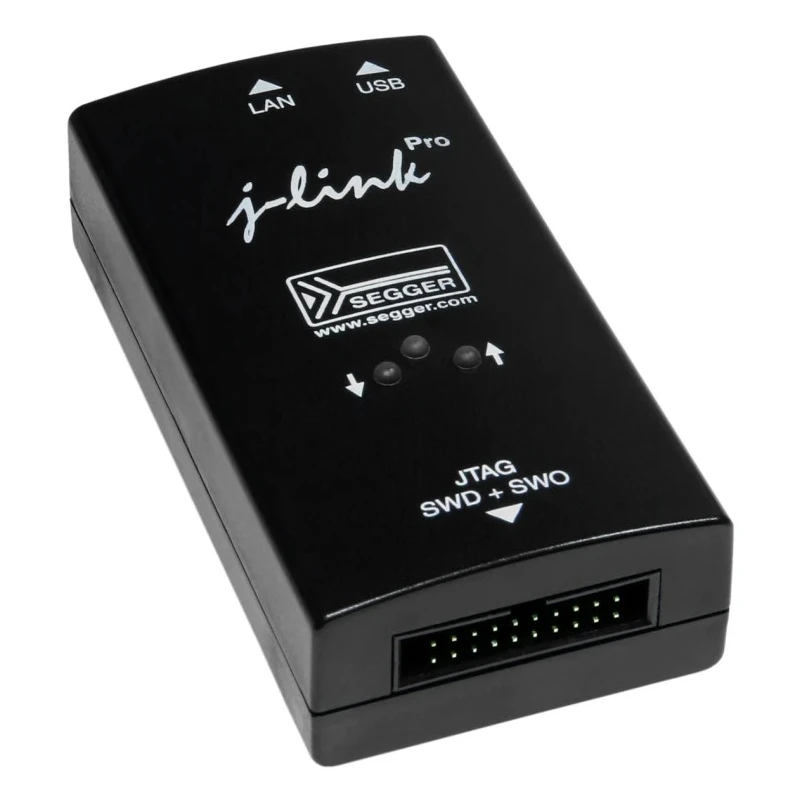

SEGGER Programmers & In-Circuit Emulator J-Link PRO Emulator 8.12.00 J-Link PRO

SEGGER 8.12.00 J-Link PRO Programmers & In-Circuit Emulator J-Link PRO Emulator is a sophisticated JTAG/SWD debug probe designed for high-performance programming and debugging of a broad spectrum of microcontrollers. This device supports various processor cores including ARM7, ARM9, ARM11, Cortex-A5, Cortex-A8, Cortex-A9, Cortex-M0, M1, M3, M4, M7, Cortex-R4, and R5, as well as Microchip PIC32 and Renesas RX series. Its integrated licenses facilitate unlimited breakpoints in Flash memory, enhancing debugging flexibility and capability for embedded system developers.

The J-Link PRO probe features direct download capability into Flash memory for most supported microcontrollers with a download speed of up to 3MB per second. It provides Ethernet connectivity via a 10/100 RJ45 socket which enables remote operation over wired or wireless networks, expanding the usability in varied development environments. A built-in web interface simplifies TCP/IP configuration and device management.

Designed to support multiple target interfaces such as JTAG and SWD, the probe automatically recognizes the core under debug and supports concurrent CPU access by multiple applications. The device supports adaptive clocking and offers a wide target voltage range of +1.2 to +5 volts DC, with the ability to monitor all JTAG signals and measure the target voltage.

Additional features include embedded trace buffer (ETB) support, high maximum target interface speed of 50 MHz, maximum SWO sampling speed of 100 MHz, and robust hardware options with various target adapters and optical isolation adapters to suit different debugging scenarios. The product is powered through a USB connector, featuring LED indicators for power and reset status, and galvanic isolation from the host system via Ethernet for enhanced safety.

It includes a comprehensive software package compatible across Windows, Linux, and Mac OS X platforms, with a memory viewer tool (J-Mem) and an available Software Development Kit (SDK). The product is supported by two years of free software updates and technical support, targeting professional industrial, laboratory, embedded systems development, and manufacturing testing environments.

Supports dual interfacing via USB 2.0 High Speed and Ethernet RJ45 socket connections for flexible connectivity. Wide processor support including ARM cores, Microchip PIC32, and Renesas RX series enhances device compatibility.

Automatic core recognition and support for multiple debugging applications increase efficiency in concurrent development workflows. Offers adaptive clocking, signal monitoring, and target voltage measurement for detailed control during debugging.

Embedded Trace Buffer (ETB) support and high-speed sampling facilitate advanced performance monitoring. Comes with extensive target adapters and isolator boards to enable diverse hardware configuration options. Cross-platform support and comprehensive software toolchain simplify integration into existing workflows.

Powered by USB and features robust galvanic isolation for safe operation in industrial settings.

This SEGGER J-Link PRO Emulator is essential for professional engineers and developers working on embedded systems, microcontroller programming, hardware debugging, and production programming. It is widely used across industrial, electronics manufacturing, research laboratories, and development facilities focusing on microcontroller-based applications.
