SEGGER Development Kit Accessory Adapter 1.0 V to 3.6 V Adjustable Output Supply for 8.06.18 J-Link Target Supply adapter

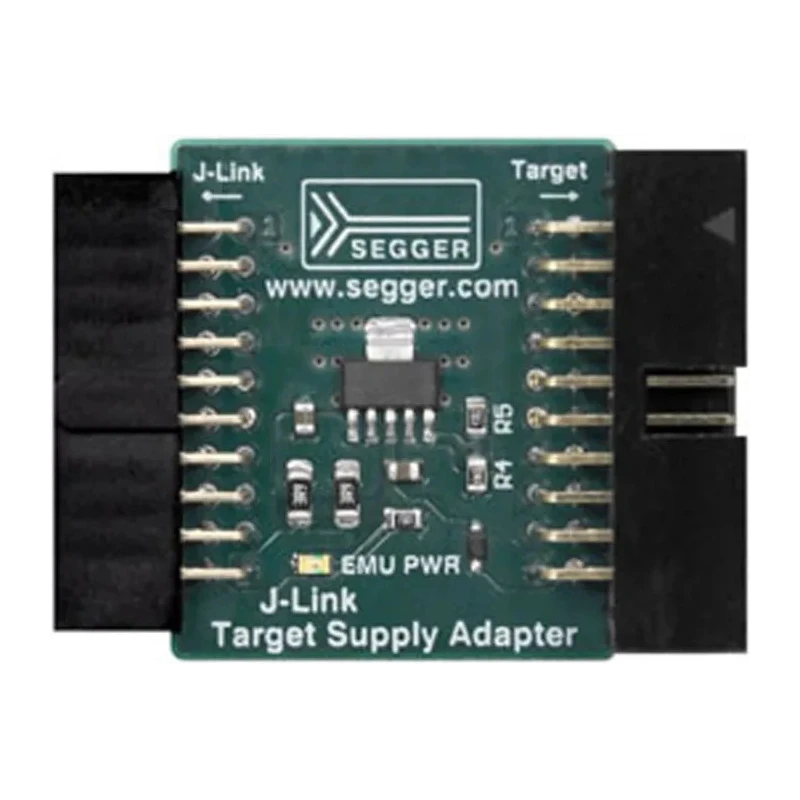

SEGGER 8.06.18 J-Link Target Supply adapter is a high-quality adapter designed as a development kit accessory to provide adjustable power supply voltages to target boards during development and debugging. It is primarily intended for use with J-Link probes, offering a reliable way to supply power directly to the target device.

This adapter incorporates the MCP1826T low-dropout (LDO) voltage regulator to ensure stable and precise voltage output. The input connection to the adapter is made via a 20-pin 0.1 inch socket that mates with the corresponding output from a J-Link probe.

The output to the target device is provided via a 20-pin 0.1 inch header. The output voltage can be adjusted by changing an onboard resistor, allowing voltage settings from +1.0 V at 150 mA up to +3.6 V at 400 mA. The default factory configuration supplies +3.3 V at 400 mA, suitable for a wide variety of embedded development environments.

The adapter includes a Power On LED that provides visual feedback when power is being supplied to the target. It is compatible with multiple Segger J-Link models, including the J-Link BASE Emulator, J-Link PRO, J-Link ULTRA+, J-Link PLUS, Flasher Portable, and Flasher ARM, making it a versatile accessory for debugging and programming embedded systems.

This device is suitable for use in electronics development laboratories, embedded system testing, manufacturing test benches, and educational STEM toolkits. It helps developers to power embedded targets safely and reliably during firmware flashing and debugging sessions.

The adapter features an MCP1826T LDO voltage regulator for stable output. It connects to J-Link probes via a 20-pin 0.1in socket input. The output is delivered through a 20-pin 0.1in header to the target device. Output voltage is adjustable from +1.0 V at 150 mA up to +3.6 V at 400 mA depending on resistor configuration.

Default output voltage is +3.3 V at 400 mA for standard use cases. Includes a Power On LED indicator for operational status. Compatible with various models including J-Link BASE Emulator, PRO, ULTRA+, PLUS, Flasher Portable, and Flasher ARM.
