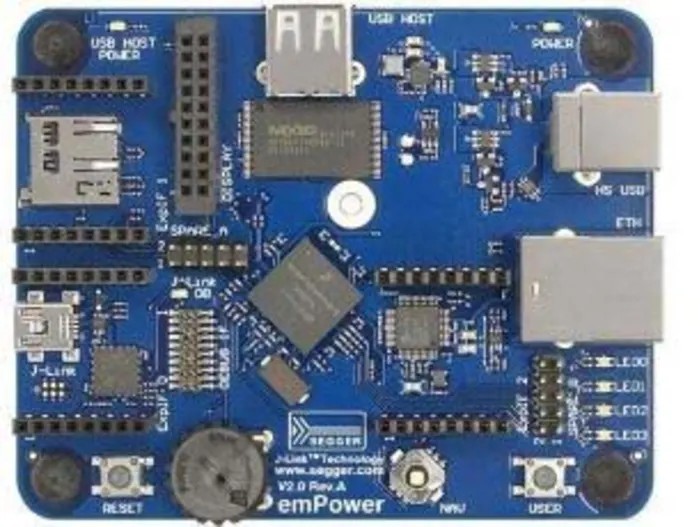

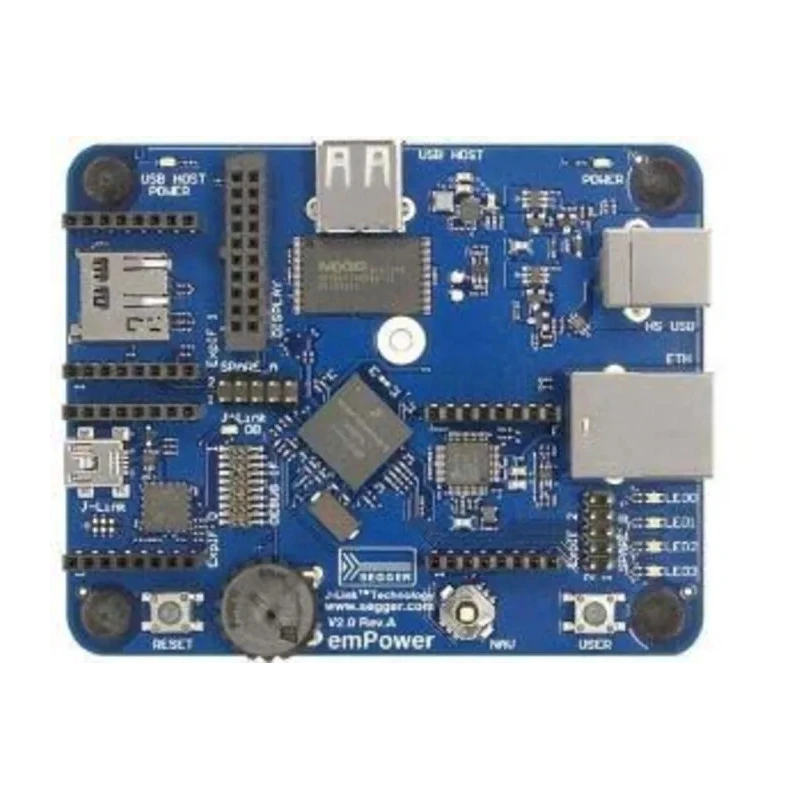

SEGGER emPower MCU Evaluation Board with ARM Cortex-M4 MK66FN2M0VMD18 180MHz 1GB NAND Flash 4x Bi-color LEDs 6.30.00 emPower

The SEGGER 6.30.00 emPower MCU Evaluation Board offers a robust and fully integrated platform for embedded system development featuring the NXP Kinetis K66 microcontroller with an ARM Cortex-M4 core running at 180MHz. This evaluation board is designed to accelerate development cycles by integrating SEGGER's highly-regarded middleware including embOS RTOS, emFile file system, emWin graphics library, emUSB host and device functionality, and embOS/IP TCP/IP stack with web server demonstration.

This evaluation board incorporates a 1GB NAND Flash for extensive non-volatile storage and includes a 1.8-inch LCD with a resolution of 160x128 pixels. The device is powered exclusively via USB and integrates both high-speed USB device (B-type connector) and full-speed USB host (A-type receptacle) interfaces providing versatile connectivity options.

The board includes an on-board SEGGER J-Link OB debug probe (based on STM32F072 MCU) that supports SWD and SWO debugging and tracing, but does not have VCOM support. Developers benefit from enhanced debugging capabilities without additional hardware.

Three expansion connectors provide access to I2C, SPI, UART, CAN buses, GPIO/timer signals, analog inputs, and power supply lines compatible with 3.3V SExI modules, facilitating easy extension with additional modules. A dedicated display adapter connector supports small TFT displays with SPI and PWM backlight control.

User interface features include a microSD card slot, a four+one way joystick with a fire button, a reset button, a rotary potentiometer as analog input, and four bi-color LEDs for status indication. The compact footprint of 99 mm x 80 mm makes it suitable for desktop evaluation and embedded prototyping.

This product is compliant with RoHS directives and requires no manual configuration such as shorting links or solder jumpers, enabling immediate use upon connection. It is ideal for industrial, laboratory, and educational use cases requiring rapid MCU application development, debugging, and testing.

Includes ARM Cortex-M4 MK66FN2M0VMD18 MCU running at 180MHz. Supports comprehensive SEGGER middleware accelerating embedded development. On-board J-Link OB debug probe for advanced debugging. Three expansion interfaces with multiple communication buses and power lines.
