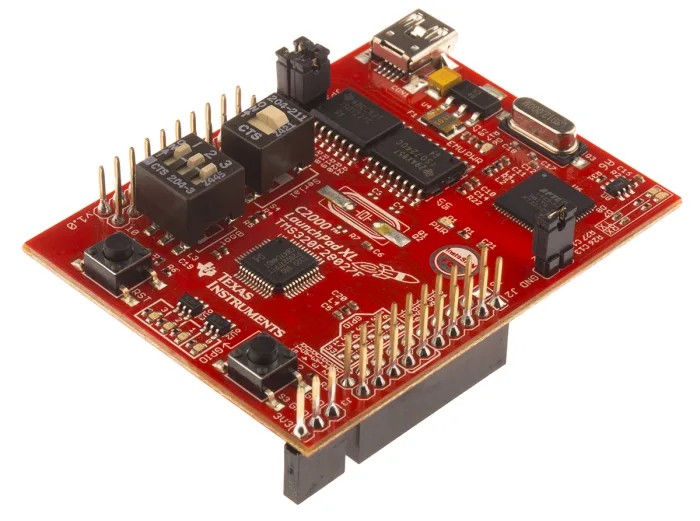

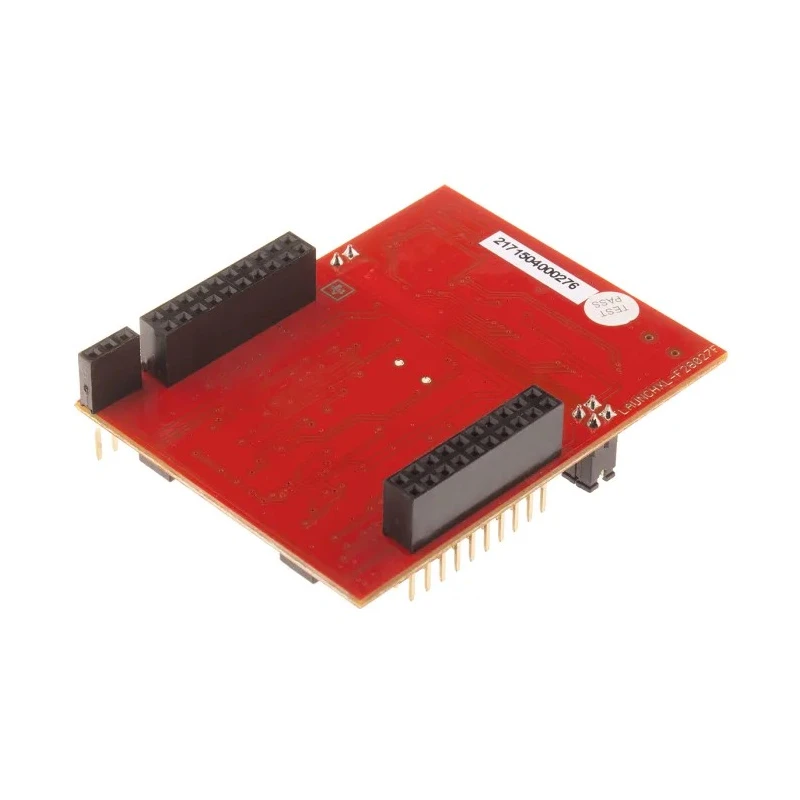

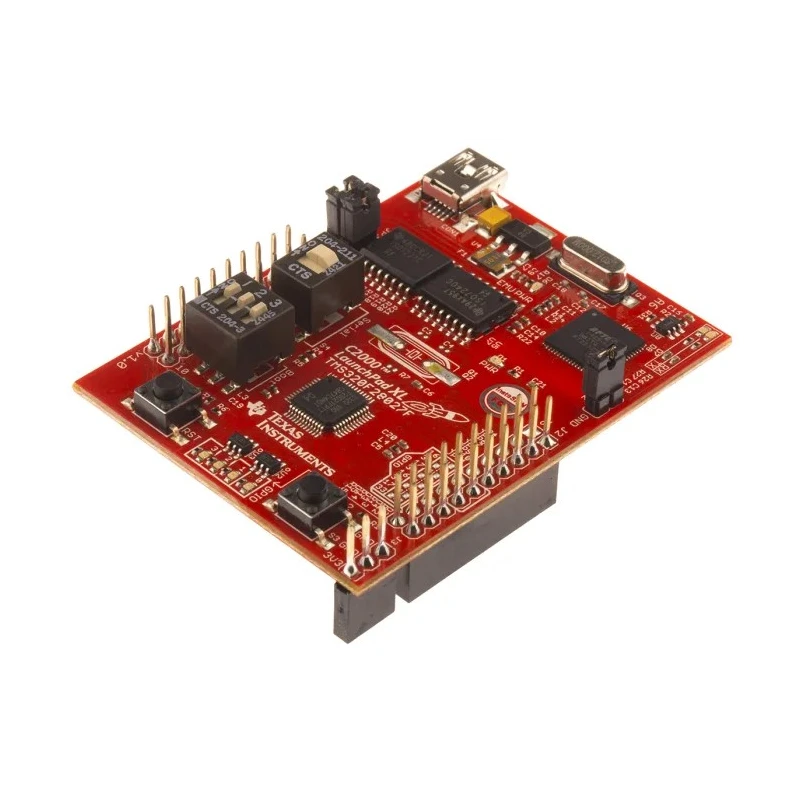

Texas Instruments InstaSPIN C2000 Piccolo LaunchPad Evaluation Kit LAUNCHXL-F28027F

Texas Instruments LAUNCHXL-F28027F InstaSPIN Evaluation Kit is a specialized C2000 Piccolo LaunchPad designed for efficient real-time, closed-loop motor control development using the InstaSPIN-FOC technology embedded in the TMS320F28027F microcontroller.

This evaluation board offers developers an easy-to-use platform enabling rapid identification, tuning, and control of three-phase motor systems, making it ideal for applications in power electronics such as motor control, digital power supplies, solar inverters, LED lighting, and precision sensing.

The kit features a built-in isolated XDS100v2 JTAG emulator that supports seamless real-time in-system programming and debugging through USB connectivity. The presence of CPU reset and programmable push-buttons enhances the user experience during development and testing phases.

Software support includes the Code Composer Studio integrated development environment (IDE) alongside controlSUITE software, providing comprehensive examples, libraries, and application software to simplify general embedded system development. Additionally, MotorWare offers drivers, modules, and InstaSPIN-FOC projects enabling compatibility with various BoosterPacks for extended functionality.

A graphical user interface (GUI) further facilitates development workflows, enabling intuitive configuration and control of motor drive applications.

The kit package contents include the InstaSPIN-FOC enabled C2000 Piccolo LaunchPad evaluation board (model LAUNCHXL-F28027F), a mini USB cable for connection and programming, and a quick start guide to assist users in setup and deployment.

This evaluation board is suitable for industrial, laboratory, and educational use cases in motor control, robotics, power electronics, and embedded system development workflows. Based on the TMS320F28027F microcontroller with InstaSPIN-FOC motor control technology.

Enables quick identification, automatic tuning, and control of three-phase motors. Includes built-in isolated XDS100v2 JTAG emulator for real-time programming and debugging via USB. Supports development of power electronics applications like digital power supplies and solar inverters.

Equipped with Code Composer Studio IDE and controlSUITE software with libraries and example projects. Provides MotorWare software with drivers and InstaSPIN-FOC example projects for BoosterPacks. Includes graphical user interface (GUI) for easier motor control development.

Kit package contains the InstaSPIN-FOC enabled LaunchPad, mini USB cable, and quick start guide. Explore more Evaluation Boards and motor control development tools at EnvMart for precise, industrial-grade embedded solutions.
