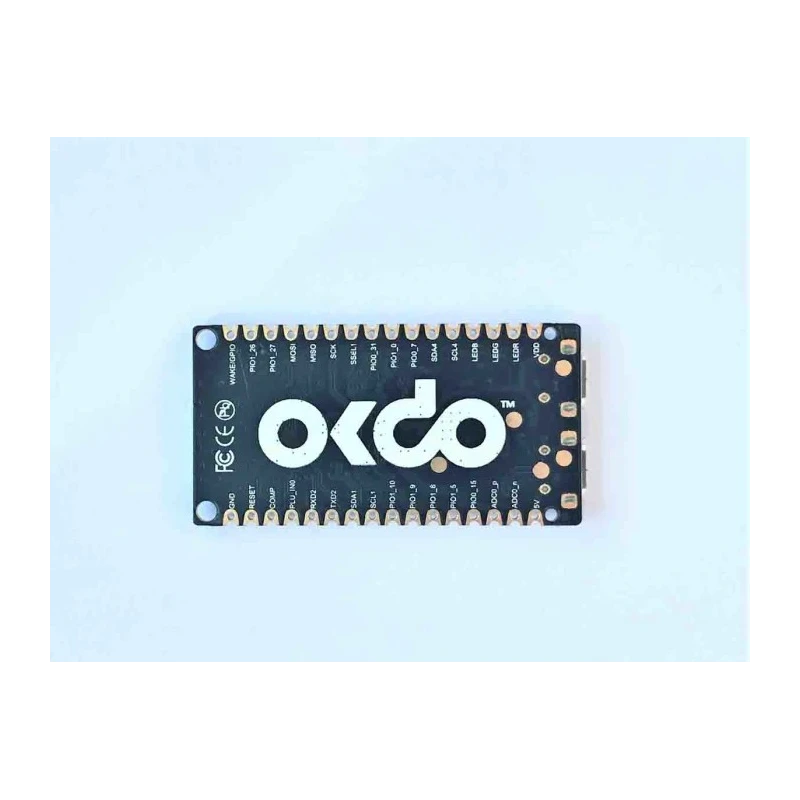

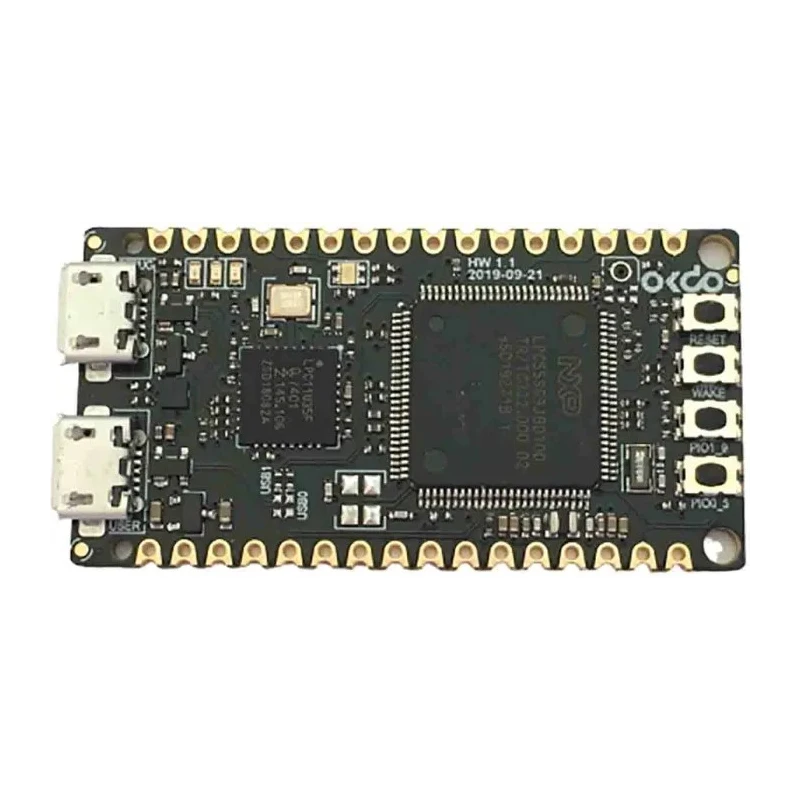

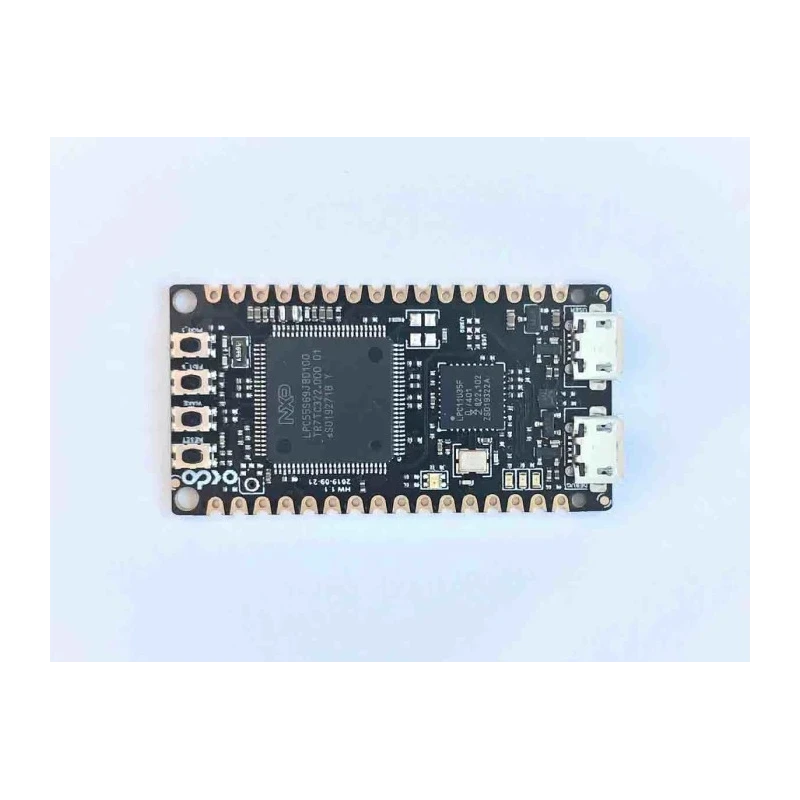

Okdo E1 Ultra-Low-Cost Evaluation Board Based on NXP LPC55S69 Dual-Core Cortex M33 Microcontroller OKLPC5569R0-EVB
Specifications
| Country of Origin | China |
|---|---|
| Brand | Okdo |
| Model | OKLPC5569R0-EVB |
| Interfaces | USB connector |
| Standards/Approvals | RoHS |
| Device Core | Cortex |
| Kit Classification | Evaluation Board |
| Kit Name | E1 |
| For added capabilities, try the E1 Expansion board | 1883273 |
Key Features
- The board features a 640kbyte flash LPC55S69 microcontroller for high-performance operations.
- Includes an integrated CMSIS-DAP v1.0.7 debugger based on LPC11U35.
- Equipped with a 16MHz crystal oscillator with PLL up to 100 MHz and a 32kHz RTC crystal.
- Incorporates four user switches and a tri-color LED for user interaction and status indication.
- Provides USB connectivity and UART over USB virtual COM port interfaces.
- Supports two 16-way expansion connectors for modular expansion.
- Fully supported by MCUXpresso IDE on Linux, MacOS, and Windows 10 platforms.
- Includes software drivers, application software, and SDK for rapid project initiation.
Product Description
Okdo OKLPC5569R0-EVB Evaluation Board is an advanced ultra-low-cost development platform powered by the NXP LPC55S69 dual-core Cortex® M33 microcontroller. This 640kbyte flash MCU supports high efficiency, core enhancements, and advanced security features suitable for industrial IoT, secure embedded systems, building automation, and consumer electronics.
The board integrates an in-built CMSIS-DAP v1.0.7 debugger based on LPC11U35, simplifying debugging and programming tasks. It features a 16MHz crystal oscillator with a PLL capable of achieving clock speeds up to 100 MHz, alongside a 32kHz crystal for real-time clock operations.
The design includes four user switches and a three-color LED for user interfaces and status indication. Communication interfaces are extensive, comprising a user USB connector and UART over USB virtual COM port. Expansion potential is provided via two 16-way expansion connectors, allowing developers to add peripherals and custom modules.
This evaluation board is fully compatible with the MCUXpresso IDE, which supports Linux, MacOS, and Windows 10 operating systems. It comes with software drivers, application software, and comprehensive SDK examples that expedite development and prototyping.
The OKLPC5569R0-EVB is RoHS compliant and manufactured in China. It is ideal for developers working on Industrial IoT, embedded security applications, building control systems, automation, and consumer electronics requiring reliable and energy-efficient microcontroller solutions.
The board features a 640kbyte flash LPC55S69 microcontroller for high-performance operations. Includes an integrated CMSIS-DAP v1.0.7 debugger based on LPC11U35. Equipped with a 16MHz crystal oscillator with PLL up to 100 MHz and a 32kHz RTC crystal.
Incorporates four user switches and a tri-color LED for user interaction and status indication. Provides USB connectivity and UART over USB virtual COM port interfaces. Supports two 16-way expansion connectors for modular expansion.
Fully supported by MCUXpresso IDE on Linux, MacOS, and Windows 10 platforms. Includes software drivers, application software, and SDK for rapid project initiation. Designed for embedded IoT, industrial, building automation, and consumer electronics uses.
Explore more development options with the optional E1 Expansion Board (1883273). For more advanced development and customization, this evaluation board stands as a reliable and cost-effective solution to accelerate embedded system design.
Browse the Electronics & Electricals category at EnvMart for more microcontroller development tools and Evaluation Boards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board is powered by the NXP LPC55S69 dual-core Cortex M33 microcontroller.
The LPC55S69 microcontroller features a flash memory capacity of 640kbytes.
It provides a USB connector and UART over USB virtual COM port interfaces for communication.
The board is equipped with a 16MHz crystal oscillator and a PLL capable of achieving clock speeds up to 100 MHz.
It is fully supported by the MCUXpresso IDE on Linux, MacOS, and Windows 10 platforms.
It incorporates four user switches and a tri-color LED for user interaction and status indication.
This model supports two 16-way expansion connectors for modular expansion.
The evaluation board is manufactured in China.
Yes, it is RoHS compliant.
For added capabilities, the optional E1 Expansion Board (1883273) can be used with this evaluation board.
It is designed for applications in industrial IoT, secure embedded systems, building automation, and consumer electronics.
It includes software drivers, application software, and an SDK for rapid project initiation.
