MikroElektronika Mikromedia Plus MCU Shield Evaluation Board for PIC32 Microcontroller MIKROE-1437

The MikroElektronika MIKROE-1437 Mikromedia Plus MCU Shield is a specialized Evaluation Board designed to expand the functionality of the PIC32MX7 mikromedia Plus platform. It is tailored for developers working with PIC32 microcontrollers, delivering a comprehensive suite of connectivity and interfacing options ideal for embedded system prototyping and development.

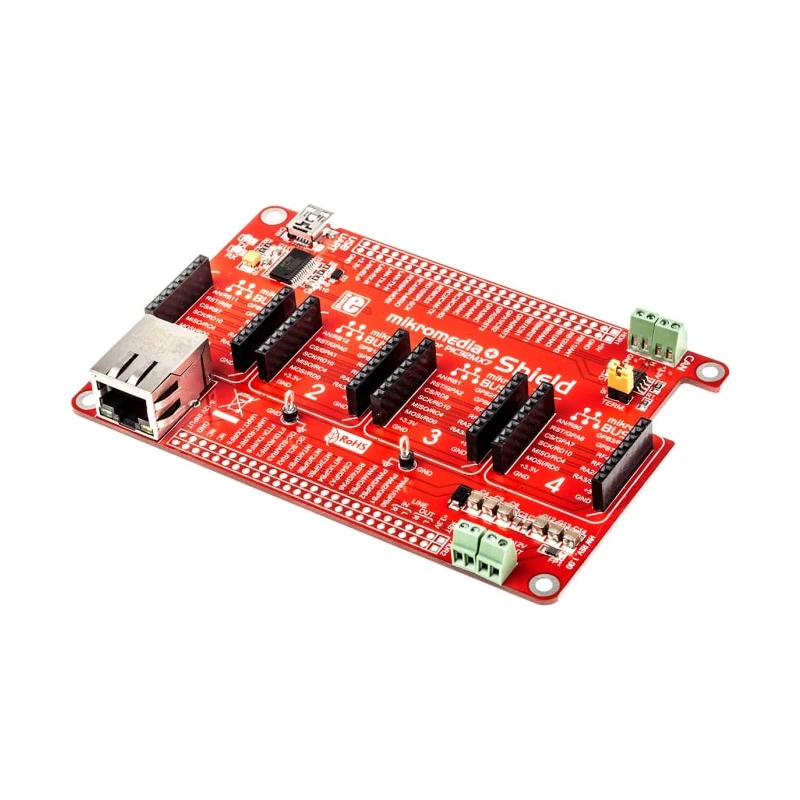

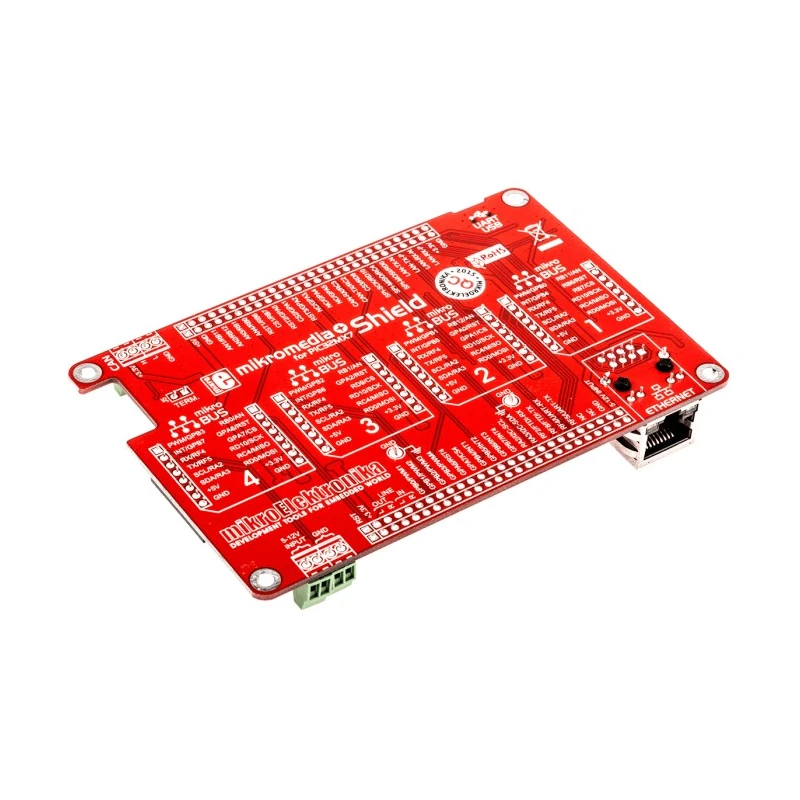

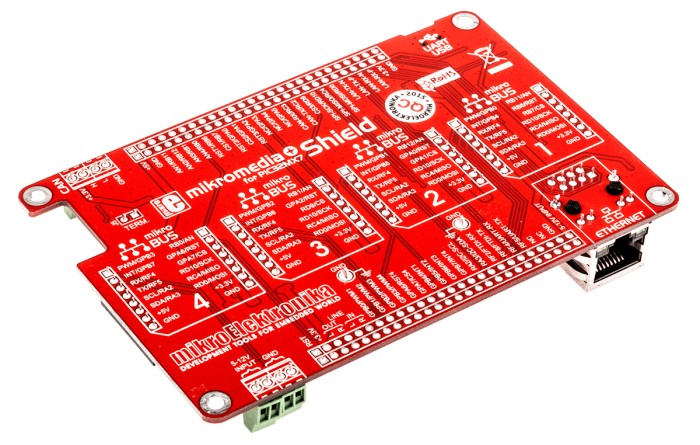

This evaluation shield incorporates a USB Mini-B connector equipped with an onboard FTDI USB-UART bridge, enabling seamless serial communication capabilities essential for debugging and device programming. The inclusion of an RJ-45 Ethernet connector and an integrated CAN transceiver broadens the shield's networking options, supporting both wired internet and controller area network communications.

Robust interface options such as CAN screw terminals and power supply screw terminals offer secure and flexible electrical connections, catering to complex application needs. The shield also supports expansion with four mikroBUS sockets allowing the attachment of additional mikroElektronika click boards, facilitating feature augmentation without redesign.

Additional side connection pads provide convenient points for hardware probes and signal access, enhancing debugging and development efficiency, while included ground pins support the use of oscilloscopes for signal monitoring.

Manufactured in compliance with RoHS directives, this product ensures adherence to environmental safety standards. Coming from Serbia, the shield is built with quality components tailored for industrial and educational use cases including embedded system research, industrial automation prototyping, and educational development projects.

The shield extends features for the PIC32MX7 mikromedia Plus development board. Includes USB Mini-B connector integrated with FTDI USB-UART chip for serial communication. Equipped with RJ-45 Ethernet connector and CAN transceiver for network connectivity.

Power and CAN screw terminals provide robust interfacing options. Features 4 mikroBUS sockets supporting additional click boards integration. Side connection pads and ground pins facilitate easy debugging with oscilloscopes.

Compliance with RoHS standards ensures environmentally responsible manufacturing. Explore the MikroElektronika range of microcontroller development tools and shields at EnvMart for comprehensive embedded system solutions and swift prototyping platforms.
