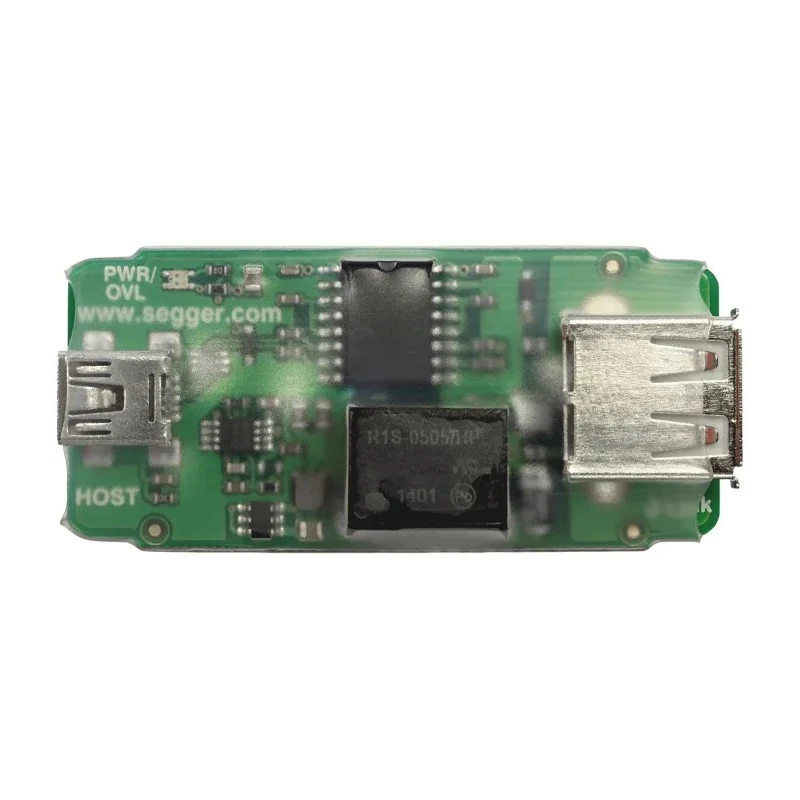

SEGGER Communication & Wireless Development Tool USB Isolator 3kV DC Transformer Isolation RoHS 8.07.02 USB Isolator

SEGGER 8.07.02 USB Isolator is a Communication & Wireless Development Tool designed to provide electrical isolation between J-Link Probes and Host PC USB connections. This isolator is essential when development tools are not referenced to the same ground as the target application, preventing ground loops and enhancing measurement accuracy.

The product features 3kV DC transformer isolation for 1 second, meeting stringent industry isolation requirements. It supports USB 2.0 Full Speed communication with a propagation delay of maximum 70 nanoseconds, which ensures minimal signal latency. The maximum VBus current supplied to the J-Link Probe is 200mA, making it suitable for a wide array of J-Link tools and production programmers that use USB connections.

The USB isolator includes a mini-USB port for host connection and a USB-A connector for connecting to the J-Link Probe. Two LEDs provide visual indication of VBus power status and overload conditions, improving operational diagnostics and safety. Short-circuit protection further safeguards the device and connected equipment from electrical faults.

This isolator is compatible with all J-Link tools and production programmers that use USB, including the suggested J-Link Base model, making it an integral component for development environments requiring electrical isolation. The device complies with RoHS standards, ensuring environmental and safety compliance.

The device offers 3kV DC transformer isolation for 1 second to ensure safe isolation. Maximum propagation delay is 70 nanoseconds, suitable for high-speed USB 2.0 FS communication. Supports maximum 200mA VBus current to the connected J-Link Probe.

Includes short-circuit protection to prevent damage from electrical faults. Equipped with mini-USB host connection and USB-A J-Link connection ports. Features two LEDs indicating VBus Power On and VBus Overload status for operational monitoring.

This Communication & Wireless Development Tool is ideal for electronic development, debugging, and production programming applications where reliable electrical isolation is necessary to protect sensitive devices and ensure accurate results. It serves industrial, research, laboratory, and manufacturing sectors requiring robust interface tools.
