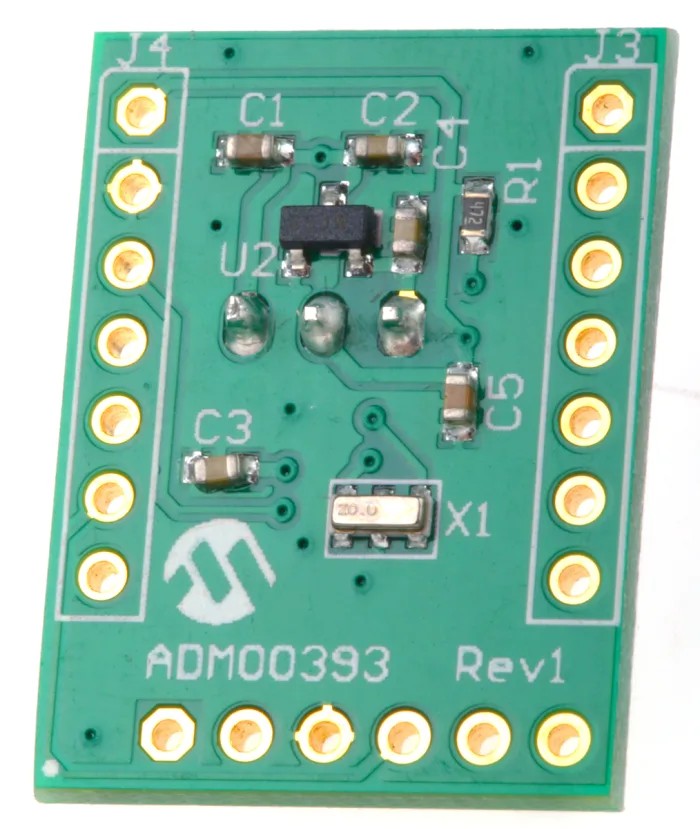

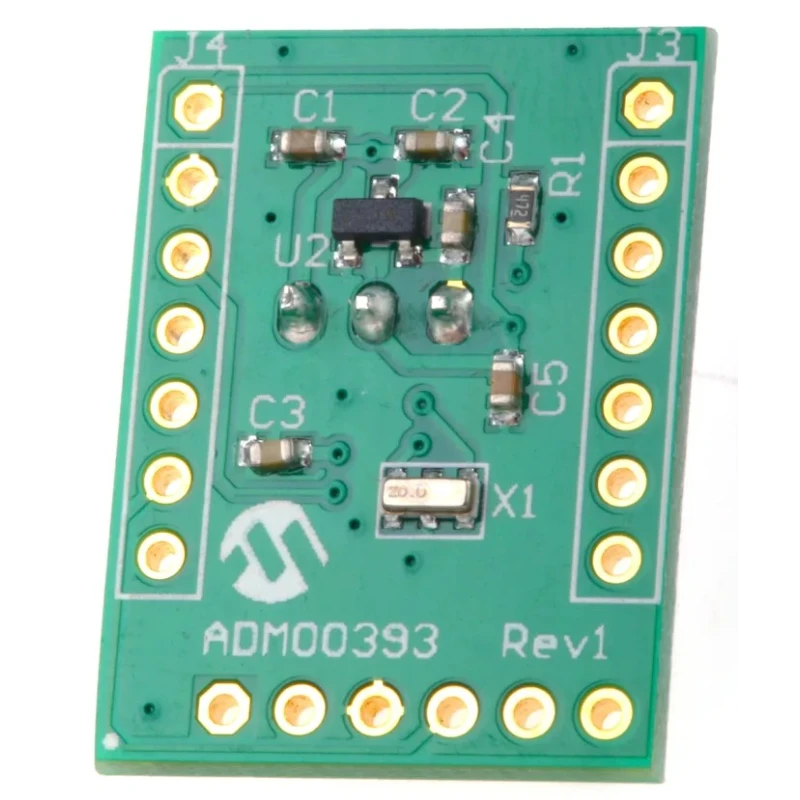

Microchip MCP2200 Breakout Module USB 2.0 to UART Protocol Converter 12MHz ADM00393
Specifications
| Country of Origin | China |
|---|---|
| Brand | Microchip |
| Model | MCP2200 |
| Technology | USB 2.0 to UART Protocol Converter |
| Interface Type | UART, USB |
| For Use With | USB-to-UART serial converter MCP2200 device |
| Standards/Approvals | ISO/TS-16949:2009, ISO 9001:2000 |
| Maximum Frequency | 12MHz |
| Kit Classification | Breakout Module |
| Featured Device | MCP2200 |
| Kit Name | MCP2200 |
| Standards/ApprovalsISO/TS-16949 | 2009, ISO 9001:2000 |
| ISO/TS-16949 | 2009, ISO 9001:2000 |
Key Features
- Supports USB 2.0 to UART protocol conversion with a maximum frequency of 12 MHz.
- Dual In-Line Package (DIP) form factor for easy integration.
- Provides UART Tx and Rx, RTS and CTS signals for serial communication.
- Features 8 general-purpose (GP) lines with user-selectable power supply of 3.3 V or 5 V via jumper.
- Includes PICkit™ Serial Analyzer header for UART communication debugging.
- Comes supplied with a mini USB cable for connectivity.
- Manufactured in China ensuring consistent quality and reliable performance.
Product Description
Microchip MCP2200 Breakout Module ADM00393 is a communication and wireless development tool designed for the evaluation and development of the MCP2200 USB-to-UART serial converter device operating at 12 MHz. This breakout module enables seamless USB 2.0 to UART protocol conversion, making it an essential tool for developers working with serial communication interfaces.
The module features a Dual In-Line Package (DIP) form factor board that exposes UART Tx and Rx signals along with RTS and CTS for hardware flow control. It includes 8 general-purpose input/output lines suitable for custom applications. The power supply voltage is user-selectable between 3.3 V and 5 V using an onboard jumper, providing flexibility for different system requirements.

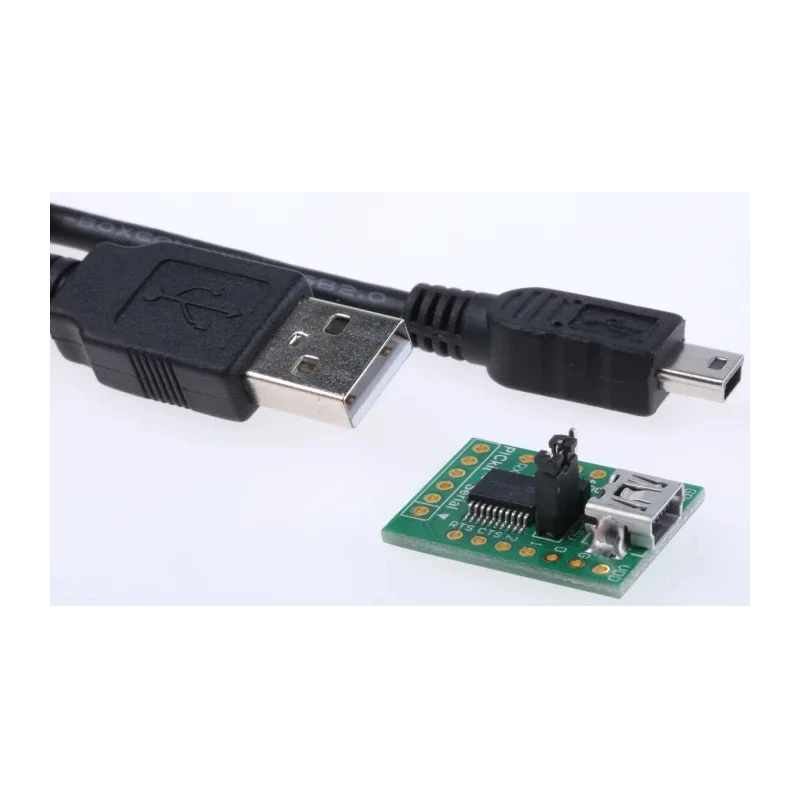

For in-depth communication debugging, the breakout module integrates a PICkit™ Serial Analyzer header facilitating UART communication analysis. Connectivity is simplified with the inclusion of a mini USB cable, enabling direct USB interfacing.
This module adheres to stringent quality standards, including ISO/TS-16949:2009 and ISO 9001:2000 certifications, ensuring robust and reliable operation within industrial, laboratory, and embedded system development environments.
Manufactured in China, the MCP2200 breakout module is ideal for developers working on USB-to-serial converters, embedded system prototyping, and communication interface testing in various applications such as industrial automation, embedded computing, and STEM education.
Supports USB 2.0 to UART protocol conversion with a maximum frequency of 12 MHz. Dual In-Line Package (DIP) form factor for easy integration. Provides UART Tx and Rx, RTS and CTS signals for serial communication. Features 8 general-purpose (GP) lines user-selectable power supply of 3.3 V or 5 V via jumper.
Includes PICkit™ Serial Analyzer header for UART communication debugging. Comes supplied with a mini USB cable for connectivity. Complies with ISO/TS-16949:2009 and ISO 9001:2000 quality standards. Manufactured in China ensuring consistent quality and reliable performance.
Explore more Communication & Wireless Development Tools on EnvMart.
Explore more products in our Communication & Wireless Development Tool category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides UART Tx and Rx signals, along with RTS and CTS signals for hardware flow control in serial communication.
The power supply voltage for the module is user-selectable between 3.3 V and 5 V via an onboard jumper.
This module features both UART and USB interfaces for communication.
Yes, it includes a PICkit™ Serial Analyzer header for UART communication debugging.
The module is designed in a Dual In-Line Package (DIP) form factor for easy integration.
The MCP2200 breakout module complies with ISO/TS-16949:2009 and ISO 9001:2000 quality standards.
It is suitable for applications such as industrial automation, embedded computing, and STEM education.
The module comes supplied with a mini USB cable for connectivity.
The MCP2200 breakout module is manufactured in China.
The kit classification for this product is a Breakout Module.
It is designed for use with the USB-to-UART serial converter MCP2200 device.
