FTDI Chip Communication and Wireless Development Module USB MCU Embedded Host Controller VDIP1

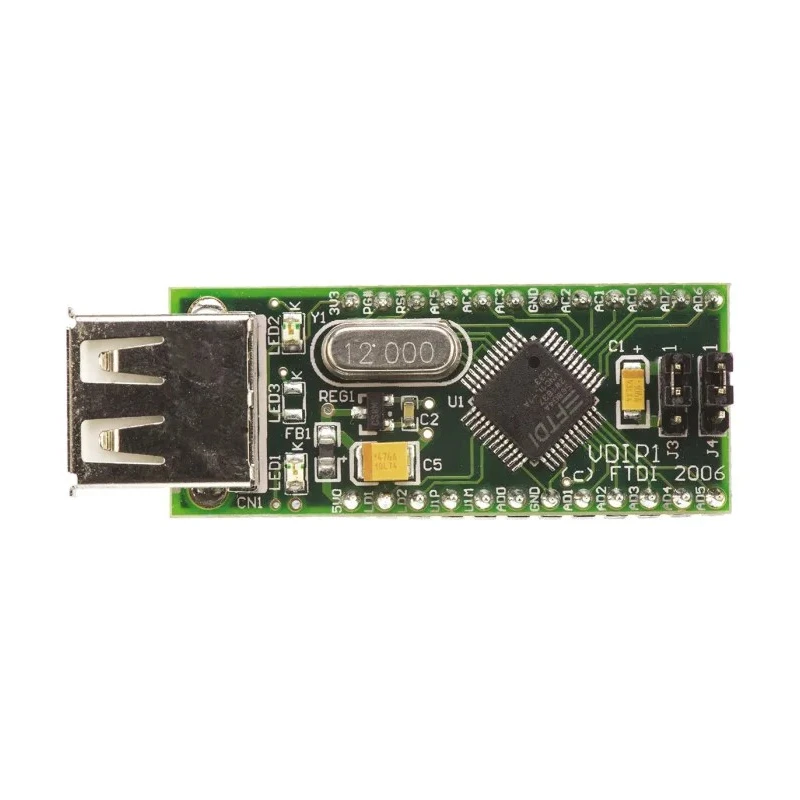

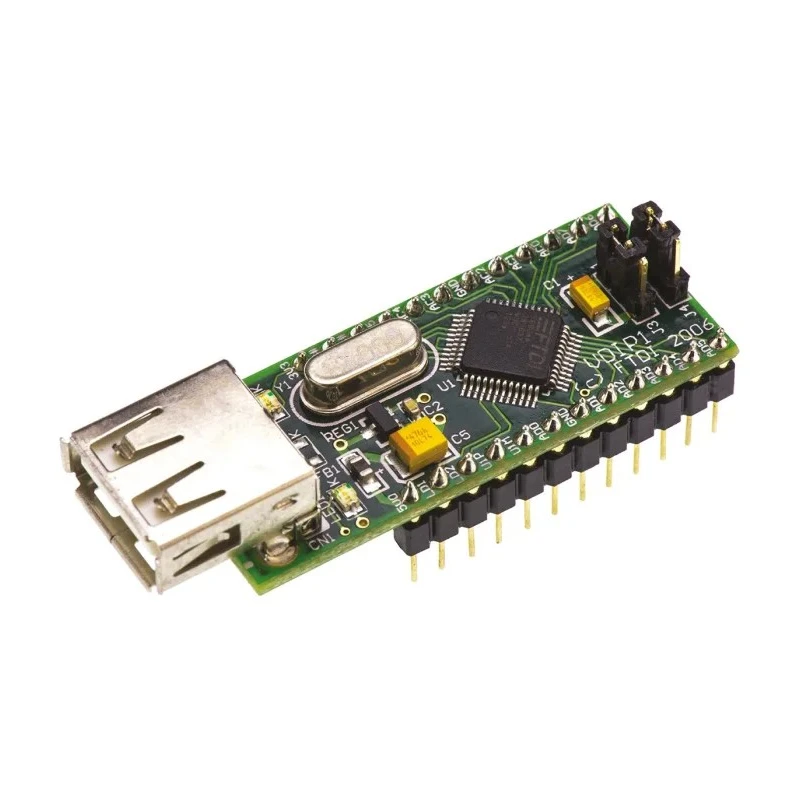

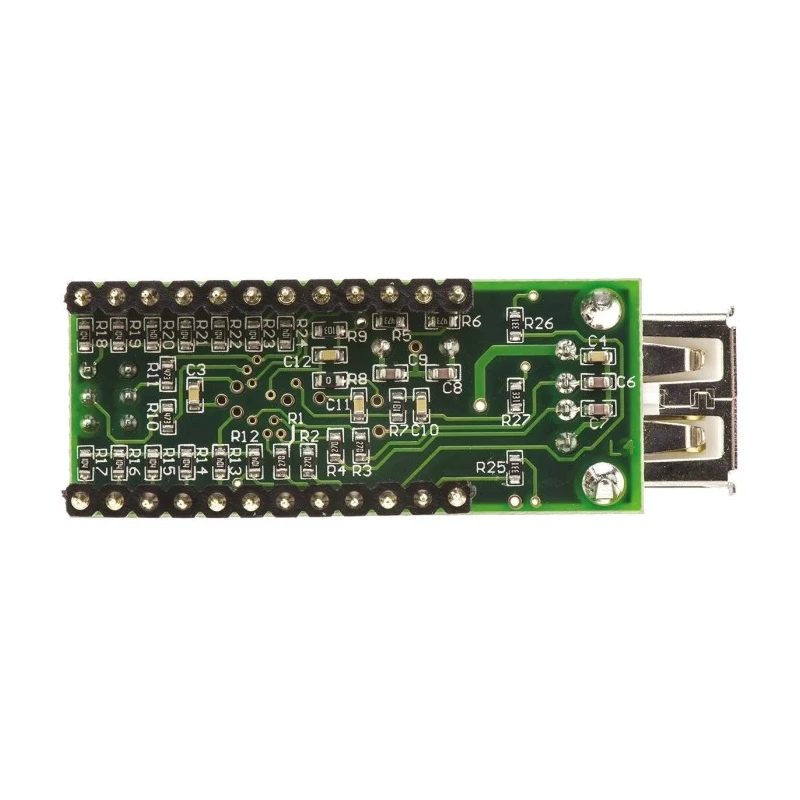

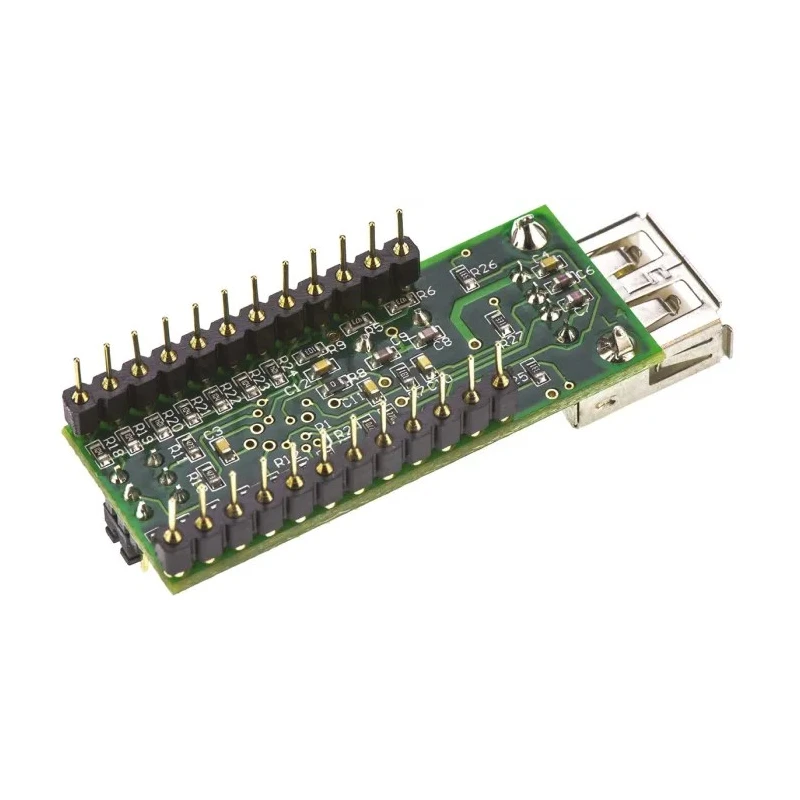

FTDI Chip VDIP1 is a communication and wireless development tool designed as an embedded USB host controller module compatible with the VNC1L IC device. It operates at a maximum frequency of 12 MHz, allowing robust and efficient communication capabilities. The module is mounted on a printed circuit board (PCB) that fits into a 24-pin dual in-line package (DIP) socket, making it ideal for rapid prototyping and development of VNC1L-based designs.

This module provides access to UART, parallel FIFO, and SPI interface pins via AD and AC bus lines, ensuring versatile connectivity options. The built-in microcontroller unit (MCU) and embedded flash memory encapsulate USB device classes and handle USB host interface and data transfer functions seamlessly.

When interfaced with USB mass storage devices such as USB flash drives, the VDIP1 handles the FAT file structure transparently and communicates through UART, SPI, or parallel FIFO interfaces by using a simple command set. It is well-suited for automation systems, IT projects, and embedded applications requiring USB host functionality.

The module draws a single 5 V supply directly from the USB connection and includes power and traffic indicator LEDs for easy monitoring of operation status. It also offers an auxiliary 3.3 V power output rated at 200 mA, allowing the powering of external logic components.

Firmware programming and updates can be performed via USB flash disk or through the UART, parallel FIFO, or SPI interfaces, which are jumper selectable to provide flexible interface options. Control pins PROG# and RESET# are exposed via jumper interfaces for firmware programming control.

The VDIP1 USB module complies with industry-standard directives including Pb-Free and RoHS certifications, ensuring environmentally friendly manufacturing. It is targeted towards communication and wireless development, embedded application prototyping, and educational projects involving USB host control.

MCU embedded USB host controller development kit for VNC1L IC device. Supplied on PCB, fitting 24-pin DIP socket for easy prototyping. Supports UART, parallel FIFO and SPI interface via AD and AC bus pins. Handles USB host interface with inbuilt MCU and embedded flash memory.

Transparent FAT file system handling for USB mass storage devices. Single 5 V supply input from USB connection with power and traffic indicator LEDs. Auxiliary 3.3 V at 200 mA power output to power external logic. Firmware update via USB flash disk or MCU interfaces.

Jumper selectable MCU interfaces (UART, parallel FIFO, SPI). Complies with Pb-Free and RoHS standards.
