onsemi High Voltage Array Diode 200 mA Forward Current Surface Mount SC-74 Package NSVBAS21TMR6T1G

Free Delivery in India | Lowest Global Shipping Charges

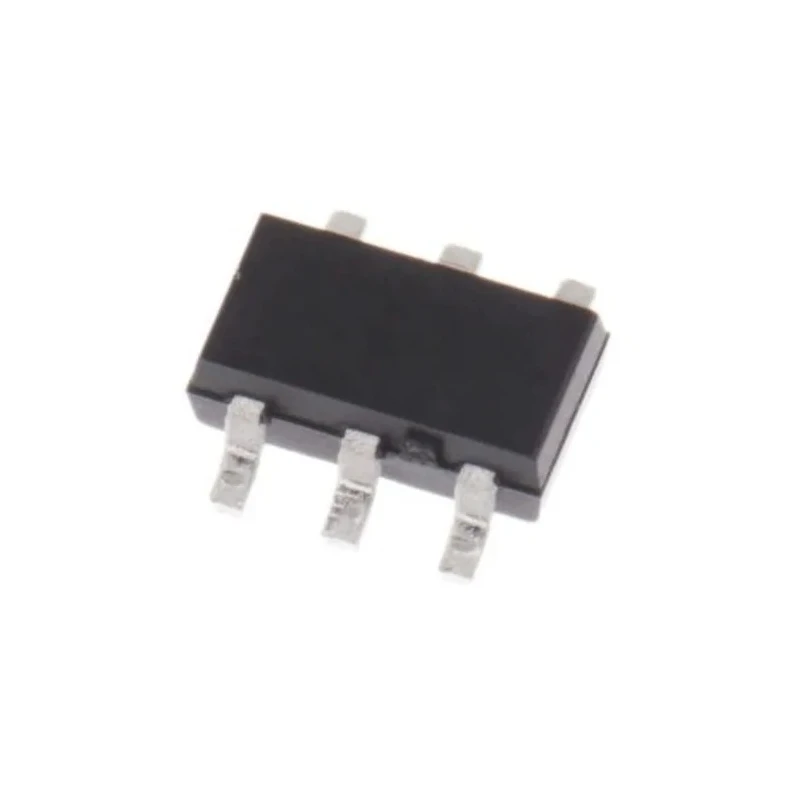

onsemi High Voltage Array Diode 200 mA Forward Current Surface Mount SC-74 Package NSVBAS21TMR6T1G

Name: onsemi High Voltage Array Diode 200 mA Forward Current Surface Mount SC-74 Package NSVBAS21TMR6T1G
Brand: onsemi
SKU: 400484
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1mm
Length	3.1mm
Model	NSVBAS21TMR6T1G
Width	1.7mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SC-74
Minimum Operating Temperature	-55°C
Pin Count	6
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Diode Configuration	Array
Rectifier Type	High Voltage
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	625mA
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	50ns

Key Features

Maximum continuous forward current of 200 mA for reliable operation.
High voltage rectifier diode configuration suitable for low-power circuits.
Compact 6-pin SC-74 surface mount package minimizes board space usage.
Wide operating temperature range from -55°C to 150°C for harsh environments.
Peak non-repetitive forward surge current of 625 mA ensures transient protection.
Low peak reverse current of 100 µA enhances efficiency in switching applications.
Maximum forward voltage of 1 V supports efficient power delivery.
Fast peak reverse recovery time of 50 ns suitable for high-speed switching.

Product Description

onsemi NSVBAS21TMR6T1G is a high voltage array diode featuring three BAS21 high-voltage switching diodes integrated in a compact SC-74 surface mount package, ideally suited for low-power surface mount electronic applications where board space is limited.

This device supports a maximum continuous forward current of 200 mA and exhibits a peak non-repetitive forward surge current of 625 mA, ensuring robust performance under transient conditions.

Its low peak reverse current of 100 µA and maximum forward voltage of 1 V allow for efficient rectification with minimal power losses. The fast peak reverse recovery time of 50 ns enables high-speed switching performance for demanding circuits.

Operating across a wide temperature range from -55°C to 150°C, the NSVBAS21TMR6T1G is suitable for harsh industrial and automotive environments, further supported by qualification to the automotive standard AEC-Q101.

The diode's Pb-free and halogen/BFR free package emphasizes environmental compliance, making it an ideal choice for manufacturers aiming at sustainable electronic designs.

This product is widely used in industrial electronics, automotive electronics, power management circuits, and other semiconductor applications requiring compact, high-voltage switching diodes with reliable performance.

Maximum continuous forward current of 200 mA for reliable operation. High voltage rectifier diode configuration suitable for low-power circuits. Compact 6-pin SC-74 surface mount package minimizes board space usage. Wide operating temperature range from -55°C to 150°C for harsh environments.

Peak non-repetitive forward surge current of 625 mA ensures transient protection. Low peak reverse current of 100 µA enhances efficiency in switching applications. Maximum forward voltage of 1 V supports efficient power delivery.

Fast peak reverse recovery time of 50 ns suitable for high-speed switching. Meets automotive standard AEC-Q101 for demanding automotive applications. Environmentally friendly, Pb-free and halogen/BFR free construction. Explore more semiconductor components and Schottky diodes at EnvMart for your industrial and automotive circuit needs.
