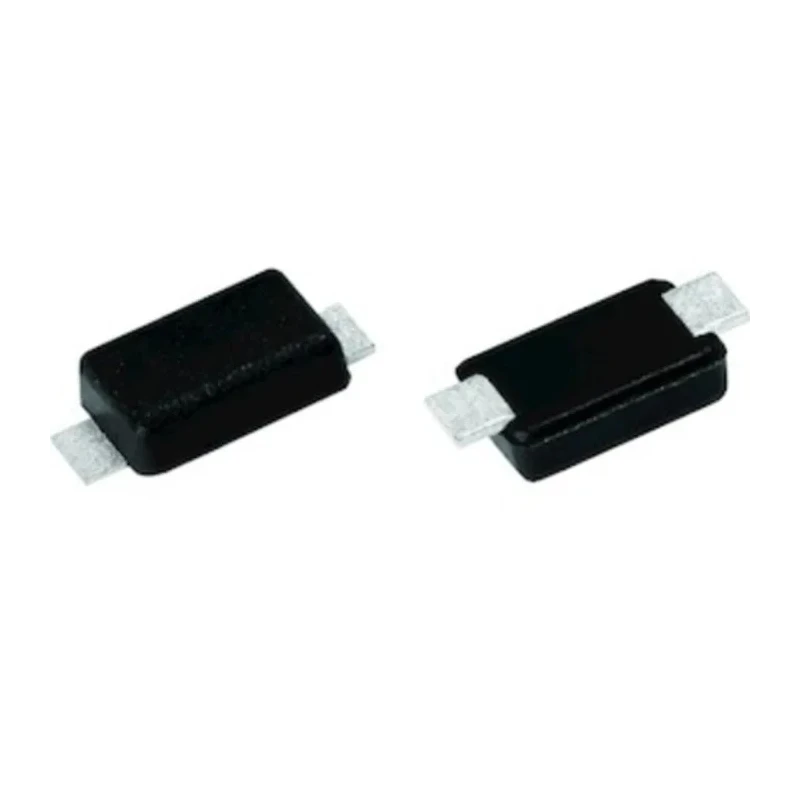

Vishay 200 V 1 A Surface Mount Rectifier & Schottky Diode DO-219AB V1F22HM3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 3.9mm |
| Model | V1F22HM3/H |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | V1X |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.88V |
Key Features
- This diode supports a maximum continuous forward current of 1 A.
- It has a peak reverse repetitive voltage rating of 200 V for robust operation.
- The device features a low maximum forward voltage of 0.88 V for efficiency.
- Operating temperature ranges from -40°C to 175°C suitable for automotive and industrial use.
- The diode package is a surface mount type DO-219AB with two pins.
- The peak non-repetitive forward surge current is rated at 30 A.
- It possesses low leakage current and fast switching speed, optimizing power loss.
- Certified to RoHS and conforms to AEC-Q101 automotive standards.
Product Description
Vishay V1F22HM3/H is a high-performance Schottky diode combining a rectifier and Schottky function in a compact surface mount DO-219AB package. This diode supports a continuous forward current of 1 A and withstands repetitive peak reverse voltages up to 200 V, ensuring reliable operation in demanding environments.
The maximum forward voltage drop is low at 0.88 V, which reduces power dissipation, making it efficient for use in high-frequency inverters, DC/DC converters, freewheeling diodes, and polarity protection circuits.
Its operational temperature range from -40°C to 175°C enables its use across commercial, industrial, and automotive sectors adhering to the AEC-Q101 automotive quality standard. The package is a two-pin surface mount DO-219AB, facilitating automated pick-and-place assembly and compact circuit design.
Maximum continuous forward current: 1 A for consistent current handling. Peak reverse repetitive voltage: 200 V suitable for power supply protection. Low maximum forward voltage: 0.88 V reduces conduction losses. Wide operating temperature range from -40°C to 175°C ensures reliability.
Peak non-repetitive forward surge current of 30 A withstands transient conditions. Compliance with RoHS and automotive AEC-Q101 standards guarantees quality and environmental safety. Compact 3.9mm x 1.9mm x 1.08mm package supports surface mount technology.
Suitable for electronic components in industrial, automotive, and power electronics applications. This Vishay Schottky diode model V1F22HM3/H is a reliable choice for engineers seeking efficient rectification and switching performance in small form factor electronics.
Explore more products in the Schottky Diodes & Rectifiers category at EnvMart for comprehensive semiconductor solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current is 1 A.
The maximum forward voltage drop is 0.88 V.
The operating temperature range is from -40°C to 175°C.
It comes in a surface mount package type DO-219AB with two pins.
The peak non-repetitive forward surge current is rated at 30 A.
It conforms to the AEC-Q101 automotive standard.
The dimensions are 3.9 mm in length, 1.9 mm in width, and 1.08 mm in height.
Yes, it is certified to RoHS standards.
It has a single diode configuration.
