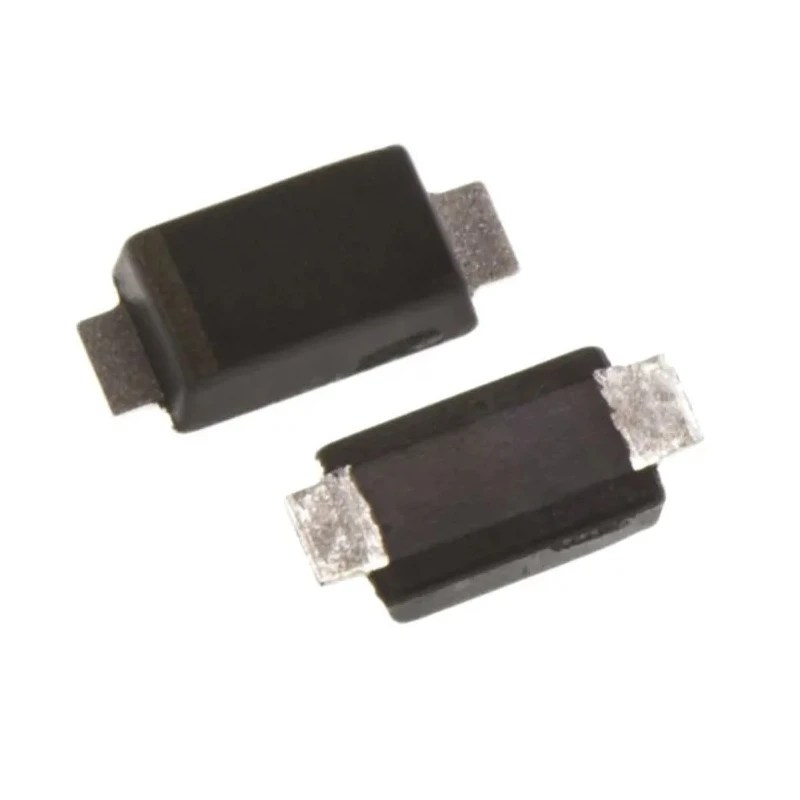

onsemi 200 V 2 A Soft Recovery Diode 2-Pin SOD-123FL NHP220SFT3G

onsemi NHP220SFT3G is a 200 V, 2 A soft recovery diode housed in a compact 2-pin SOD-123FL surface mount package. This diode delivers ultrafast switching performance with soft recovery characteristics, which reduce electromagnetic interference (EMI) and improve system efficiency.

The small footprint (area of approximately 5.22 mm²) and low profile (0.88 mm height) make it ideal for applications where board space and vertical clearance are limited. It excels in automotive and portable device applications requiring robust performance and space efficiency.

Key electrical specs include a maximum continuous forward current of 2 A, a peak reverse repetitive voltage of 200 V, and a peak reverse recovery time of 50 ns, enabling efficient high-speed switching and low switching losses. The device’s low forward voltage drop of 1 V helps in reducing power dissipation and improving system energy efficiency.

The NHP220SFT3G supports a wide operating temperature range from -65°C to 175°C, ensuring reliable operation under harsh conditions often encountered in automotive and industrial environments. It also complies with the AEC-Q101 standard, certifying its suitability for automotive electronics.

This diode is recommended for applications including output rectification in switching power supplies, LED lighting, freewheeling diode configurations where space is critical, engine control modules, infotainment systems, and other space-constrained electronic assemblies.

This diode supports a maximum continuous forward current of 2 amperes for reliable operation. The peak reverse repetitive voltage rating is 200 volts, enabling robust performance in high voltage conditions. A peak reverse recovery time of 50 nanoseconds helps minimize switching losses in power applications.

The device is designed for surface mount with a small low-profile footprint ideal for space-constrained applications. Wide operating temperature range from -65°C to 175°C ensures durability in automotive and industrial environments.

Features low forward voltage drop of 1 volt to improve energy efficiency in circuits. Complies with automotive standard AEC-Q101, making it suitable for automotive electronics. The diode configuration is single with 2 pins in an SOD-123FL package type.

Peak non-repetitive forward surge current is rated at 40 amperes for transient tolerance. Compact dimensions 2.9 mm length, 1.8 mm width, and 0.88 mm height make it suitable for portable electronic devices.

This product is designed for industrial, automotive, instrumentation, power supply, LED lighting, and electronic manufacturing applications. It is optimized for environments demanding compact, efficient, and reliable diodes with fast switching capability.
