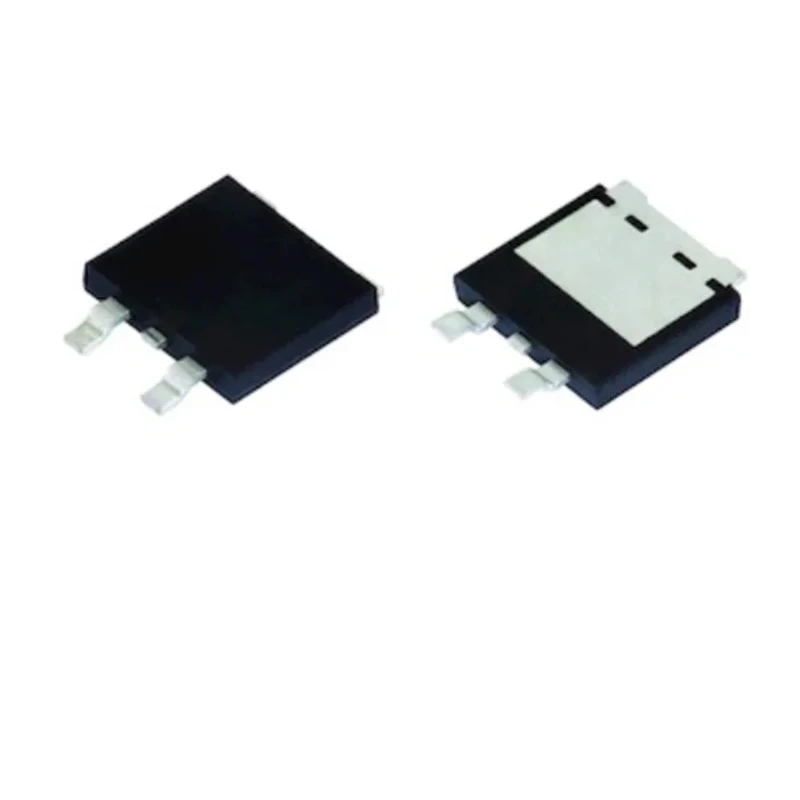

Vishay Schottky Diode 170 V 20 A Surface Mount TO-263AC Package 3-Pin D2PAK

Vishay V20D170CHM3/I is a high-performance Schottky diode designed for power applications with a maximum continuous forward current of 20 amperes and a peak repetitive reverse voltage of 170 volts. It is housed in a surface mount TO-263AC (D2PAK) package with 3 pins, making it suitable for compact electronic assemblies.

This diode features a low forward voltage drop of 0.9 V which minimizes power dissipation and improves efficiency. Its construction utilizes a 2x common cathode pair configuration, optimizing the device for use in fast switching circuits such as inverters and DC/DC converters. It withstands surge currents up to 150 A non-repetitively, providing robustness against transient events.

Operating reliably in a temperature range from -40°C to 175°C, it meets automotive standard AEC-Q101 certification, validating its durability for automotive electronic applications. Its compact physical dimensions of 10.2 mm length, 1.23 mm width, and 12.93 mm height facilitate easy integration into dense circuit boards.

The Vishay Schottky diode series offers low leakage current and a fast switching speed, which contribute to reduced power losses and improved thermal management in power rectification and protection circuits.

This product is widely used in industrial, automotive, commercial, and consumer electronics requiring efficient power rectification and polarity protection. It is especially suitable for use in high-frequency inverters, freewheeling circuits, and DC voltage conversion systems.

Environmentally compliant with RoHS standards, the diode is manufactured in China under stringent quality controls. Features a low forward voltage drop of 0.9 V reducing power losses. Capable of handling a maximum continuous forward current of 20 A.

Designed to operate within a temperature range of -40°C to 175°C. Equipped with a peak reverse repetitive voltage rating of 170 V for robustness. Includes automotive standard AEC-Q101 certification for reliability in automotive applications.

Compact dimensions with length 10.2 mm, width 1.23 mm, and height 12.93 mm. Constructed with 2x common cathode pair diode configuration ensuring efficient rectification. Peak non-repetitive forward surge current handling capability of 150 A for transient conditions.

Low leakage current enhancing efficiency in high frequency switching. Ideal for use in power inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits. Browse the extensive range of Vishay semiconductor components and Schottky diodes available at EnvMart for professional industrial and electronic applications.
