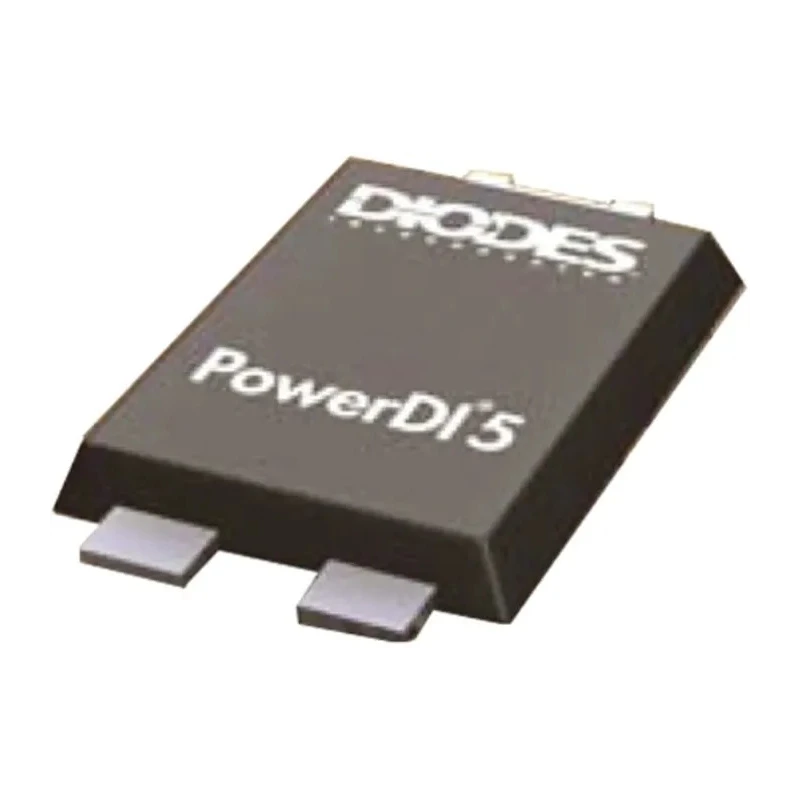

DiodesZetex General Purpose 100 V 12 A Schottky Barrier Diode PowerDI5 3-Pin SBR12U100P5-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 5.45mm |
| Model | SBR12U100P5-13 |
| Width | 4.05mm |
| Mount Type | Surface |
| Series | 12 A SCR |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 40mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 250A |
| Maximum Forward Voltage Vf | 710mV |
Key Features
- Surface mount type with PowerDI5 package ensures easy PCB integration.
- Current rating of 12 A supports robust power applications.
- Low forward voltage drop of 710 mV improves efficiency.
- Wide operating temperature range from -65°C to 150°C ensures reliability under thermal stress.
- Single diode configuration with 3-pin design maximizes circuit flexibility.
- Peak non-repetitive forward surge current up to 250 A handles transient overloads.
- Complies with FBI standards and AEC automotive requirements.
- Compact dimensions of 5.45 mm length, 4.05 mm width, and 1.15 mm height.
Product Description
DiodesZetex SBR12U100P5-13 is a high-performance Schottky Barrier Diode designed for general-purpose rectification in electronic and power systems. This 3-pin PowerDI5 package surface mount diode delivers a peak reverse repetitive voltage of 100 V and maximum continuous forward current of 12 A, combining efficiency with robustness.
With a low forward voltage of 710 mV, it minimizes power loss and heat generation, making it ideal for applications where efficiency and thermal management are critical. The diode supports a peak non-repetitive forward surge current of 250 A, providing resilience against transient surges.
Its wide operating temperature range from -65°C to 150°C and compliance with FBI and AEC automotive standards ensure stable operation in harsh industrial and automotive environments. The compact form factor (5.45 mm length, 4.05 mm width, and 1.15 mm height) facilitates integration into modern PCB layouts.
Typical applications include industrial power supplies, automotive electronics, and general semiconductor circuits requiring reliable rectification and protection. Surface mount PowerDI5 package supports automated assembly.
12 A continuous forward current suitable for medium power levels. 100 V peak reverse voltage protects circuits against voltage spikes. Low forward voltage drop for reduced conduction losses. Wide operating temperature range suitable for industrial use.
Single diode, 3-pin configuration for flexible circuit design. Complies with applicable automotive and industry standards. Compact dimensions for space-saving implementations. Explore more Schottky Diodes & Rectifiers at EnvMart for diverse semiconductor solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 12 A, making it suitable for medium power applications.
This model has a peak reverse repetitive voltage rating of 100 V, which helps protect circuits against voltage spikes.
The forward voltage drop is 710 mV, which contributes to reduced conduction losses and improved efficiency.
The dimensions of this diode are 5.45 mm in length, 4.05 mm in width, and 1.15 mm in height.
It operates within a temperature range of -65°C to 150°C, ensuring reliability under thermal stress.
This diode uses a PowerDI5 package, which is designed for surface mounting and facilitates easy PCB integration.
The peak non-repetitive forward surge current is rated at 250 A, allowing it to handle transient overloads effectively.
Yes, it complies with AEC automotive standards, making it suitable for automotive applications.
It features a single diode configuration with a 3-pin design, maximizing circuit flexibility.
The diode complies with FBI standards, ensuring it meets specific industrial requirements.
Typical applications include industrial power supplies, automotive electronics, and general semiconductor circuits requiring reliable rectification.
The peak reverse current rating is 40 mA, which is important for understanding its performance under reverse bias conditions.
