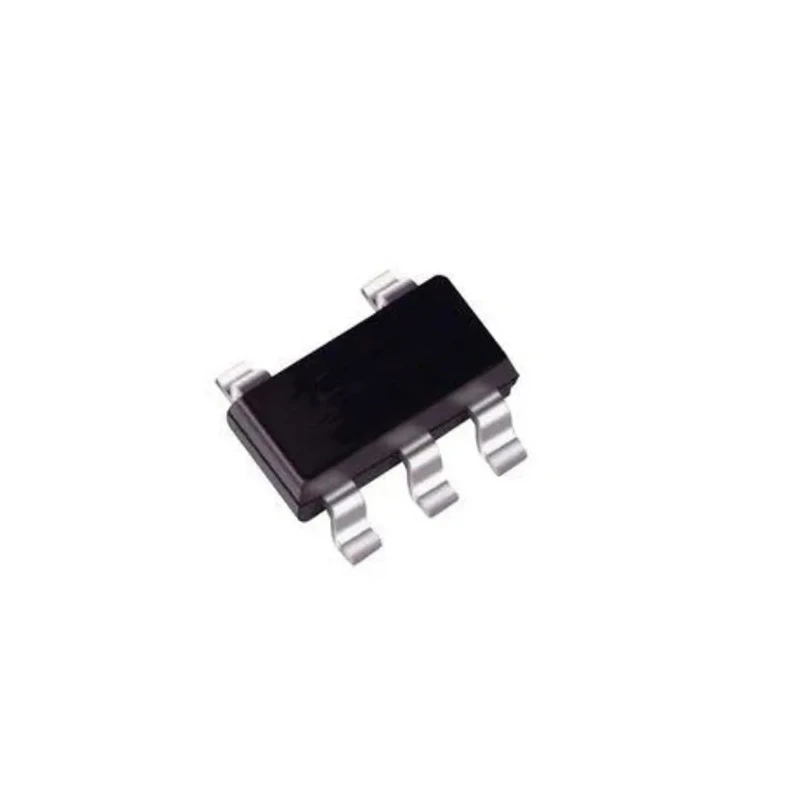

DiodesZetex 1 1-Input Inverter Schmitt Trigger Logic Gate, Surface Mount 5-Pin SOT-323, AHC Logic Family 74AHCT1G04QSE-7

DiodesZetex 74AHCT1G04QSE-7 is a robust and automotive-compliant 1 1-Input Inverter Schmitt Trigger logic gate designed for high-performance digital signal processing in electronic circuits. It is housed in a compact 5-pin Surface Mount Technology (SMT) SOT-323 package, enabling installation in space-constrained printed circuit boards.

The device is a member of the AHC logic family and operates reliably within a wide voltage range of 2V to 5.5V. Its operating temperature rating from -40°C to +125°C makes it suitable for harsh automotive and industrial environments. The integrated Schmitt Trigger input enhances noise immunity by providing hysteresis on the input signal, essential for stable digital switching in noisy circuitry.

Featuring a push-pull output type, the inverter gate supplies balanced drive capability with a maximum high-level output current of -8mA and a maximum low-level output current of 8mA. Its quick response time includes a maximum propagation delay of 10 nanoseconds, ensuring efficient signal inversion and timing in digital logic applications.

The component complies with the automotive standard AEC-Q100, guaranteeing high quality and reliability for automotive system integration. The small package dimensions of 2.2mm length and 1mm height enable the design of compact and densely packed electronic modules.

This inverter gate is ideal for industrial automation, automotive electronics, digital signal processing, and embedded systems where reliable logic gating is required under variable environmental conditions. It supports surface mount assembly processes for modern electronics manufacturing.

Operates from -40°C to +125°C for extended automotive temperature ranges. Wide supply voltage range of 2V to 5.5V enables versatile application usage. Schmitt Trigger input type improves noise immunity and signal stability.

Push-pull output ensures balanced and strong drive capability. Fast switching with a maximum 10ns propagation delay suits digital logic circuits. AEC-Q100 automotive qualification supports reliability in critical systems.

Compact 5-pin SOT-323 surface mount package for space-saving PCB designs. Single logic element simplifies circuit design for inverter functionality.

The product is categorized under Electronics & Electricals > Semiconductor > Logic Gates in EnvMart's catalog. Detailed technical specifications and images are provided to assist professional buyers and engineers in selecting the right component for their applications.

Explore similar DiodesZetex logic ICs and components in EnvMart's digital electronic components collection for comprehensive sourcing solutions.
