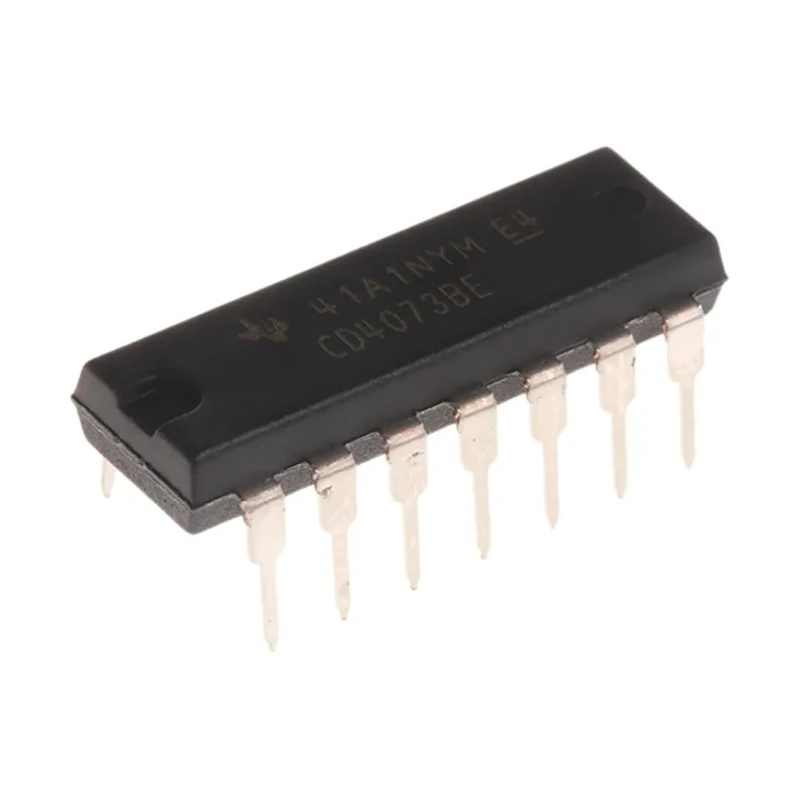

Texas Instruments 3 3-Input AND Logic Gate, 14-Pin PDIP CD4073BE

Texas Instruments CD4073BE is a reliable 3 3-Input AND Logic Gate housed in a 14-Pin PDIP package, designed for through-hole mounting with CMOS input type, making it suitable for various industrial and electronic applications.

This logic gate IC features three individual AND gates, each having three inputs, enabling complex logic functions within electronic circuits.

It operates efficiently over a broad supply voltage range from 3 V to 18 V, accommodating diverse power requirements. The device demonstrates a maximum propagation delay of 90 ns under typical capacitive load, ensuring timely output switching for digital signal processing.

Designed to function in a wide operating temperature range from -55°C to 125°C, the CD4073BE is suitable for demanding industrial environments where temperature fluctuations are common.

The maximum high-level output current is -4.2 mA while the maximum low-level output current is 4.2 mA, aligning with standard CMOS logic levels. With a compact size of 19.3 mm length and 4.57 mm height, it can be conveniently incorporated into electronic hardware.

The device lacks Schmitt trigger input, which suits it for standard noise-free logic applications.

Not certified for automotive standards, it is primarily intended for general-purpose logic gate applications in electronic devices, laboratory setups, and industrial control systems.

This device contains 3 elements with 3 inputs per gate. Operates over a wide voltage range from 3 V to 18 V. Maximum propagation delay time at capacitive load is 90 ns. Designed for an operating temperature range from -55°C to 125°C.

Maximum high-level output current is -4.2 mA, and maximum low-level output current is 4.2 mA. The logic family is 4000 CMOS series. Measures 19.3 mm in length and 4.57 mm in height. Non-Schmitt trigger input type provides standard logic operation.

Package type is PDIP with 14 pins for easy integration. Automotive standard compliance is not met; suitable for general electronic applications. Ideal for use in industrial, laboratory, electronic circuit design, prototyping, and electronic instrumentation projects where dependable AND logic gate operation is required.
