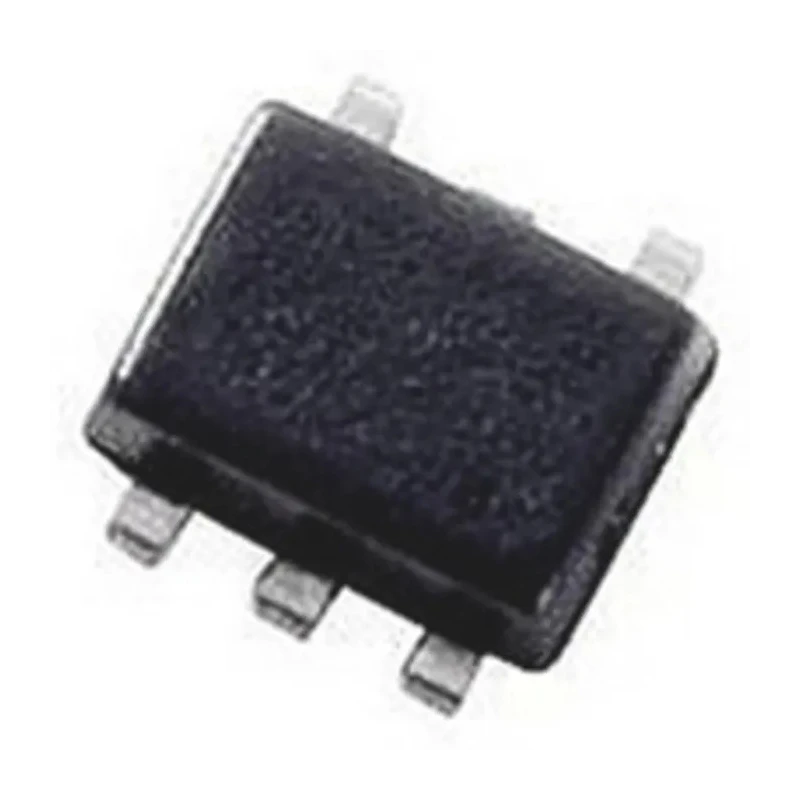

DiodesZetex 1 1-Input Non-Inverting Buffer 5-Pin SOT-553 Logic IC 74LVC1G07Z-7

DiodesZetex 74LVC1G07Z-7 is a 1 1-input non-inverting buffer logic IC designed for use in low-voltage CMOS applications. Packaged in a 5-pin SOT-553 surface mount device, it offers a single gate with one input, ideal for digital signal buffering and logic level translation in compact electronic circuits.

This buffer operates over a supply voltage range of 1.65 V to 5.5 V, ensuring compatibility with diverse voltage environments including LVTTL and TTL at the input with LVCMOS output levels. The device features a maximum propagation delay of 4 nanoseconds, making it suitable for high-speed logic operations.

Its operating temperature range from -40°C to 85°C enables usage in various industrial and commercial electronic devices demanding reliable performance under different environmental conditions. With maximum output currents of -32mA high level and 32mA low level, this IC provides robust drive capabilities.

The package dimensions are optimized at 1.7mm in length and 620μm in height, helping designers maintain compact PCB layouts. The device does not incorporate a Schmitt Trigger input and utilizes an open drain output type.

This IC is manufactured in China and complies with standard semiconductor quality norms but does not carry specific automotive or other specialized standards certifications. Non-inverting buffer logic function with single input per gate.

Compact 5-pin SOT-553 surface mount package for space saving. Operating temperature from -40°C to 85°C for reliable performance. Maximum propagation delay time of 4ns ensuring fast switching. Supports input LVTTL/TTL and output LVCMOS compatibility.

Maximum high level output current of -32mA and low level 32mA output current. Open Drain output type without Schmitt Trigger input. Low-voltage CMOS logic family (LVC) suitable for various electronics applications. Compact physical dimensions: 1.7mm length and 620μm height.

This product is ideal for industrial electronic applications, power and control circuit designs, and embedded systems requiring efficient logic buffering and signal conditioning. For more devices and components, browse the Semiconductors Logic Gates category on EnvMart.
